HPE Integrity BL860c i4 - blade no CPU - 0 GB - no

Images Manuals

Images for illustrative purposes

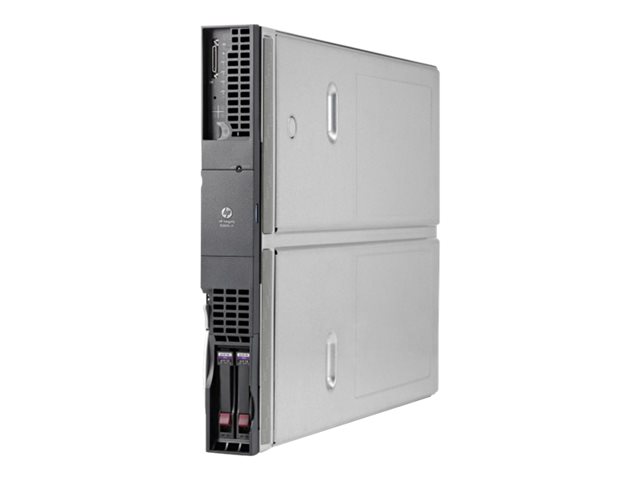

HPE Integrity BL860c i4

Name: HPE Integrity BL860c i4
Brand: HPE
SKU: ECE2627345
Price: 5515.41 EUR
Availability: OutOfStock

View all HPE Servers - Visit the HPE Store (AM377A) - (ECE2627345)

Model: HPE Integrity

Integrity BL860c i4 - Server - blade - 2-way - no CPU - RAM 0 GB - SAS - hot-swap 2.5" bay(s) - no HDD - ATI ES1000 - GigE, 10 GigE - monitor: none

Speed up Mission-critical Applications
Scale up to Increase Performance
Improve Reliability and Increase Manageability

FREE Delivery on orders over €250

**Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

0 Available to Ship
Restock 06-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€5515.41 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Do you need a high performance blade server that is designed for database, Java, and technical computing applications? The HPE Integrity BL860c i4 Server Blade is a two-socket full-height blade featuring the latest Intel Itanium processor 9500 series supported by up to 384 GB memory (24 DIMM slots) and features 4 FlexFabric Converged Network Adapter (CNA) ports standard. The HPE Integrity BL860c i4 also features the unique HPE Blade Link technology which combines multiple blades to create 2-, 4- and 8-socket systems, providing greater scalability and flexibility. The HPE Integrity BL860c i4 Server Blade can coexist with both HPE ProLiant Server Blades and HPE Storage Blades within the HPE BladeSystem c-Class Enclosure.

Features Summary

Speed up Mission-critical Applications
The HPE Integrity BL860c i4 Server Blade comes in one or two, 4-core and 8-core, Intel Itanium Processor 9500 Series that provide up to 16 cores of computing power for the most demanding mission-critical workload requirements.
Four embedded HPE FlexFabric 10 Gb converged network adapter ports that deliver extensive bandwidth for network-intensive applications.
High-performance HPE Smart Array Controller for hardware RAID 0 and 1 with read-only 512 MB cache that accelerates time to rebuild.
Scale up to Increase Performance
The HPE Integrity BL860c i4 Server Blade includes the HPE Blade Link technology, which enables linear scalability from 2- to 4- to 8-socket server blades to meet your changing business demands.
Four embedded HPE Virtual Connect FlexFabric connections for connectivity to both network and storage, which reduces the need for additional I/O mezzanine cards.
24 dual in-line memory module (DIMM) slots providing up to 384 GB of DDR3 low-voltage memory with double-chip spare, enabling a large memory footprint for demanding applications.
Two disks, with a choice of hot plug small form factor (SFF) serial-attached SCSI (SAS) hard disk drives, or solid state disks (SSD).
Optionally you can add up to three mezzanine cards to provide support for Fibre Channel over Ethernet (FCoE), SAS RAID, Fibre Channel, and others.
Improve Reliability and Increase Manageability
HP-UX 11i v3 provides a proven operating environment delivering the industry's most resilient UNIX platform so your mission-critical applications are running and secure without compromise.
HP-UX vPars that dynamically adjust and share resources, and require very little overhead.
HPE Integrity Virtual Machines, included with the Matrix OE, that offer the benefits of increased resource utilization and flexibility (shared processor and I/O devices), and rapid deployment.
HPE Integrity Integrated Lights-Out 3 (iLO 3) remote management provides built-in core management functions to simplify setup, health monitoring, and remote administration. Every HPE Integrity BL860c i4 Server Blade ships with an HPE Integrity iLO 3 Advanced Pack license preinstalled.

Specification Summary

Product Description

HPE Integrity BL860c i4 - blade no CPU - 0 GB - no HDD

Type

Server - blade - administrator password

Server Scalability

2-way

Processor

No CPU

RAM

0 GB (installed) / 384 GB (max) - DDR3 SDRAM - ECC

Storage Controller

RAID (SAS) (Smart Array P410i)

Server Storage Bays

Hot-swap 2.5"

Hard Drive

No HDD

Optical Storage

No optical drive

Graphics Controller

ATI ES1000

Video Memory

128 MB

Networking

1GbE, 10GbE

Dimensions (WxDxH)

5.14 cm x 48.51 cm x 36.63 cm

Specifications

General

Type

Server

Recommended Use

Corporate business

Product Form Factor

Blade

Server Scalability

2-way

Hot-Swap Bays Qty

Processor / Chipset

CPU

No CPU

Max CPU Qty

CPU Upgradability

Upgradable

RAM

Installed Size

0 GB (installed) / 384 GB (max)

Technology

DDR3 SDRAM - ECC

Form Factor

DIMM 240-pin

Slots

24 (Total) / 24 (empty)

Features

Registered

Hard Drive

Type

No HDD

Storage Controller

Type

RAID - integrated

Controller Interface Type

SAS

Storage Controller Name

Smart Array P410i

RAID Level

RAID 0, RAID 1, RAID 10

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Type

Integrated

Graphics Processor

ATI ES1000

Video Memory

128 MB

Networking

Interface (Bus) Type

PCI Express x4

Ethernet Ports

4 x 10 Gigabit Ethernet

Ethernet Controller

4 x HP NC553i

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Controller

Integrated Lights-Out 3

Features

Wake on LAN (WoL)

Compliant Standards

IEEE 802.3x, IEEE 802.3ap

Expansion / Connectivity

Bays

2 (total) / 2 (free) x hot-swap 2.5" SFF

Slots

2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 240-pin ¦ 3 (total) / 3 (free) x expansion slot

Interfaces

4 x LAN (10Gigabit Ethernet) ¦ 1 x management

Miscellaneous

Features

Administrator password

Compliant Standards

ACPI 2.0

Operating System / Software

OS Certified

HP-UX BOE 11i v3, HP-UX DCOE 11i v3, HP-UX VSOE 11i v3, HP-UX HAOE 11i v3

Dimensions & Weight

Width

5.14 cm

Depth

48.51 cm

Height

36.63 cm

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

15 - 80% (non-condensing)
