EAN / GTIN:
5397184936375
Bundled Services
3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Product Form Factor
Micro
Built-in Devices
Internal aerial
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
CPU
Intel Core Ultra 5 (Series 2) 235
Clock Speed
3.4 GHz (P-core) / 2.9 GHz (E-core)
Max Turbo Speed
5 GHz (P-core) / 4.4 GHz (E-core)
Processor Main Features
14 Threads, 65W CPU
Neural Processor Unit (NPU)
Neural Processor Unit (NPU)
Intel AI Boost
NPU Performance Up To (TOPS)
13 TOPS
Total Processor Performance Up To (TOPS)
27 TOPS
AI Datatype Support on NPU
INT8
AI Software Frameworks Supported by NPU
DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Windows Studio Effects Support
Yes
Cache Per Processor
24 MB
Installed Size
16 GB (installed) / 64 GB (max)
Technology
DDR5 SDRAM - non-ECC
Effective Memory Speed
5600 MT/s
Rated Memory Speed
5600 MT/s
Form Factor
SO-DIMM 262-pin
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 16 GB
Interface Type
PCI Express 4.0
Features
NVM Express (NVMe), triple-level cell (TLC)
Graphics Processor
Intel Graphics Shared Video Memory (UMA) - up to 6 TOPS
Video Interfaces
DisplayPort
Compliant Standards
High Definition Audio
Type
Mouse (on selected markets only), keyboard (on selected markets only)
Keyboard Name
Dell KM5221W Pro Wireless Keyboard and Mouse Combo
Interface (Bus) Type
M.2 2230
Ethernet Controller
Intel I219-LM
Wireless LAN Supported
Yes
Wireless NIC
Intel Wi-Fi 6E AX 211
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E)
Features
Dual stream (2x2)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Slots
2 (total) / 1 (free) x M.2 Card - 2230/2280 (for SSD) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
Interfaces

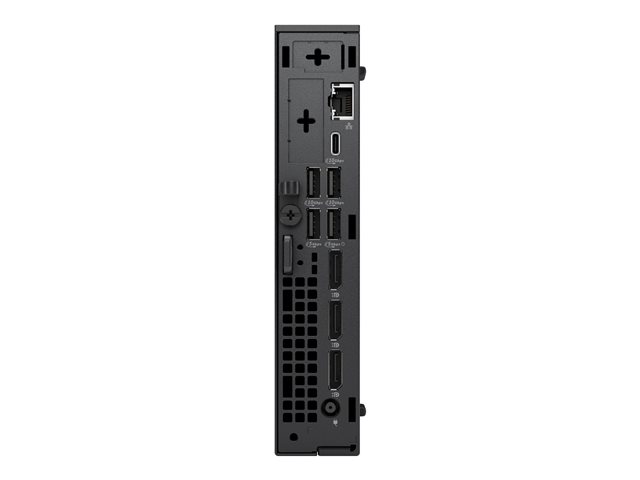

1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 2 (one of them with PowerShare) ¦ 2 x USB 3.2 Gen 1 (one of them supports SmartPower On) ¦ 1 x headphones/microphone ¦ 3 x DisplayPort 1.4a
Theft/Intrusion Protection
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Security Slot Type
Kensington security slot
Pricing Type
Build To Stock (BTS)
Device Type
Power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Operating System / Software
OS Provided
Windows 11 Pro
Software
Activate your Microsoft 365 for a 30 day trial
Sustainability Information
EPEAT Compliant
EPEAT Gold
ENERGY STAR Certified
Yes
Carbon Footprint
80.7 kg carbon emissions
Manufacturing (kg CO2e)
45.0306
Logistics (kg CO2e)
2.2596
Total Carbon w/o Use Phase (kg CO2e)
47.8551
PAIA Version
GaBi version 1, 2024
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
