Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Localisation
Language: English / region: United Kingdom
CPU
Intel Core i5 (14th Gen) i5-14500
Clock Speed
2.6 GHz (P-core) / 1.9 GHz (E-core)
Max Turbo Speed
5 GHz (P-core) / 3.7 GHz (E-core)
CPU Upgradability
Upgradable
Processor Main Features
Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 20 Threads
Installed Size
L3 Cache - 24 MB
Cache Per Processor
24 MB
Installed Size
8 GB (installed) / 64 GB (max)
Effective Memory Speed
5600 MT/s
Rated Memory Speed
5600 MT/s
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 8 GB
Interface Type
PCI Express
Features
NVM Express (NVMe)
Graphics Processor
Intel UHD Graphics 770 Dynamic Video Memory Technology
Video Interfaces
DisplayPort, HDMI
Max Sampling Rate
192 kHz
Compliant Standards
High Definition Audio
Interface (Bus) Type
M.2 2230
Ethernet Controller
Realtek RTL8111K-CG
Wireless LAN Supported
Yes
Wireless NIC
Realtek RTL8852BE-VT
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4
Remote Management Protocol
SNMP 2
Features
Dual stream (2x2), PXE 2.1 support, Wake on LAN (WoL)
Compliant Standards
IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, Wi-Fi CERTIFIED
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 ¦ 1 (total) / 0 (free) x M.2 Card - 2242/2280 (for internal storage) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)

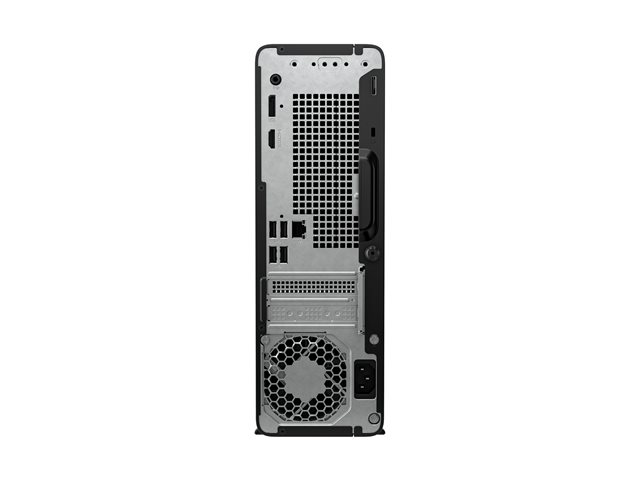

Interfaces
1 x USB-C 3.2 Gen 2 (1 in front) ¦ 3 x USB 3.2 Gen 1 - Type A (3 in front) ¦ 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 4 x USB 2.0 - Type A ¦ 1 x HDMI ¦ 1 x DisplayPort 1.4a ¦ 1 x audio line-out/line-in ¦ 1 x LAN (Gigabit Ethernet)
Theft/Intrusion Protection
Security lock slot (cable lock sold separately), integrated accessories cable lock, padlock loop
Security Slot Type
Kensington security slot
Compliant Standards
RoHS, WEEE, low halogen, TUV Ultra Low Noise Certification, CEL, MEPS, Korea MEPS, Vietnam MEPS, IT ECO Declaration
Manufacturer Selling Program
HP Smart Buy
Voltage Required
AC 90-264 V (50/60 Hz)
Power Factor Correction
Yes (active)
Operating System / Software
OS Provided
Windows 11 Pro English
Software
HP Documentation, HP Support Assistant, McAfee LiveSafe (1 year subscription), HP Setup Integrated OOBE, HP System Event Utility
Sustainability Information
ENERGY STAR Certified
Yes
Dimensions & Weight (Shipping)
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
15 - 80% RH(non-condensing)
