HPE ProLiant DL380 Gen11 - rack-mountable Xeon Sil

Images Manuals

Images for illustrative purposes

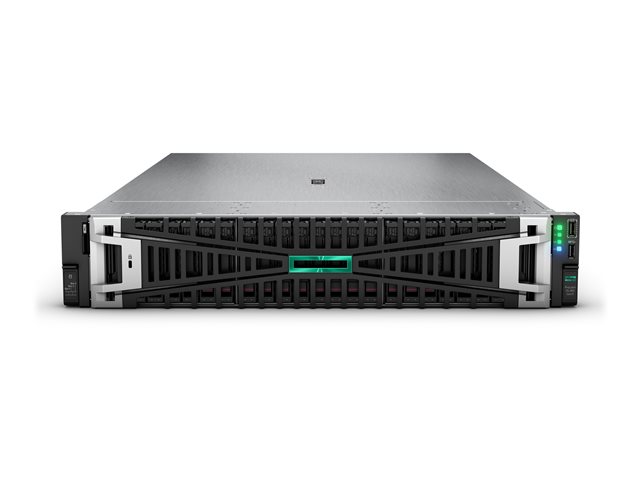

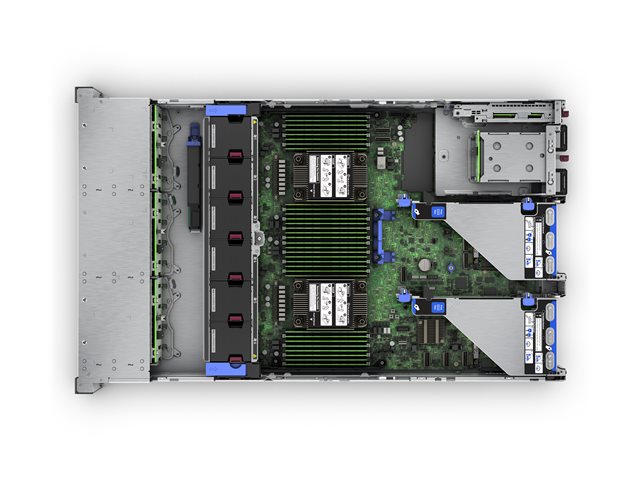

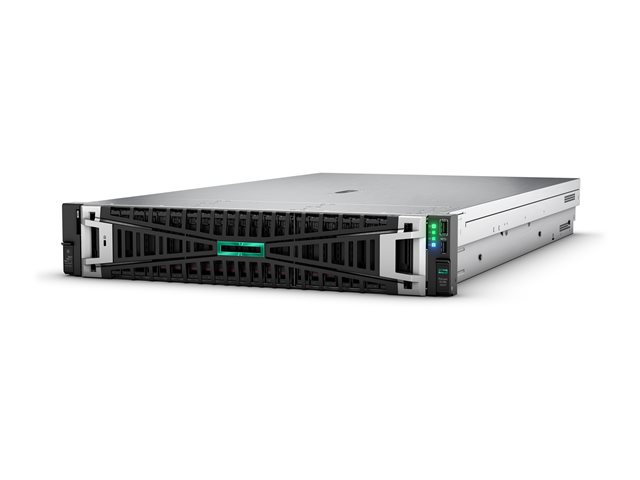

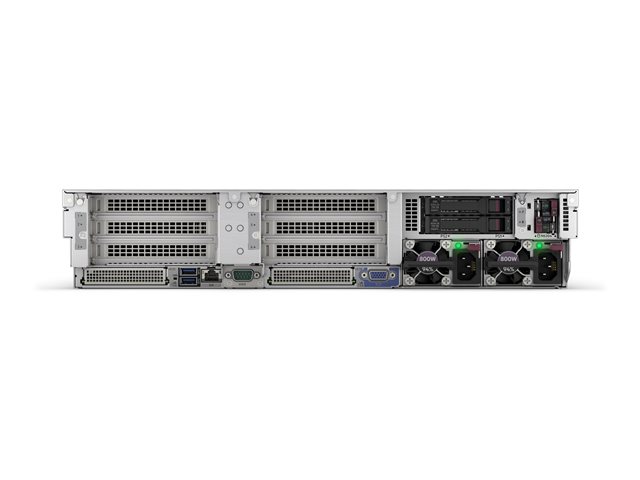

HPE ProLiant DL380 Gen11

Name: HPE ProLiant DL380 Gen11
Brand: HPE
SKU: MMECN94939
Price: 10936.09 EUR
Availability: InStock

View all HPE Servers - Visit the HPE Store (P81786-425) - (MMECN94939)

Model: HPE ProLiant

ProLiant DL380 Gen11 - rack-mountable Xeon Silver 4516Y+ 2.2 GHz - 64 GB - SSD 2 x 480 GB

Efficient storage capabilities
Robust expansion options
Effective cooling and operation
Integrated management tools
Enhanced security features

FREE Delivery on orders over €250

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED. **Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

5 Available to Ship
Order within 12Hrs 55Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€12637.28~~

€10936.09 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE ProLiant DL380 Gen11 is designed to excel in demanding data center environments, offering flexibility and performance to meet diverse workload requirements. With a Xeon Silver processor and support for DDR5 SDRAM, this server allows for improvements in memory speed and capacity. Its rack-mountable chassis is optimized for space efficiency while providing easy access to components, ensuring effective cooling management within server racks. The HPE ProLiant DL380 Gen11 features hot-swap server storage bays compatible with SATA, SAS, and NVMe interfaces. The server is designed for scalability with two-way configuration support and plenty of expansion options, including available bays and slots. Additionally, its integrated management tools streamline remote administration and enhance security with the Trusted Platform Module (TPM 2.0), ensuring system integrity.

Specification Summary

Product Description

HPE ProLiant DL380 Gen11 - rack-mountable Xeon Silver 4516Y+ 2.2 GHz - 64 GB - SSD 2 x 480 GB

Type

Server - rack-mountable

Height (Rack Units)

Localisation

Region: Europe

Server Scalability

2-way

Processor

1 x Intel Xeon Silver 4516Y+ / 2.2 GHz (up to 3.7 GHz, (24-core)

Processor Main Features

Intel Turbo Boost Technology 2, Hyper-Threading Technology

Cache Memory

45 MB L3 Cache

Cache Per Processor

45 MB

RAM

64 GB (installed) / 8 TB (max) - DDR5 SDRAM

Storage Controller

RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM)

Server Storage Bays

Hot-swap 2.5"

Hard Drive

2 x SSD 480 GB - SATA 6Gb/s

Optical Storage

No optical drive

Video Memory

16 MB

Networking

1GbE, 10GbE

Power Redundancy

Yes

OS Provided

No operating system

Software Included

HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI

Dimensions (WxDxH)

44.8 cm x 72.7 cm x 8.75 cm

Weight

16 kg

Environmental Standards

ENERGY STAR Qualified

Manufacturer Warranty

Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Specifications

EAN / GTIN:

0190017795249

General

Type

Server

Product Form Factor

Rack-mountable - 2U

Built-in Devices

Led panel

Embedded Security

Trusted Platform Module (TPM 2.0) Security Chip

Server Scalability

2-way

Hot-Swap Bays Qty

Localisation

Region: Europe

Processor / Chipset

CPU

Intel Xeon Silver 4516Y+

Clock Speed

2.2 GHz

Max Turbo Speed

3.7 GHz

Number of Cores

24-core

CPU Qty

Max CPU Qty

CPU Upgradability

Upgradable

Processor Main Features

Intel Turbo Boost Technology 2, Hyper-Threading Technology

Chipset Type

Intel C741

Cache Memory

Installed Size

L3 Cache - 45 MB

Cache Per Processor

45 MB

RAM

Installed Size

64 GB (installed) / 8 TB (max)

Technology

DDR5 SDRAM

Effective Memory Speed

2200 MHz

Rated Memory Speed

2800 MHz

Form Factor

DIMM 288-pin

Slots

32 (Total) / 30 (empty)

Features

HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only

Configuration Features

2 x 32 GB

Hard Drive

Type

SSD

Capacity

2 x 480 GB

Interface Type

SATA 6Gb/s

Features

HPE Multi Vendor, Read Intensive

Storage Controller

Type

1 x RAID - OCP

Controller Interface Type

Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)

Storage Controller Name

HPE MR408i-o Gen11 SPDM

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

Buffer Size

4 GB

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Video Memory

16 MB

Video Interfaces

VGA

Networking

Ethernet Ports

2 x 10 Gigabit Ethernet

Ethernet Controller

Broadcom BCM57416

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet, Ethernet, Fast Ethernet

Remote Management Protocol

SNMP 3, IPMI 2.0, SMASH CLP

Remote Management Controller

Integrated Lights-Out 6

Features

Wake on LAN (WoL), PXE support

Expansion / Connectivity

Bays

8 (total) / 6 (free) x hot-swap 2.5" SFF

Slots

1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) ¦ 2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0

Interfaces

1 x USB 3.0 (1 in front) (HPE iLO Service Port) ¦ 4 x USB 3.0 (2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45

Miscellaneous

Included Accessories

4 standard fans

Compliant Standards

AES, ACPI 6.3, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, Active Directory v1.0, WEEE 2002/95/EC, FIPS 140-2, SMBIOS 3.2, Redfish API, Triple DES, UEFI 2.7

Power

Device Type

Power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Installed Qty

Max Supported Qty

Voltage Required

AC 100-240 V

Power Provided

1000 watt

80 PLUS Certification

80 PLUS Titanium

Operating System / Software

OS Provided

No operating system

OS Certified

Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, VMware ESXi 8.0 update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Micro 5.3, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9

Software

HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI

Sustainability Information

ENERGY STAR Certified

Yes

ENERGY STAR Version

3.0

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Dimensions & Weight

Width

44.8 cm

Depth

72.7 cm

Height

8.75 cm

Weight

16 kg

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 90% RH (non-condensing)
