ASUS NUC 15 Pro+ RNUC15CRSU500003 - mini PC Core U

Images Manuals

Images for illustrative purposes

ASUS NUC 15 Pro+ RNUC15CRSU500003

Name: ASUS NUC 15 Pro+ RNUC15CRSU500003
Brand: ASUSTEK
SKU: MMECN46142
Price: 582.81 EUR
Availability: InStock

View all ASUSTEK BareBone Systems - Visit the ASUSTEK Store (90AR00P3-M00060) - (MMECN46142)

Model: ASUS NUC

ASUS NUC 15 Pro+ RNUC15CRSU500003 - mini PC Core Ultra 5 225H 1.7 GHz - 0 GB - no HDD

High-performance processor
Advanced connectivity options
Enhanced graphics capabilities
Versatile networking support
Expandable memory options

FREE Delivery on orders over €250

**Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

30 Available to Ship
Order within 21Hrs 6Mins for: FREE Delivery (9 Jun or 10 Jun)

€582.81 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ASUS NUC 15 Pro+ is designed to provide performance in an ultra small form factor. With a robust Intel Core Ultra 5 processor, featuring 14 cores and a maximum clock speed of 4.9 GHz, this mini PC delivers efficient multitasking capabilities, suitable for various applications. The Intel Arc 130T graphics processor supports HDMI output, providing clear visuals for demanding tasks. Additionally, the system is equipped with multiple connectivity options, including Thunderbolt 4 and USB 3.2 Gen 2, ensuring fast data transfer and versatile connections.

With up to 18 MB of cache memory and support for DDR5 SDRAM, the ASUS NUC 15 Pro+ is engineered for responsiveness and speed. It has the flexibility of expansion with two empty RAM slots, allowing for future upgrades. Networking capabilities include support for Wi-Fi 7 and Bluetooth 5.4, ensuring high-speed Internet and seamless wireless connectivity. The secure design features a Kensington security slot for added protection. This mini PC is ready to handle various tasks while maintaining a small footprint.

Specification Summary

Product Description

ASUS NUC 15 Pro+ RNUC15CRSU500003 - mini PC Core Ultra 5 225H 1.7 GHz - 0 GB - no HDD

Type

PC barebone - mini PC

Processor

1 x Intel Core Ultra 5 (Series 2) 225H / 1.7 GHz (up to 4.9 GHz, (14-core)

Neural Processor Unit (NPU)

Intel AI Boost - up to 13 TOPS

Cache Memory

18 MB

Cache Per Processor

18 MB

RAM

0 GB (installed) / 96 GB (max) - DDR5 SDRAM

Hard Drive

No HDD

Optical Storage

No optical drive

Graphics Controller

Intel Arc Graphics 130T - up to 63 TOPS

Networking

1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6, Bluetooth, Wi-Fi 7

OS Provided

No operating system

Colour

Silver

Dimensions (WxDxH)

14.4 cm x 11.2 cm x 4.2 cm

Weight

600 g

Specifications

EAN / GTIN:

0197105950269

General

Type

PC barebone

Product Form Factor

Mini PC

Embedded Security

Firmware Trusted Platform Module (TPM) Security Chip

Colour

Silver

Processor / Chipset

CPU

Intel Core Ultra 5 (Series 2) 225H

Clock Speed

1.7 GHz (P-core) / 1.3 GHz (E-core)

Max Turbo Speed

4.9 GHz (P-core) / 4.3 GHz (E-core)

Number of Cores

14-core

CPU Qty

Max CPU Qty

Neural Processor Unit (NPU)

Intel AI Boost

NPU Performance Up To (TOPS)

13 TOPS

Total Processor Performance Up To (TOPS)

83 TOPS

AI Datatype Support on NPU

INT8

Sparsity Support

Yes

AI Software Frameworks Supported by NPU

DirectML, OpenVINO, WebNN, WindowsML, ONNX RT

Windows Studio Effects Support

Yes

Cache Memory

Installed Size

18 MB

Cache Per Processor

18 MB

RAM

Installed Size

0 GB (installed) / 96 GB (max)

Technology

DDR5 SDRAM

Form Factor

SO-DIMM 262-pin

Slots

2 (Total) / 2 (empty)

Hard Drive

Type

No HDD

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

Intel Arc Graphics 130T - up to 63 TOPS

Video Interfaces

HDMI

Networking

Wireless LAN Supported

Yes

Wireless NIC

Intel WI-FI 7 BE201

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)

Expansion / Connectivity

Slots

1 (total) / 1 (free) x M.2 Card - 2280 ¦ 1 (total) / 1 (free) x M.2 Card - 2242

Interfaces

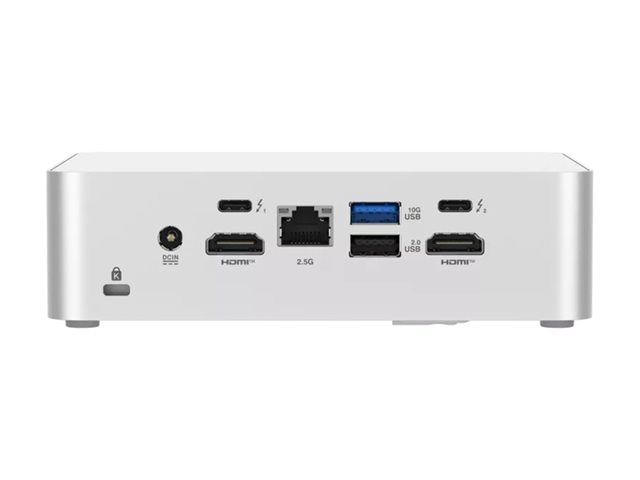

1 x USB 3.2 Gen 2x2 (1 front) ¦ 3 x USB 3.2 Gen 2 (2 front, 1 rear) ¦ 2 x HDMI (supports 4K@60Hz) ¦ 2 x Thunderbolt 4/USB4/DisplayPort 2.1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 2.0

Miscellaneous

Theft/Intrusion Protection

Security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

VESA Mounting Interface

VESA

Power

Device Type

Power adapter

Power Provided

120 watt
