Brother RuggedJet RJ-4230B - receipt printer - B/W

Images Manuals

Images for illustrative purposes

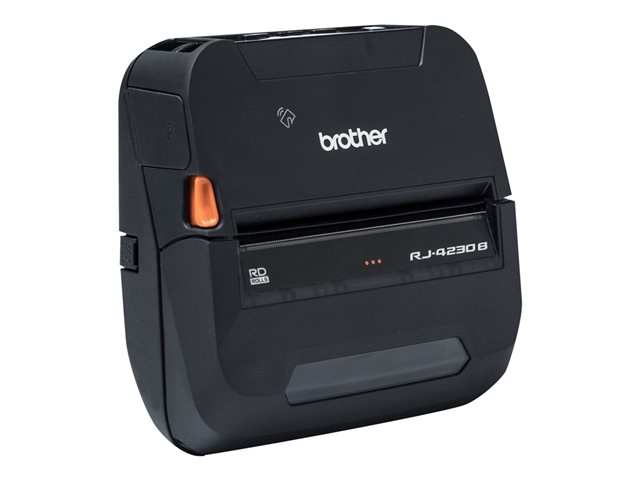

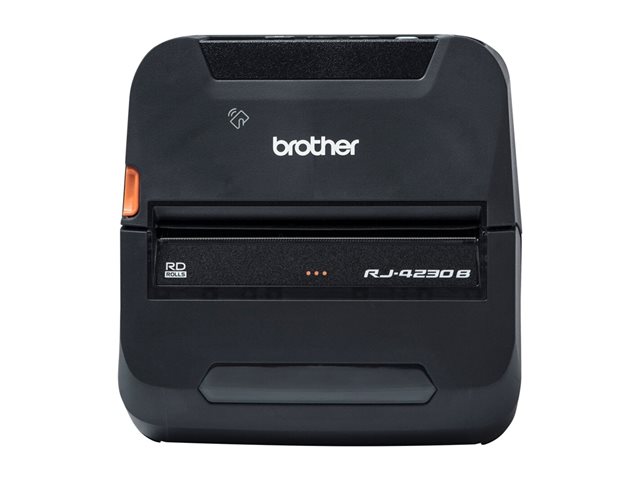

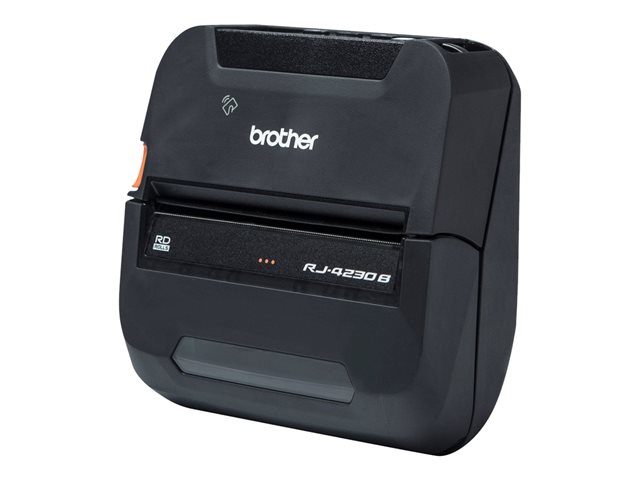

Brother RuggedJet RJ-4230B

Name: Brother RuggedJet RJ-4230B
Brand: BROTHER
SKU: MME5838027
Price: 643.87 EUR
Availability: OutOfStock

View all BROTHER Receipt and Other Printers - Visit the BROTHER Store (RJ4230BZ1) - (MME5838027)

Model: Brother RuggedJet

RuggedJet RJ-4230B - receipt printer - B/W - direct thermal

Compact
Rugged
Powerful
Easy to use
Stay connected
Versatile

FREE Delivery on orders over €250

Note: All Brother Printers/Scanners come with 1 Year Standard Warranty.

0 Available to Ship
Restock 08-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€643.87 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The RJ-4230B enables field based workers to print 4" sized high quality documents and labels in tough conditions. Fast, light and tough, this portable printer is easy to use and ideal for printing customer invoices, on-the-spot notices or fines, shipping labels and statements of work.

As well as featuring a compact robust design, the printer is packed with features. Offering a fast print speed of 5ips/127mm per second, the machine also offers a wide range of connectivity options including USB, serial and wireless.

With direct thermal technology there is no ink or toner required, the printer is perfect for workers on the go. The machine comes with IP54 certification (an ingress protection rating, which offers protection against dust and water sprayed from all directions), has undergone 6" drop tests and weighs just 850g, ensuring employees aren't struggling with bulky kit.

Specification Summary

Product Description

Brother RuggedJet RJ-4230B - receipt printer - B/W - direct thermal

Printer Type

Receipt printer - direct thermal - B/W

Form Factor

Portable

Weight

850 g

Max Media Size

Roll (11.4 cm)

Min Media Size (Custom)

45 mm

Max Media Size (Custom)

114 mm

Print Speed

Up to 127 mm/sec - max speed

Max Resolution (B&W)

203 x 203 dpi

Max Resolution Class (B&W)

203 x 203 dpi

Interface

USB 2.0, Bluetooth 4.2

RAM Installed (Max)

256 MB

Flash Memory Installed (Max)

64 MB

Language Simulation

EPSON ESC/P, ZPL II, EPSON ESC/P Raster

Media Type

Receipt labels, die cut labels

Networking

Print server

Battery

Lithium Ion

System Requirements

Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)

Dimensions (WxDxH)

15.3 cm x 15.9 cm x 6.8 cm

Specifications

EAN / GTIN:

4977766788717

General

Printer Type

Receipt printer - direct thermal - monochrome

Printer

Print Speed

Up to 127 mm/sec - max speed

Connectivity Technology

Wireless

Interface

USB 2.0, Bluetooth 4.2

Max Resolution (B&W)

203 x 203 dpi

Max Resolution Class (B&W)

203 x 203 dpi

Language Simulation

EPSON ESC/P, ZPL II, EPSON ESC/P Raster

RAM

RAM Installed (Max)

256 MB

Flash Memory

64 MB

Media Handling

Media Type

Receipt labels, die cut labels

Max Media Size

Roll (11.4 cm)

Min Media Size (Custom)

45 mm

Max Media Size (Custom)

114 mm

Media Sizes

Roll (11.4 cm), Roll (4.5 cm)

Max Printing Width

104 mm

Max Printing Length

3000 mm

Media Thickness Range

0.058 mm - 0.17 mm

Roll Maximum Outer Diameter

58 mm

Roll Core Diameter

25.4 mm, 12.7 mm

Media Feeders

1 x manual - 1 roll - Roll (11.4 cm)

Networking

Print server

Expansion / Connectivity

Connections

1 x USB 2.0 - 4 pin mini-USB Type B

Miscellaneous

Included Accessories

Belt clip

Battery

Type

Lithium Ion

Software / System Requirements

Software Included

Software Development Kit (SDK)

OS Required

Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

55 °C

Humidity Range Operating

10 - 90% (non-condensing)

Dimensions & Weight

Width

15.3 cm

Depth

15.9 cm

Height

6.8 cm

Weight

850 g
