Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

ASUS ExpertCenter PN64 is powered by the 12th Gen Intel Core CPU featuring a hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This advanced core design enables PN64 to process multiple tasks simultaneously in a efficient way.


Features Summary

  • Superior computing performance
    ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers more overall system performance, making it perfect for multitasking.
  • Superfast 2.5 Gbps Ethernet
    ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

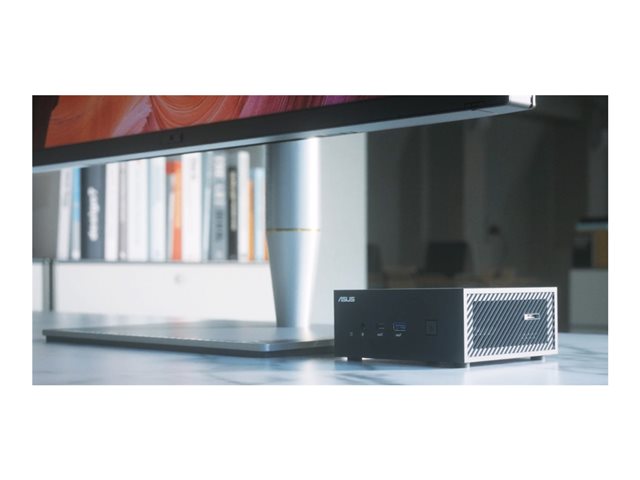

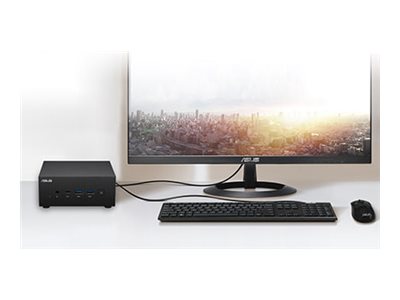

  • Modern, space-saving design
    Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office.
  • Ultra-realistic 8K visuals
    ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4x greater than 4K, or 16x that of traditional FHD output.
  • USB Power Delivery input
    ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
  • 4K resolution and quad display support
    ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI ports, two DisplayPort over USB-C or other user-configurable ports, without any limitation on the combination used.
  • Configurable port
    ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
  • Padlock ring for security
    The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.
  • VESA mount-lockable design
    ASUS ExpertCenter PN64 can even be locked onto a VESA mount for additional security.

Specification Summary

Product Description

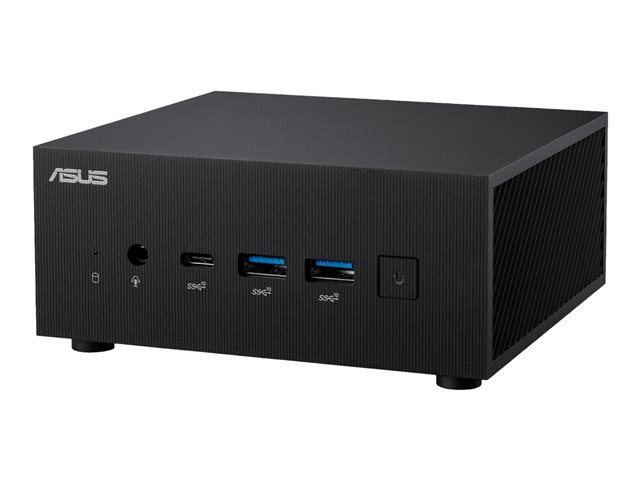

ASUS ExpertCenter PN64 B-S3120MD - mini PC Core i3 1220P 1.5 GHz - 0 GB - no HDD
Type
PC barebone - mini PC
Processor
1 x Intel Core i3 (12th Gen) 1220P / 1.5 GHz (up to 4.4 GHz, (10-core)
Processor Main Features
Intel Smart Cache
Cache Memory
12 MB
Cache Per Processor
12 MB
RAM
0 GB DDR5 SDRAM
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
Intel UHD Graphics
Networking
1GbE, 2.5GbE, Wi-Fi 6E, 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.2
OS Provided
No operating system
Colour
Eco black
Dimensions (WxDxH)
12 cm x 13 cm x 5.8 cm
Weight
750 g
Environmental Standards
EPEAT Silver
Manufacturer Warranty
Limited warranty - 1 year - pick-up and return

Specifications

EAN / GTIN:
4711387152683
General
Type
PC barebone
Product Form Factor
Mini PC
Colour
Eco black
Processor / Chipset
CPU
Intel Core i3 (12th Gen) 1220P
Clock Speed
1.5 GHz
Max Turbo Speed
4.4 GHz
Number of Cores
10-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Cache Memory
Installed Size
12 MB
Cache Per Processor
12 MB
RAM
Installed Size
0 GB
Technology
DDR5 SDRAM
Effective Memory Speed
4800 MHz
Rated Memory Speed
4800 MHz
Form Factor
SO-DIMM 262-pin
Slots
2 (Total) / 2 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Intel UHD Graphics
Video Interfaces
HDMI, DisplayPort
Networking
Ethernet Ports
2.5 Gigabit Ethernet
Ethernet Controller
Intel I225-V
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, Bluetooth 5.2
Features
Dual stream (2x2)
Expansion / Connectivity
Bays
1 (total) / 1 (free) x internal 2.5"
Slots
1 M.2 Card

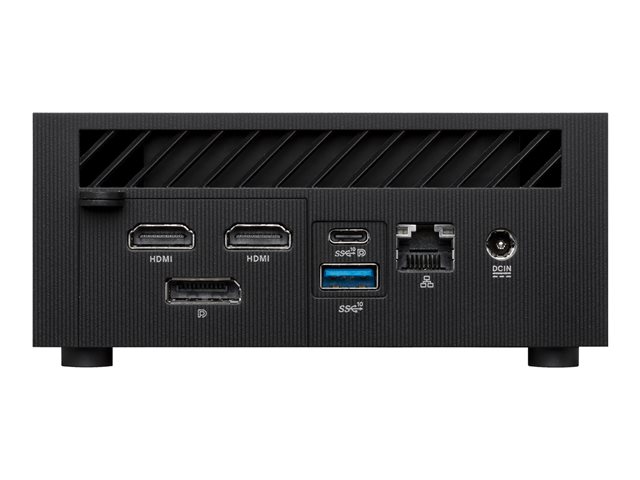

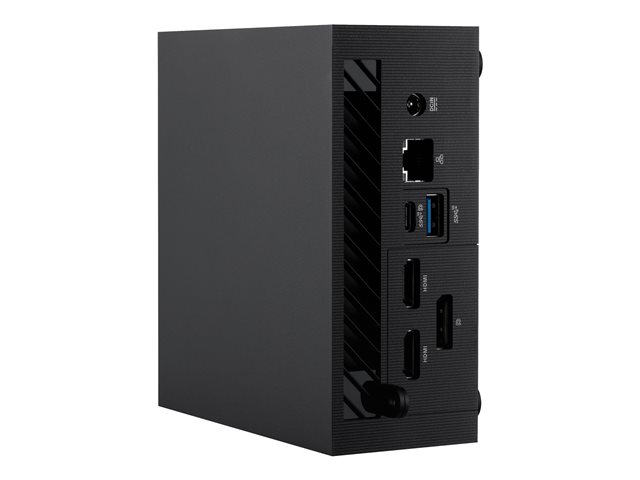

Interfaces
2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x DisplayPort 1.4 ¦ 1 x headphones/microphone ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB-C 3.2 Gen 2
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
VESA Mounting Interface
Yes
Power
Device Type
Power adapter
Installed Qty
1
Power Provided
90 Watt
Operating System / Software
OS Provided
No operating system
Sustainability Information
EPEAT Compliant
EPEAT Silver
Manufacturer Warranty
Service & Support
Limited warranty - 1 year - pick-up and return
Dimensions & Weight
Width
12 cm
Depth
13 cm
Height
5.8 cm
Weight
750 g
