Device Type
Router - 4-port switch (integrated)
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Encryption Algorithm
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method
RADIUS
Features
CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
Digital Signaling Protocol
ADSL2+, VDSL2+
Protocols & Specifications
ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.992.5 Annex J, ITU G.992.3 Annex J
Interfaces

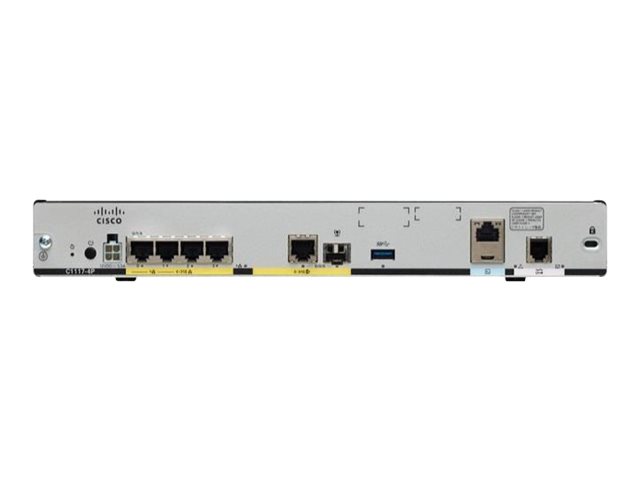

WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console ¦ WAN: 1 x VDSL2 / ADSL2+
Voltage Required
AC 120/230 V (50/60 Hz)
Service & Support
Limited warranty - advance parts replacement - 1 year - response time: 10 days
Min Operating Temperature
0 °C
Max Operating Temperature
65 °C
Humidity Range Operating
5 - 95% (non-condensing)
