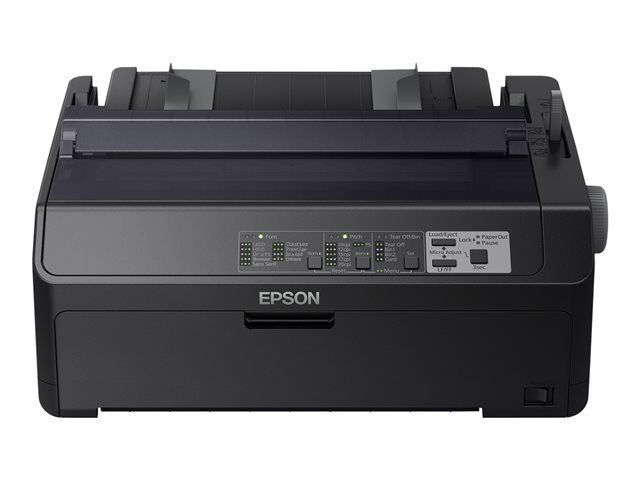

Epson LQ 590IIN - printer - B/W - dot-matrix

Images Manuals

Images for illustrative purposes

Epson LQ 590IIN

Name: Epson LQ 590IIN
Brand: EPSON
SKU: ECE4739786
Price: 949.74 EUR
Availability: OutOfStock

View all EPSON Printers - Visit the EPSON Store (C11CF39402A1) - (ECE4739786)

Model: Epson LQ

LQ 590IIN - Printer - B/W - dot-matrix - Roll (21.6 cm), JIS B4, 254 mm (width) - 360 x 180 dpi - 24 pin - up to 584 char/sec - parallel, USB 2.0, LAN, serial

Fast print speed
Increased reliability
Same consumables
Network capability

FREE Delivery on orders over €250

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€949.74 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The LQ-590IIN is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers built-in network capability with an incredibly low TCO.

Features Summary

Fast print speed
The LQ-590IIN offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.
Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.
Same consumables
This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.
Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.

Specification Summary

Product Description

Epson LQ 590IIN - printer - B/W - dot-matrix

Printer Type

Workgroup printer - dot-matrix - 24 pin - B/W

Weight

7.2 kg

Max Media Size

Roll (21.6 cm), JIS B4 (257 x 364 mm), continuous paper 101.6 mm - 254 mm (width)

Min Media Size (Custom)

100 mm

Max Media Size (Custom)

257 mm

Print Speed

Up to 550 char/sec - ultra high speed draft ¦ Up to 584 char/sec - high speed draft ¦ Up to 487 char/sec - high speed draft ¦ Up to 366 char/sec - draft ¦ Up to 439 char/sec - draft ¦ Up to 549 char/sec - draft ¦ Up to 145 char/sec - letter ¦ Up to 121 char/sec - letter

Max Resolution (B&W)

360 x 180 dpi

Max Resolution Class (B&W)

360 x 180 dpi

Interface

Parallel, USB 2.0, LAN, serial

RAM Installed (Max)

128 KB

Language Simulation

EPSON ESC/P 2, IBM PPDS

Barcodes

Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Code 128, Interleaved 2 of 5, Postnet

Media Type

Envelopes, plain paper, continuous forms, cards

Networking

Print server

System Requirements

Microsoft Windows XP Professional x64 Edition SP2 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP2 or later, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Microsoft Windows XP SP3 (32 bit) or later, Windows 10 (32/64 bits), Microsoft Windows Server 2016

Manufacturer Warranty

1-year warranty

Dimensions (WxDxH)

43.7 cm x 32 cm x 17.65 cm

Specifications

EAN / GTIN:

8715946651378

General

Printer Type

Workgroup printer - dot-matrix - 24 pin - monochrome

Printer

Print Speed

Up to 550 char/sec - ultra high speed draft - 10 cpi ¦ Up to 584 char/sec - high speed draft - 12 cpi ¦ Up to 487 char/sec - high speed draft - 10 cpi ¦ Up to 366 char/sec - draft - 10 cpi ¦ Up to 439 char/sec - draft - 12 cpi ¦ Up to 549 char/sec - draft - 15 cpi ¦ Up to 145 char/sec - letter - 12 cpi ¦ Up to 121 char/sec - letter - 10 cpi

Connectivity Technology

Wired

Interface

Parallel, USB 2.0, LAN, serial

Max Resolution (B&W)

360 x 180 dpi

Max Resolution Class (B&W)

360 x 180 dpi

Language Simulation

EPSON ESC/P 2, IBM PPDS

Barcodes

Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Code 128, Interleaved 2 of 5, Postnet

RAM

RAM Installed (Max)

128 KB

Media Handling

Media Type

Envelopes, plain paper, continuous forms, cards

Max Media Size

Roll (21.6 cm), JIS B4 (257 x 364 mm), continuous paper 101.6 mm - 254 mm (width)

Min Media Size (Custom)

100 mm

Max Media Size (Custom)

257 mm

Media Sizes

Roll (21.6 cm), JIS B4 (257 x 364 mm), 100 x 100 mm, continuous paper 101.6 mm - 254 mm (width)

Envelope Sizes

US No 10 (104.7 x 241.3 mm), US No 6 (92 x 165 mm)

Card / Label Sizes

100 x 148 mm, 148 x 148 mm

Media Thickness Range

0.065 mm - 0.49 mm

Max Sheets in Multi-Part Form

Networking

Print server

Expansion / Connectivity

Connections

1 x parallel ¦ 1 x USB 2.0 ¦ 1 x LAN ¦ 1 x serial

Miscellaneous

Consumables Included

1 x print ribbon cassette

MTBF

25,000 hour(s)

Compliant Standards

ICES-003 Class A, UL 60950-1, FCC Part 15 B Class A, CAN/CSA-C22.2 No. 60950-1

Power

Power Device

Power supply - internal

Software / System Requirements

OS Required

Environmental Standards

ENERGY STAR

Yes

Manufacturer Warranty

Service & Support

Limited warranty - 1 year - carry-in

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

10 - 80% (non-condensing)

Sound Emission (Operating)

55 dBA

Dimensions & Weight

Width

43.7 cm

Depth

32 cm

Height

17.65 cm

Weight

7.2 kg
