CISCO

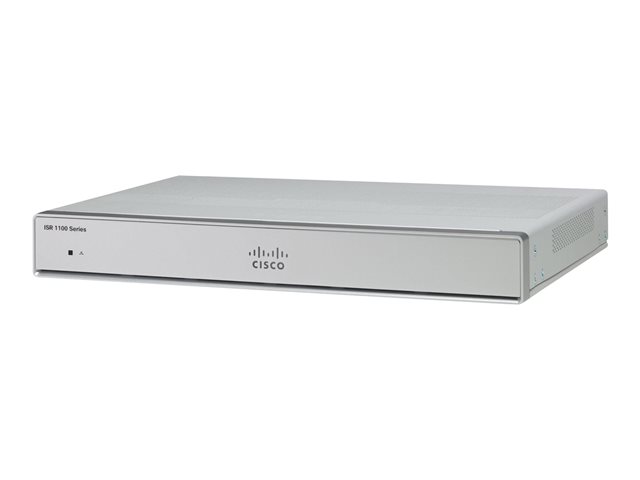

Cisco Integrated Services Router 1111 ...

Cisco Integrated Services Router 1111 - Router - 8-port switch - GigE - WAN ports: 2 (C1111-8P)

  •   Consistent, high application performance levels
  •   USB-based console access
Manufacturer Logo
 7  Available to Ship
Quantity
Increase Quantity Decrease Quantity
€1577.79    Save €889.46
688.33   Incl Vat
Bulk Pricing (Show Bulk Pricing)



Cisco Integrated Services Router 1111 Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco ISR 1111 8-port router with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1111-8P model comes with eight LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability.

Features Summary

  • Consistent, high application performance levels
    The router can run multiple services simultaneously with minimal performance degradation.
  • USB-based console access
    A micro USB console port supports management connectivity when traditional serial ports are not available.




Cisco Integrated Services Router 1111 Features
Product Description
Cisco Integrated Services Router 1111 - router - desktop
Device Type
Router - 8-port switch (integrated)
Enclosure Type
Desktop
WAN Ports Qty
2
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Features
Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r
Power
AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)
32.3 cm x 23 cm x 4.2 cm
Weight
2.59 kg
Cisco Integrated Services Router 1111 Specifications
General
Device Type
Router - 8-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Encryption Algorithm
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method
RADIUS
Features
Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, EN 301.511, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301.489-7, EN 301.489-24, EN 301 489-1, EN 301.908-1, EN 301.908-2, EN 301.908-13, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386
RAM
4 GB
Flash Memory
4 GB
Status Indicators
Status
Expansion / Connectivity
Interfaces
WAN / LAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 4 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
66 Watt
Software / System Requirements
OS Provided
Cisco IOS XE Universal
Dimensions & Weight
Width
32.3 cm
Depth
23 cm
Height
4.2 cm
Weight
2.59 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
65 °C
Humidity Range Operating
5 - 95% (non-condensing)
