HPE Apollo 4200 Gen9 - rack-mountable no CPU - 0 G

Images Manuals

Images for illustrative purposes

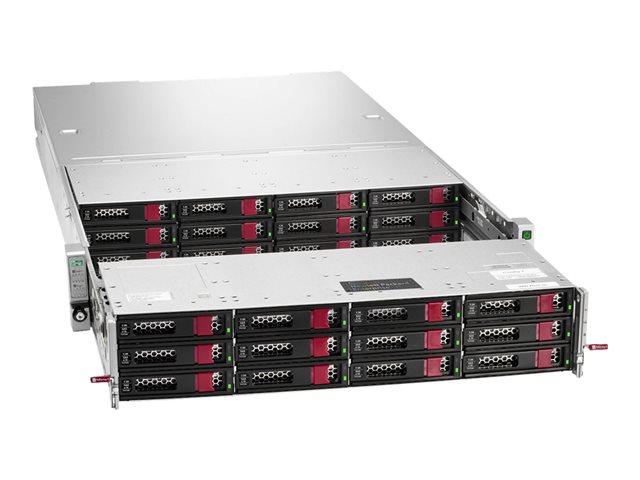

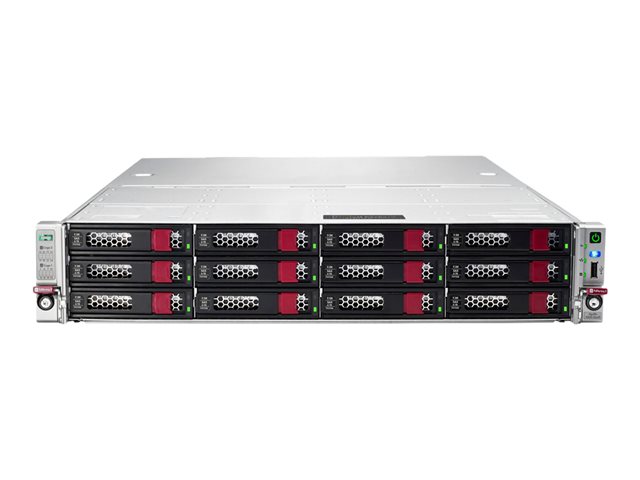

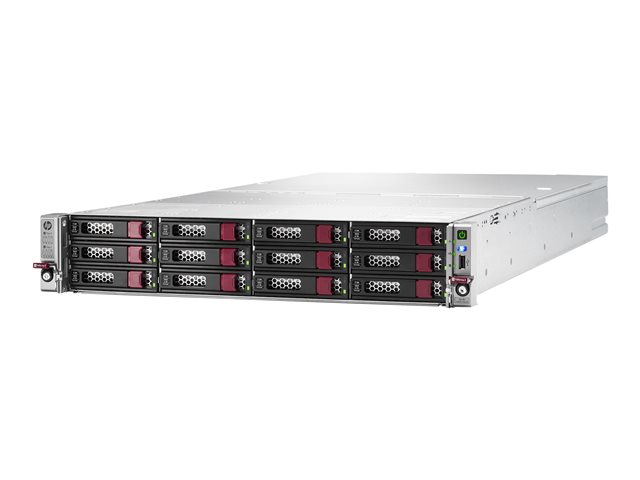

HPE Apollo 4200 Gen9

Name: HPE Apollo 4200 Gen9
Brand: HPE
SKU: ECE3473316
Price: 3369.74 EUR
Availability: OutOfStock

View all HPE Servers - Visit the HPE Store (808027-B21) - (ECE3473316)

Model: HPE Apollo

Apollo 4200 Gen9 24LFF CTO Svr

High storage capacity
Great performance and cost efficienciency for data intensive applications
Comfortable form and management

FREE Delivery on orders over €250

**Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

0 Available to Ship
Restock 03-Sep-2026 Estimated, Out of Stock Prices are Estimated.

€3369.74 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Apollo 4200 Gen9 Server offers an advanced storage density in a 2U form factor. If you are running object storage, content delivery or other data intensive workloads, the HPE Apollo 4200 Gen9 Server allows you to save valuable data center space through its density optimized 2U form factor.

Specification Summary

Product Description

HPE Apollo 4200 Gen9 - rack-mountable no CPU - 0 GB - no HDD

Type

Server - rack-mountable - administrator password, power-on password, serial port I/O control, UEFI BIOS

Height (Rack Units)

Server Scalability

2-way

Processor

No CPU

Processor Socket

LGA2011-v3 Socket

RAM

0 GB (installed) / 512 GB (max) - DDR4 SDRAM - Advanced ECC

Storage Controller

RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HP Smart Array P840ar with 4GB FBWC); RAID (SATA 6Gb/s) (HP Dynamic Smart Array B140i)

Server Storage Bays

Hot-swap 3.5"

Hard Drive

No HDD

Optical Storage

No optical drive

Graphics Controller

Matrox G200eH2

Networking

1GbE

Power

AC 100/230 V (50/60 Hz)

Dimensions (WxDxH)

44.8 cm x 81.28 cm x 8.75 cm

Pricing Type

CTO

Manufacturer Warranty

Limited warranty - parts - 3 years ¦ Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Specifications

EAN / GTIN:

889894096272

General

Type

Server

Product Form Factor

Rack-mountable - 2U

Embedded Security

Trusted Platform Module (TPM 1.2) Security Chip

Server Scalability

2-way

Hot-Swap Bays Qty

Processor / Chipset

CPU

No CPU

Max CPU Qty

CPU Upgradability

Upgradable

CPU Socket

LGA2011-v3 Socket

RAM

Installed Size

0 GB (installed) / 512 GB (max)

Technology

DDR4 SDRAM - Advanced ECC

Form Factor

DIMM 288-pin

Slots

8 (Total) / 8 (empty)

Features

Online Spare Memory, quad channel memory architecture, HP SmartMemory

RAM Supported

512 GB registered ¦ 512 GB Load-Reduced

Hard Drive

Type

No HDD

Storage Controller

Type

1 x RAID - PCIe 3.0 x8

Controller Interface Type

SATA 6Gb/s / SAS 12Gb/s

Storage Controller Name

HP Smart Array P840ar with 4GB FBWC

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Buffer Size

4 GB

Storage Controller (2nd)

Type

1 x RAID

Controller Interface Type

SATA 6Gb/s

Storage Controller Name

HP Dynamic Smart Array B140i

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

Matrox G200eH2

Video Interfaces

VGA

Networking

Ethernet Ports

2 x Gigabit Ethernet

Ethernet Controller

HP 361i

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller

Integrated Lights-Out 4

Features

Wake on LAN (WoL), PXE support

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays

28 (total) / 28 (free) x hot-swap 3.5" LFF

Slots

2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)

Interfaces

1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) ¦ 2 x LAN (Gigabit Ethernet)

Miscellaneous

Features

Administrator password, power-on password, serial port I/O control, UEFI BIOS

Compliant Standards

ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Pricing Type

CTO

Power

Device Type

Power supply

Voltage Required

AC 100/230 V (50/60 Hz)

Operating System / Software

OS Certified

SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Canonical Ubuntu

Manufacturer Warranty

Service & Support

Limited warranty - parts - 3 years ¦ Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Dimensions & Weight

Width

44.8 cm

Depth

81.28 cm

Height

8.75 cm

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 90%
