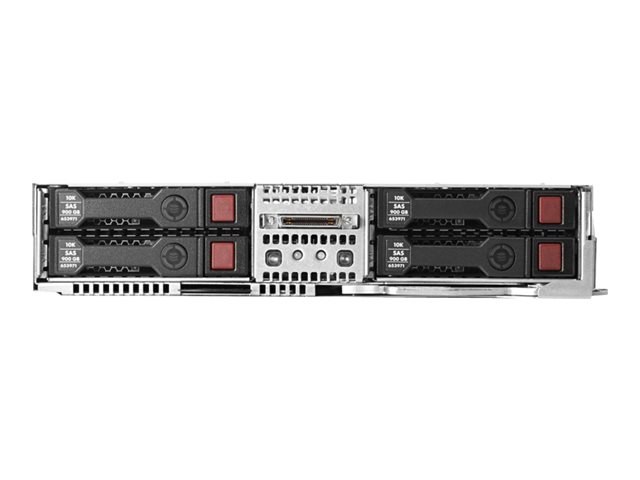

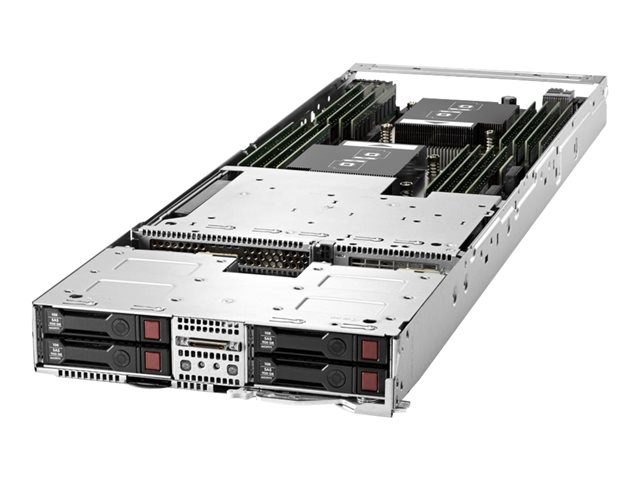

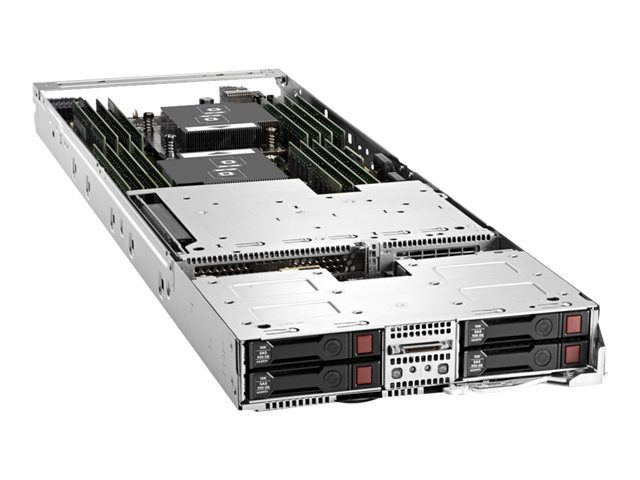

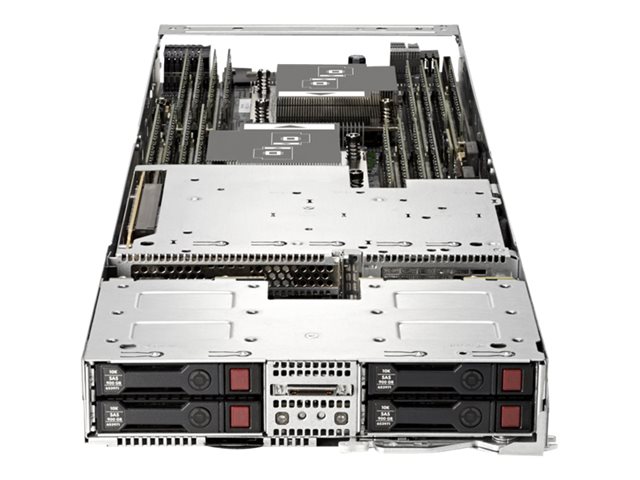

HPE ProLiant XL230a Gen9 Compute Tray (6G)

Images for illustrative purposes

HPE ProLiant XL230a Gen9 Compute Tray (6G)

Name: HPE ProLiant XL230a Gen9 Compute Tray (6G)
Brand: HPE
SKU: ECE3236143
Price: 1556.65 EUR
Availability: OutOfStock

View all HPE Servers - Visit the HPE Store (785996-B21) - (ECE3236143)

Model: HPE ProLiant

ProLiant XL230a Gen9 Compute Tray

Robust scalability
Optimized memory
Environmental resilience

FREE Delivery on orders over €250

**Note: PLEASE CHECK, MONITOR NOT INCLUDED IN MOST PCs.

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€1556.65 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE ProLiant XL230a Gen9 server delivers high performance, while leveraging the modular flexibility and rack-scale efficiency. The server's DIMM slots are ready for DDR4 memory to boost bandwidth so you can see results faster.

Features Summary

Robust scalability
Designed to meet the demands of high-performance computing, the HPE ProLiant XL230a Gen9 Compute Tray offers exceptional scalability with its four internal bays and expansion slots, including a PCIe 3.0 x16 and a microSD card slot, ensuring ample capacity for growth and future upgrades.
Optimized memory
Equipped with HP SmartMemory, the server enhances performance for data-intensive applications. The DIMM 288-pin configuration, supporting both Load-Reduced and registered PC4-17000 DDR4 SDRAM, ensures reliable, high-speed data processing.
Environmental resilience
Built to operate in varied environmental conditions, the server maintains optimal performance with an operating humidity range of 8 - 90% (non-condensing) and a temperature range from 10°C to 35°C, making it suitable for deployment in diverse settings.

Specification Summary

Product Description

HPE ProLiant XL230a Gen9 Compute Tray (6G) - tray no CPU - 0 GB - no HDD

Type

Server - tray

Processor

No CPU

RAM

0 GB (installed) / 512 GB (max) - DDR4 SDRAM

Hard Drive

No HDD

Optical Storage

No optical drive

Graphics Controller

Matrox G200

Dimensions (WxDxH)

21.15 cm x 70.79 cm x 4.33 cm

Weight

6.8 kg

Pricing Type

CTO

Specifications

EAN / GTIN:

888793466049

General

Type

Server

Product Form Factor

Tray

Internal Bays Qty

Processor / Chipset

CPU

No CPU

CPU Upgradability

Upgradable

RAM

Installed Size

0 GB (installed) / 512 GB (max)

Technology

DDR4 SDRAM

Form Factor

DIMM 288-pin

Features

HP SmartMemory

RAM Supported

PC4-17000 - 512 GB Load-Reduced ¦ PC4-17000 - 256 GB registered

Hard Drive

Type

No HDD

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

Matrox G200

Expansion / Connectivity

Bays

4 (total) / 4 (free) x internal 2.5" SFF

Slots

1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)

Interfaces

1 x KVM

Miscellaneous

Compliant Standards

FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438

Pricing Type

CTO

Operating System / Software

OS Certified

SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Red Hat Fedora Core, openSUSE, CentOS, Canonical Ubuntu, Asianux

Dimensions & Weight

Width

21.15 cm

Depth

70.79 cm

Height

4.33 cm

Weight

6.8 kg

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 90% (non-condensing)

Sound Emission

51 dBA
