Recommended Use
Small business, corporate business
Product Form Factor
Tower - 5U
Front Accessible Bays Qty
1
Localisation
Region: Germany
CPU Upgradability
Upgradable
Installed Size
L3 Cache - 15 MB
Cache Per Processor
15 MB
Installed Size
8 GB (installed) / 384 GB (max)
Slots
24 (Total) / 22 (empty)
Features
Registered, quad channel memory architecture, HP SmartMemory
Configuration Features
2 x 4 GB
RAM Supported
PC3-12800 - 384 GB registered ¦ PC3-10600 - 128 GB unbuffered - Advanced ECC
Type
1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type
SATA 3Gb/s / SAS 6Gb/s
Storage Controller Name
Smart Array P420i
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Graphics Processor
Matrox G200
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HP 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

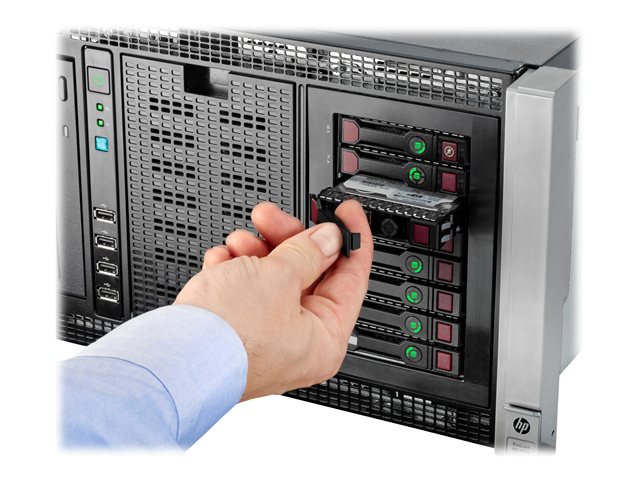

Bays
1 (total) / 0 (free) x external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
24 (total) / 22 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode) ¦ 4 (total) / 4 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height (x4 mode) ¦ 3 (total) / 3 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x SD card (internal)
Interfaces
1 x serial ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 8 x USB 2.0 (4 front, 4 rear)
Features
Administrator password, system password, power-on password, serial port I/O control
Compliant Standards
ACPI 2.0b, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC CFR47 Part 15 B
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50/60 Hz)
80 PLUS Certification
80 PLUS Gold
Operating System / Software
OS Certified
SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008, Oracle Solaris
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
