Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

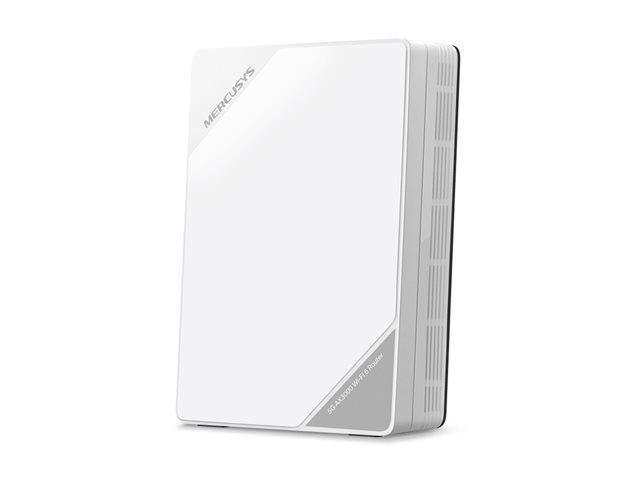

The Mercusys MB520-5G V1 combines high-performance connectivity with versatile networking options, making it a suitable choice for homes and offices. With a maximum data transfer rate of 4.67 Gbps, this wireless cellular modem delivers fast and reliable Internet access, supporting both 4G and 5G networks. It offers a dual-band Wi-Fi experience with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ensuring smooth streaming and gaming experiences for multiple users simultaneously. Equipped with advanced security features, the MB520-5G V1 supports WPA3 encryption for enhanced protection against unauthorized access. Its comprehensive range of connectivity options includes Ethernet interfaces for wired connections and Nano-SIM support for mobile broadband, ensuring flexibility for various networking needs. With features like guest network access, port forwarding, and remote management capabilities, this device serves as an essential tool for modern digital environments.


Specification Summary

Product Description
Mercusys MB520-5G V1 - wireless router - WWAN - Wi-Fi 6, LTE - 5G, 4G - desktop
Device Type
Wireless router - wireless cellular modem - 2-port switch (integrated)
Enclosure Type
Desktop
Mobile Communication Protocol
LTE CAT19, 5G, DC-HSDPA, FDD LTE, HSDPA, HSDPA+, TDD LTE, UMTS
Generation
5G, 4G
Cellular Band
5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n77, 5G n78, 5G n8, HSPA B1, HSPA B5, HSPA B8, HSPA+ B1, HSPA+ B5, HSPA+ B8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B8, UMTS B1, UMTS B5, UMTS B8
WAN Ports Qty
1
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Frequency Band
2.4 GHz / 5 GHz
Performance
Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ 5G download speed: 4.67 Gbps ¦ 5G upload speed: 1.25 Gbps
Capacity
Connected devices: up to 256
Network / Transport Protocol
PPTP, L2TP, PPPoE, IPv6, IPv4
Routing Protocol
Static IP routing
Remote Management Protocol
HTTP, DHCP, DNS
Features
EasyMesh, VoLTE support, reset button, WPS, WPS button, usage statistics, WMM support, wireless radio enable/disable, Wireless Scheduler, 3G/4G router mode, 5G/4G router mode, dynamic IP mode, Address Reservation, ALG support, DHCP client, DHCP server, DMZ support, port forwarding, port triggering, virtual server support, IP-MAC binding, SPIF, firmware upgradable, Guest Network, network diagnostics, remote device management, system log
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, UPnP
Dimensions (WxDxH)
19 cm x 13 cm x 6.97 cm

Specifications

EAN / GTIN:
6957939004033
General
Device Type
Wireless router - 2-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wired, wireless
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Frequency Band
2.4 GHz / 5 GHz
Performance
Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ 5G download speed: 4.67 Gbps ¦ 5G upload speed: 1.25 Gbps
Capacity
Connected devices: up to 256
Network / Transport Protocol
PPTP, L2TP, PPPoE, IPv6, IPv4
Routing Protocol
Static IP routing
Remote Management Protocol
HTTP, DHCP, DNS
Encryption Algorithm
WPA-PSK, WPA2-PSK, WPA3-SAE
Wi-Fi Rating
AX3000
Features
EasyMesh, VoLTE support, reset button, WPS, WPS button, usage statistics, WMM support, wireless radio enable/disable, Wireless Scheduler, 3G/4G router mode, 5G/4G router mode, dynamic IP mode, Address Reservation, ALG support, DHCP client, DHCP server, DMZ support, port forwarding, port triggering, virtual server support, IP-MAC binding, SPIF, firmware upgradable, Guest Network, network diagnostics, remote device management, system log
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, UPnP, RoHS
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
LTE CAT19, 5G, DC-HSDPA, FDD LTE, HSDPA, HSDPA+, TDD LTE, UMTS
Generation
5G, 4G
Cellular Band
5G n1, 5G n20, 5G n28, 5G n3, 5G n38, 5G n40, 5G n41, 5G n5, 5G n7, 5G n77, 5G n78, 5G n8, HSPA B1, HSPA B5, HSPA B8, HSPA+ B1, HSPA+ B5, HSPA+ B8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B8, UMTS B1, UMTS B5, UMTS B8
Max Transfer Rate
4.67 Gbps
Expansion / Connectivity
Interfaces

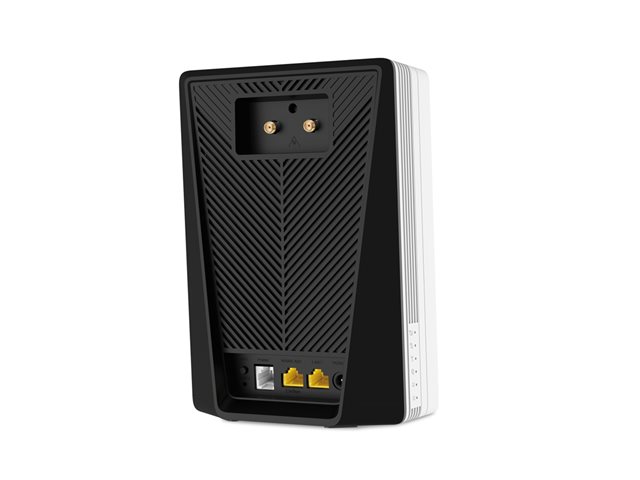

Antenna: 2 x SMA ¦ WAN / LAN: 1 x 2.5GBase-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Phone line: 1 x RJ-11
Expansion Slots

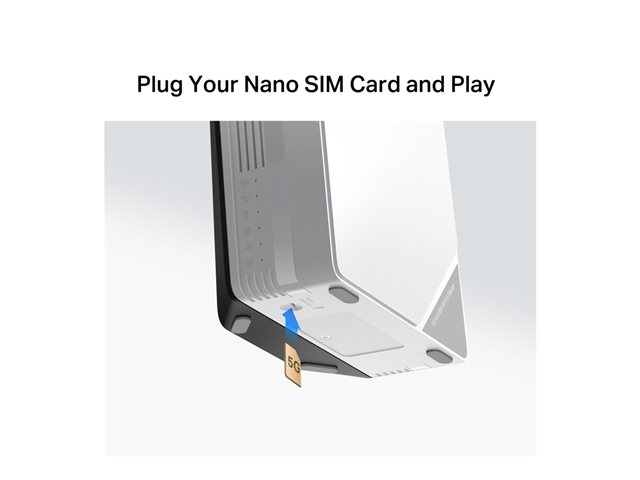

1 (total) / 1 (free) x Nano-SIM
Aerial
Aerial
Internal
Power
Power Device
External power adapter
Miscellaneous
Cables Included
1 x network cable ¦ 1 x phone cable
Dimensions & Weight
Width
19 cm
Depth
13 cm
Height
6.97 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
