Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Designed for SMB with 10GBASE-T connectivity and advanced L2+/L3 lite features, the new Zyxel 10-Gigabit L2+ managed switch XS3800-28 enables applications for aggregation or SMB core switching and connection; and the XS3800-28 also comes with up to 12 Multi-Gigabit ports to help your preparation for network expansions with Multi-Gigabit capable devices such as servers, workstations and NAS.


Features Summary

  • Flexible port combination for all your needs
    10GBASE-T and 10-Gigabit SFP+ are essential to a Layer-2 aggregation switch. The XS3800-28 offers a wide range of combo ports options to give you the greatest flexibility for any type of networks. With 16 x 10G SFP+, 8 combo ports (Multi-Gigabit RJ-45/SFP+) and 4 Multi-Gigabit RJ-45 ports, the XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are well prepared for easy adaption to your networks.
  • Future-proof deployments with Multi-Gigabit capability
    If you are currently connecting a Multi-Gigabit capable device to a traditional 10-Gigabit switch without Multi-Gigabit capability, the connection automatically downgrades to 1 Gbps since your Multi-Gigabit device only supports speeds up to 2.5G or 5 Gbps rather than 10 Gbps. Instead, the XS3800-28 offers up to 12 Multi-Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G speeds that allow the connection to operate at the maximum speed as fast as the connected devices allow. The most commonly used CAT5e Ethernet cables support both 2.5G/5 Gbps Multi-Gigabit operations without the need to purchase expensive CAT6 cables. For the existing networks that need to be upgraded to the Mutli-Gigabit specification, the XS3800-28 is the perfect solution without replacing the current cabling infrastructure.
  • Advanced Layer-3 switching capacity
    Designed with supports to the 4K L3 forwarding table and 1K static L3 routes, the XS3800-28 is suitable for aggregation and virtualization for SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.
  • Resiliency and availability

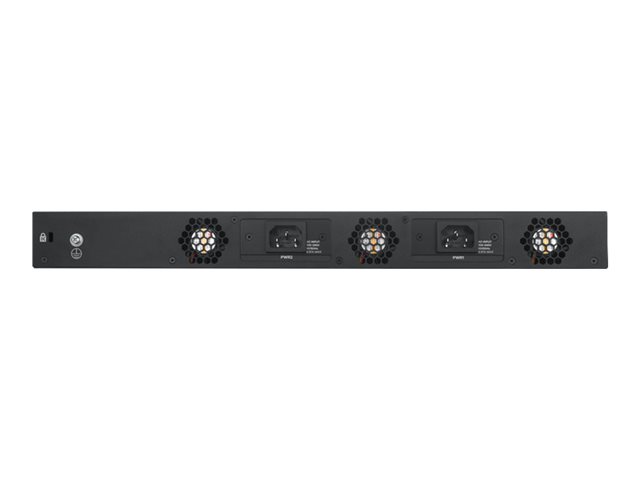

    As a SMB core switch, high availability for uninterrupted services is essential. The XS3800-28 comes with two PSUs supporting active-standby power redundancy that triggers backup power supply if the main unit fails. The XS3800-28 also features a new one-touch "Restore" button on the front panel that saves the last workable configuration as the custom default, which allows you to fall back anytime with a press in case of network misconfigurations.

Specification Summary

Product Description

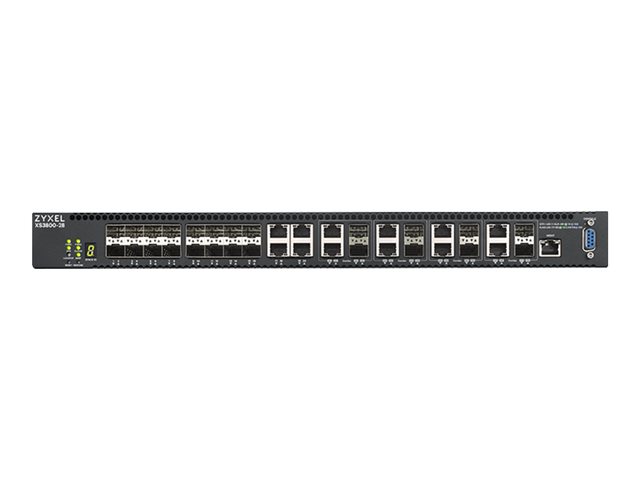

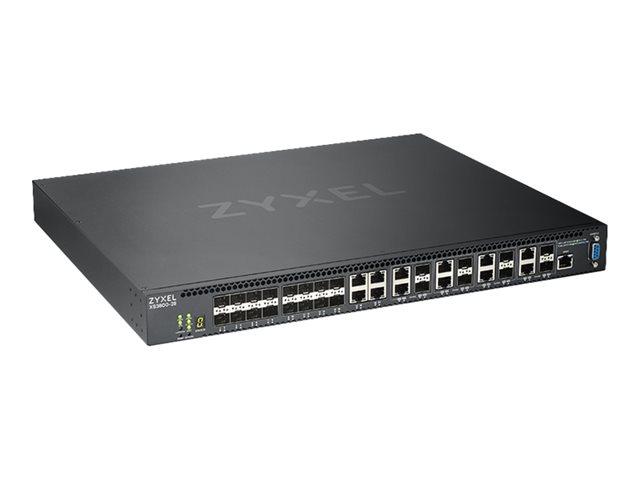

Zyxel XS3800-28 - switch - 28 ports - Managed - rack-mountable
Device Type
Switch - 28 ports - L2+ - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+
Performance
Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps
Capacity
Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8
MAC Address Table Size
32K entries
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP
Features
Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Dimensions (WxDxH)
44.1 cm x 36 cm x 4.4 cm
Weight
4.81 kg
Localisation
Europe

Specifications

EAN / GTIN:
4718937600960
General
Device Type
Switch - 28 ports - L2+ - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
4 x 10GBase-T + 16 x 10 Gigabit SFP+ + 8 x combo 10 Gigabit SFP+
Performance
Switching capacity: 560 Gbps ¦ Forwarding rate: 416 Mpps
Capacity
Routing table entries: 1000 ¦ IPv4 forwarding table entries: 4000 ¦ IPv6 forwarding table entries: 2000 ¦ IP interfaces: 128 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8
MAC Address Table Size
32K entries
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, NTP, ICMP
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, auto-negotiation, Syslog support, store and forward, IP address filtering, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, ECMP, Port Security, MVR, GVRP, SPQ, NDP, port isolation, CoS, Loopback, 4MB packet buffer, DSCP support, ErrDisable Recovery, ZON, IGMP throttling, Protocol-based VLANs support, Storm Control, CPU protection, ARP inspection, policy based rate limiting, BPDU, dual image support, DLF, MAC address authentication, VLAN Double Tagging (Q-in-Q), Loop Guard, LLDP-MED, Private VLAN, Guest VLAN, EEE, WRR, port-based VLAN, VLAN trunking, MRSTP
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
RAM
8 GB
Flash Memory
64 MB
Status Indicators
Port status, system, link/activity
Expansion / Connectivity
Interfaces
24 x 10Gbit LAN SFP+ ¦ 12 x 10GBase-T RJ-45 ¦ 1 x console DB-9 ¦ 1 x management RJ-45
Power
Power Device
Internal power supply
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
86.97 Watt
Miscellaneous
Rack Mounting Kit
Included
MTBF
656,274.78 hours
Compliant Standards
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC
Localisation
Europe
Dimensions & Weight
Width
44.1 cm
Depth
36 cm
Height
4.4 cm
Weight
4.81 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
