Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed.

Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as Wi-Fi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G.


Features Summary

  • Breakthrough 1 Gbps
    The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed.
  • New era of connectivity
    Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as Wi-Fi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G.
  • Experience the near silent operation
    The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment.
  • Manage it your way
    The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and license-free Nebula cloud management platform anytime with just a few simple clicks.
  • Smart managed switch inside and out
    The XS1930 Series aims to widen user experience with its unique One-touch 'Restore' button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently.

Specification Summary

Product Description

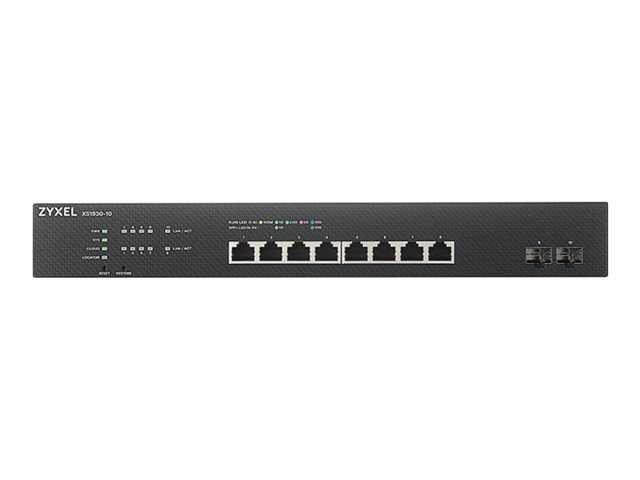

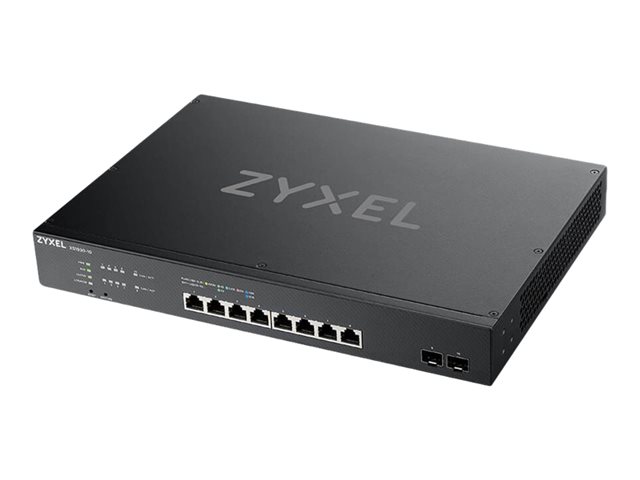

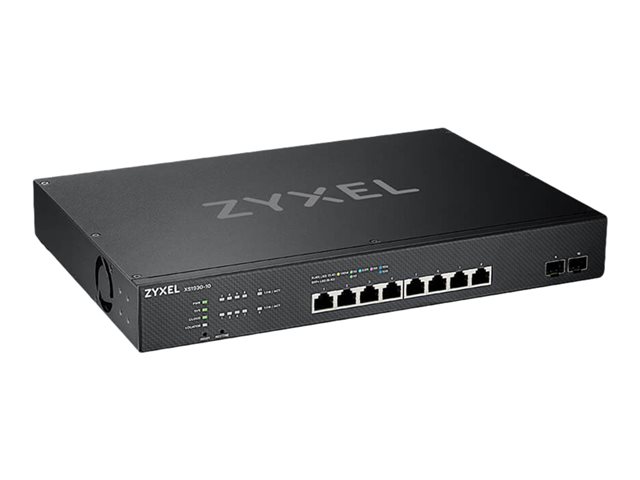

Zyxel XS1930-10 - switch - 10 ports - smart - rack-mountable
Device Type
Switch - 10 ports - smart - stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
8 x 100/1000/2.5G/5G/10GBase-T + 2 x 10 Gigabit SFP+
Performance
Switching capacity: 200 Gbps ¦ Forwarding performance: 148.8 Mpps
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3, policy-based routing (PBR)
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI
Features
Flow control, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, MVR, GVRP, dual firmware images, SPQ, NDP, 2MB packet buffer, loop prevention, port isolation, CoS, tagged VLAN, IGMP proxy, ErrDisable Recovery, ZON, IGMP filtering, IGMP throttling, CPU protection, IP source guard, ARP inspection, policy based rate limiting
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
33 cm x 23 cm x 4.4 cm
Weight
2.4 kg
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
4718937605248
General
Device Type
Switch - 10 ports - smart - stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
8 x 100/1000/2.5G/5G/10GBase-T + 2 x 10 Gigabit SFP+
Performance
Switching capacity: 200 Gbps ¦ Forwarding performance: 148.8 Mpps
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3, policy-based routing (PBR)
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Features
Flow control, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, MVR, GVRP, dual firmware images, SPQ, NDP, 2MB packet buffer, loop prevention, port isolation, CoS, tagged VLAN, IGMP proxy, ErrDisable Recovery, ZON, IGMP filtering, IGMP throttling, CPU protection, IP source guard, ARP inspection, policy based rate limiting
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an
RAM
256 MB
Flash Memory
32 MB
Status Indicators
Power, system, link/activity
Expansion / Connectivity
Interfaces
8 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
44.3 watt
Miscellaneous
Rack Mounting Kit
Included
MTBF
778 690 hours
Compliant Standards
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC
Dimensions & Weight
Width
33 cm
Depth
23 cm
Height
4.4 cm
Weight
2.4 kg
Dimensions & Weight (Shipping)
Shipping Width
48.4 cm
Shipping Depth
33.7 cm
Shipping Height
7.9 cm
Shipping Weight
3.5 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
