Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The XGS2220 Series is a family of Layer 3 access Switch. In addition to four 10G SFP+ uplink, it comes with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-54 provide 48 Gigabit desktop ports for every day network access. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.


Features Summary

  • Efficient routing capabilities
    The Zyxel XGS2220-54 supports up to 1000 IPv4 and 512 IPv6 forwarding table entries, making it capable of handling extensive routing tasks effectively.
  • High performance metrics
    With a switching capacity of 216 Gbps and a forwarding rate of 161 Mpps, this switch is optimized for high-speed data transmission and efficient traffic management.
  • Robust environmental adaptability
    The device operates in temperature ranges from -20°C to 50°C, ensuring reliable performance in various operational environments.
  • Enhanced network security
    Features such as 2KV surge protection and an 8KV air-gap discharge ESD protector help maintain the integrity and security of network operations.
  • Extensive connectivity options
    Equipped with 48 Gigabit Ethernet ports and multiple 10 Gigabit uplink ports, the Zyxel XGS2220-54 provides ample connectivity for expanding network needs.

Specification Summary

Product Description

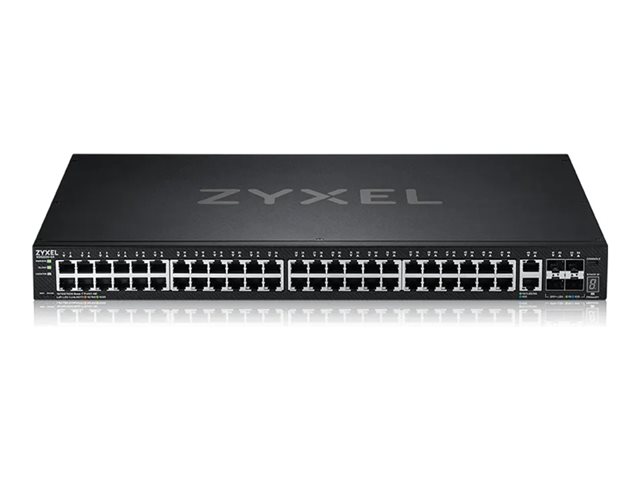

Zyxel XGS2220 Series XGS2220-54 - switch - L3 access - 48 ports - Managed - rack-mountable
Device Type
Switch - 48 ports - Managed
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink)
Performance
Switching capacity: 216 Gbps ¦ Forwarding rate: 161 Mpps ¦ Packet buffer size: 2 MB
Capacity
Routing tables: 64 ¦ IP interfaces: 32 ¦ IPv4 forwarding table entries: up to 1000 ¦ IPv6 forwarding table entries: up to 512
MAC Address Table Size
32K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMP
Features
Layer 3 switching, 2KV Surge protection, 6KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), IGMP snooping, Smart Fan
Power
AC 100-240 V (50/60 Hz)
Dimensions (WxDxH)
44.1 cm x 27 cm x 4.4 cm
Weight
3.85 kg
Localisation
United Kingdom

Specifications

EAN / GTIN:
4718937625109
General
Device Type
Switch - 48 ports - Managed
Enclosure Type
Desktop, rack-mountable
Subtype
10 Gigabit Ethernet
Ports
48 x Gigabit Ethernet + 6 x 10 Gigabit (uplink)
Performance
Switching capacity: 216 Gbps ¦ Forwarding rate: 161 Mpps ¦ Packet buffer size: 2 MB
Capacity
Routing tables: 64 ¦ IP interfaces: 32 ¦ IPv4 forwarding table entries: up to 1000 ¦ IPv6 forwarding table entries: up to 512
MAC Address Table Size
32K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMP
Features
Layer 3 switching, 2KV Surge protection, 6KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), IGMP snooping, Smart Fan
RAM
1 GB
Flash Memory
64 MB
Expansion / Connectivity
Interfaces
48 x 100 / 1000Base-T RJ-45 ¦ 2 x 1/2.5/5/10GBase-T uplink ¦ 4 x 1/10GBase-X SFP+ uplink
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Miscellaneous
Included Accessories
Power cord
Rack Mounting Kit
Included
MTBF
298,735 hours
Localisation
United Kingdom
Dimensions & Weight
Width
44.1 cm
Depth
27 cm
Height
4.4 cm
Weight
3.85 kg
Dimensions & Weight (Shipping)
Shipping Width
61.6 cm
Shipping Depth
35.5 cm
Shipping Height
10.7 cm
Shipping Weight
5.18 kg
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
