Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Zyxel GS1935 Series XGS1935-52HP is designed to enhance network performance and efficiency. With 48 PoE+ ports and 4 uplink ports, this switch provides versatile connectivity options for various devices, ensuring smooth data transfer and reliable power supply. It features advanced Layer 2 and Layer 3 Lite switching capabilities, allowing for effective network management and support for multiple protocols, including IGMP and VLAN. With a robust power budget of 375 W and energy-efficient design, this switch is ideal for medium to large enterprises needing a reliable and scalable networking solution. Operating in a wide temperature range from -20°C to 50°C and built to withstand different environmental conditions, the XGS1935-52HP is suitable for various setups. Enhanced security features, such as port isolation, MAC address authentication, and 4KV surge protection, ensure that the network remains secure and well-protected against potential threats. With a MTBF of 562,941 hours, the longevity and reliability of this switch make it a solid investment for any organization.


Features Summary

  • Effective power distribution
    The Zyxel GS1935-52HP offers Power over Ethernet (PoE+) across its 48 ports, supporting devices such as IP cameras, phones, and access points while simplifying installation by eliminating the need for additional power cables.
  • High data throughput
    With a forwarding performance of 130.9 Mpps, this switch ensures efficient data handling that caters to high-bandwidth applications, ideal for environments with extensive traffic demands.
  • Robust environmental resilience
    The switch's operational range from -20°C to 50°C and durability against humidity make it suitable for various environments, catering to both indoor and outdoor networking needs.
  • Advanced security mechanisms
    It features multiple security functionalities like port security, MAC address authentication, and storm control to provide a secure networking environment, protecting against unauthorized access.
  • User-friendly management capabilities
    Managed through various remote protocols like HTTPS and SNMP, it offers intuitive management options, simplifying network control and configuration for system administrators.

Specification Summary

Product Description

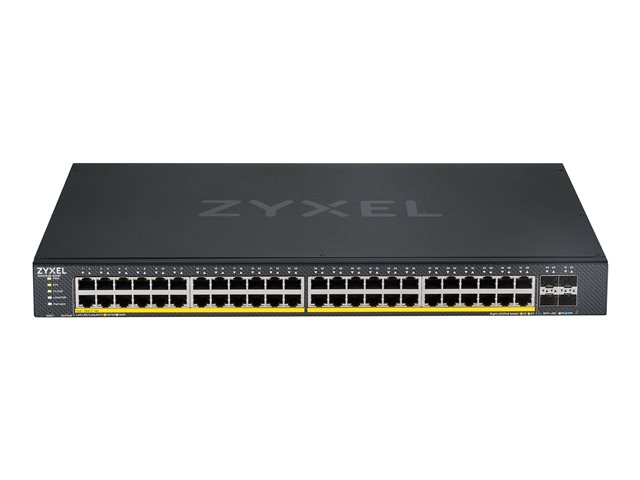

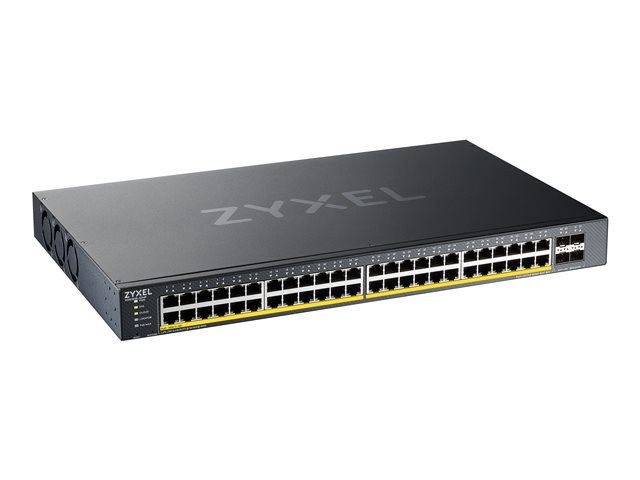

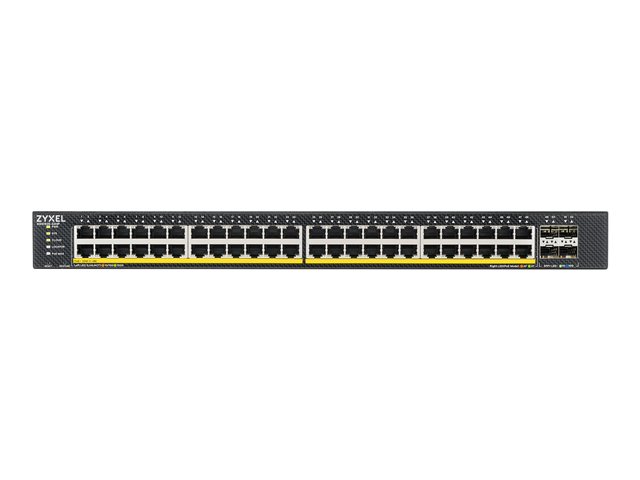

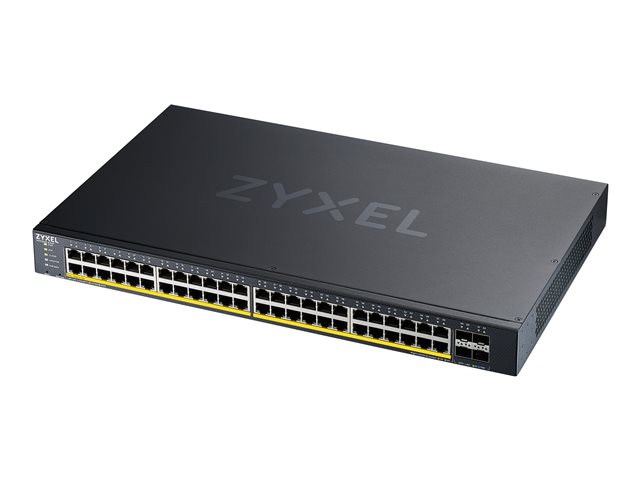

Zyxel GS1935 Series XGS1935-52HP - switch - 48 ports - smart - rack-mountable
Device Type
Switch - 48 ports - L3 Lite - smart
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 176 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Packet buffer size: 1.5 MB
Capacity
IPv4 forwarding entries: 512 ¦ IPv6 forwarding entries: 512 ¦ Routing table entries: 32 ¦ IPv4 interfaces: 32 ¦ IPv6 interfaces: 32
MAC Address Table Size
16K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMP, L2PT, IGMPv2, IGMPv3
Remote Management Protocol
HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, Syslog, ICMP
Features
VLAN support, Energy Efficient Ethernet, 4KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), Loop Guard, IVL, port-based VLAN, Voice VLAN, VLAN trunking, Port Security, MAC address authentication, port isolation, GVRP, ARP support, Guest VLAN, PPPoE relay, CPU protection, QoS, Storm Control, Layer 2 switching, IGMP snooping, IGMP filtering, static multicast routing, IGMP throttling, LLDP, LLDP-MED, DHCP Option 82, DHCP relay, DHCPv4 client, DHCPv6 client, DAD, NebulaFLEX support, NTP server, port mirroring, policy-based prioritisation, policy based rate limiting
Compliant Standards
IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x
Power
AC 100-240 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 27 cm x 4.3 cm
Weight
4.1 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
4718937636426
General
Device Type
Switch - 48 ports - L3 Lite - smart
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
375 W
Performance
Switching capacity: 176 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Packet buffer size: 1.5 MB
Capacity
IPv4 forwarding entries: 512 ¦ IPv6 forwarding entries: 512 ¦ Routing table entries: 32 ¦ IPv4 interfaces: 32 ¦ IPv6 interfaces: 32
MAC Address Table Size
16K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMP, L2PT, IGMPv2, IGMPv3
Remote Management Protocol
HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, Syslog, ICMP
Encryption Algorithm
SSL, SHA-2
Authentication Method
RADIUS
Features
VLAN support, Energy Efficient Ethernet, 4KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), Loop Guard, IVL, port-based VLAN, Voice VLAN, VLAN trunking, Port Security, MAC address authentication, port isolation, GVRP, ARP support, Guest VLAN, PPPoE relay, CPU protection, QoS, Storm Control, Layer 2 switching, IGMP snooping, IGMP filtering, static multicast routing, IGMP throttling, LLDP, LLDP-MED, DHCP Option 82, DHCP relay, DHCPv4 client, DHCPv6 client, DAD, NebulaFLEX support, NTP server, port mirroring, policy-based prioritisation, policy based rate limiting
Compliant Standards
IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x
RAM
32 MB
Flash Memory
512 MB
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ uplink
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
470.1 Watt
Miscellaneous
Included Accessories
Power cable, rack mount kit
MTBF
562,941 hours
Compliant Standards
LVD, BSMI, EMC, FCC Part 15 A, RoHS
Localisation
United Kingdom
Dimensions & Weight
Width
44 cm
Depth
27 cm
Height
4.3 cm
Weight
4.1 kg
Dimensions & Weight (Shipping)
Shipping Width
50.8 cm
Shipping Depth
39.4 cm
Shipping Height
9 cm
Shipping Weight
5.64 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
