Zyxel XGS1010-12 - v2 - switch - 12 ports - Manage

Images Manuals

Images for illustrative purposes

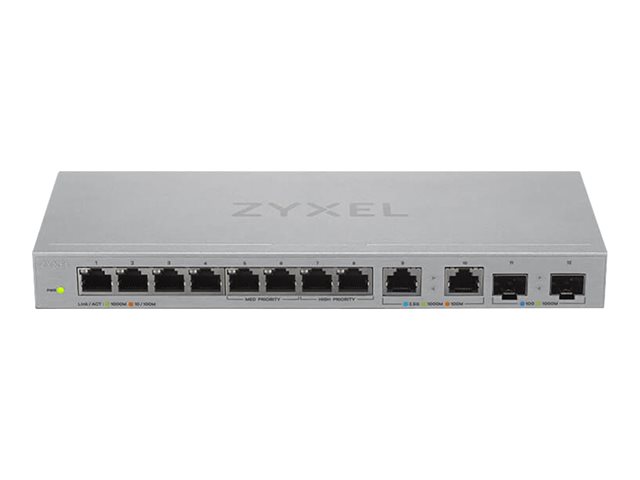

Zyxel XGS1010-12

View all ZYXEL Network Switches - Visit the ZYXEL Store (XGS1010-12-ZZ0102F) - (ECE8691017)

XGS1010-12 - V2 - switch - Managed - 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - desktop, wall-mountable

10G acceleration for all
Multi-gigabit speed support
Easy to use, no setup required
QoS for better traffic control
Fanless, noiseless design
Energy-savings at work
View More
Maximum flexibility for your gig

FREE Delivery on orders over €250

5 Available to Ship
Order within 14Hrs 4Mins for: Delivery (9 Jun or 10 Jun)

€154.78 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Zyxel XGS1010-12 comes with eight gigabit Ethernet ports, two 2.5 Gigabit ports, and two 10 Gigabit SFP+ uplink ports. Deliver your data swiftly to your client devices from your NAS or other core networking essential with 10 Gigabit SFP+. Connect the latest 802.11ax access points to the 2.5 Gigabit ports for true maximum wireless speed delivery. It has been designed specifically for customers who require affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.

Features Summary

10G acceleration for all
The XGS1010-12 provides two SFP+ ports compatible with 10GbE which offers higher transmission speeds and allows customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
Multi-gigabit speed support
Support data transmission speed among 10G, 2.5G, 1G, or 100M capable of servicing a range of network devices such as gaming consoles, laptops, desktops, workstations, servers, network attached storage (NAS) devices, or wireless access points. The XGS1010-12 also features a handy LED indicator that shows the link rate with different colors.
Easy to use, no setup required
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.
QoS for better traffic control
The Zyxel XGS1010-12 comes with two high-priority and two medium priority ports, which provides enhanced download quality, all while giving you a better surﬁng, gaming, and streaming experience on other devices.
Fanless, noiseless design
Extend your network without disrupting your quiet business environment. XGS1010-12 features a fanless design that ensures silent operation and greater reliability over time with no additional moving parts.
Energy-savings at work
Built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.
Maximum flexibility for your gig
Attempting to meet today's demand for more bandwidth, increasing expenditures, difficult deployments, and other complex issues, the XGS1010-12 has been designed to overcome these challenges. XGS1010-12 offers additional flexibility for complex deployments and enables a hybrid high-speed network for homes and/or offices.

Specification Summary

Product Description

Zyxel XGS1010-12 - v2 - switch - 12 ports - Managed

Device Type

Switch - 12 ports - Managed

Subtype

2.5 Gigabit Ethernet

Ports

8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)

Performance

Switching capacity: 66 Gbps ¦ Forwarding performance: 49 Mbps

Capacity

Multicast groups: 128 ¦ Packet buffer size: 1.5 MB

MAC Address Table Size

16K entries

Jumbo Frame Support

12000 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3

Features

QoS, IGMP snooping, web GUI management portal, VLAN support, Link Aggregation, fanless, reset button, flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), password authentication, Broadcast Storm Control, loop detection, loop prevention, DHCP client, Static Link Aggregation, port mirroring, WRR, LED status indicators

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p

Power

AC 100 -240 V (50/60 Hz)

Dimensions (WxDxH)

25 cm x 10.4 cm x 2.7 cm

Weight

768 g

Specifications

EAN / GTIN:

4718937633708

General

Device Type

Switch - 12 ports - Managed

Enclosure Type

Desktop, wall-mountable

Subtype

2.5 Gigabit Ethernet

Ports

8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)

Performance

Switching capacity: 66 Gbps ¦ Forwarding performance: 49 Mbps

Capacity

Multicast groups: 128 ¦ Packet buffer size: 1.5 MB

MAC Address Table Size

16K entries

Jumbo Frame Support

12000 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3

Features

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p

Status Indicators

Link/activity, power

Expansion / Connectivity

Interfaces

8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 100/1000/2.5G RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ uplink

Power

Power Device

External power adapter

Installed Qty

Power Provided

DC 12 V

Voltage Required

AC 100 -240 V (50/60 Hz)

Miscellaneous

Compliant Standards

SFF-8431, LVD, BSMI Class B, FCC, EAC, RoHS

Dimensions & Weight

Width

25 cm

Depth

10.4 cm

Height

2.7 cm

Weight

768 g

Dimensions & Weight (Shipping)

Shipping Width

30.6 cm

Shipping Depth

22.5 cm

Shipping Height

6.4 cm

Shipping Weight

1.127 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

10 - 90% (non-condensing)
