Images for illustrative purposes
<%=manufacture1 %> Logo FREE Delivery on orders over €250
**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

0 Available to Ship
Restock 26-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€583.59 Incl Vat
Bulk Pricing from €574.83 Bulk Pricing
Qty.
5
20
Price
€577.76
€574.83
Wishlist Compare Share

Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

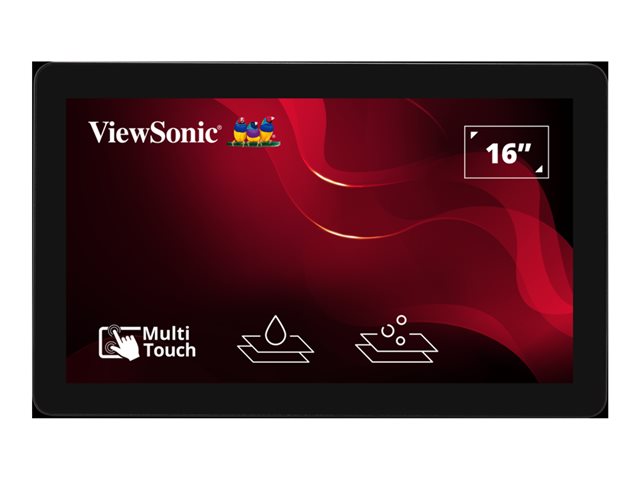

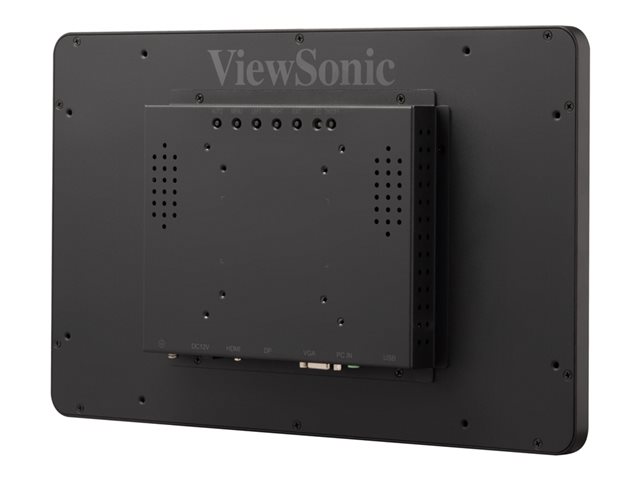

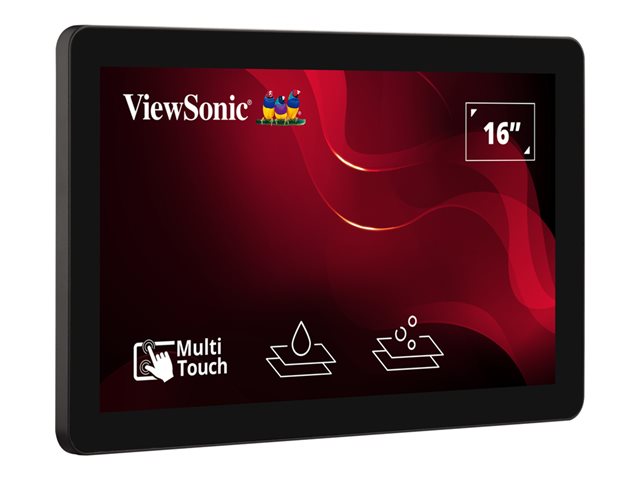

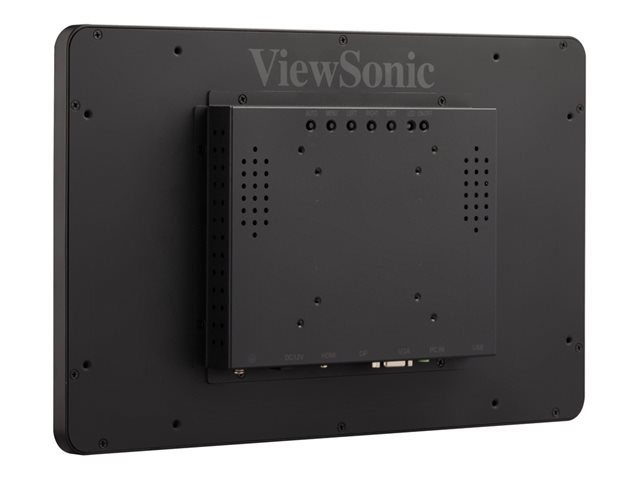

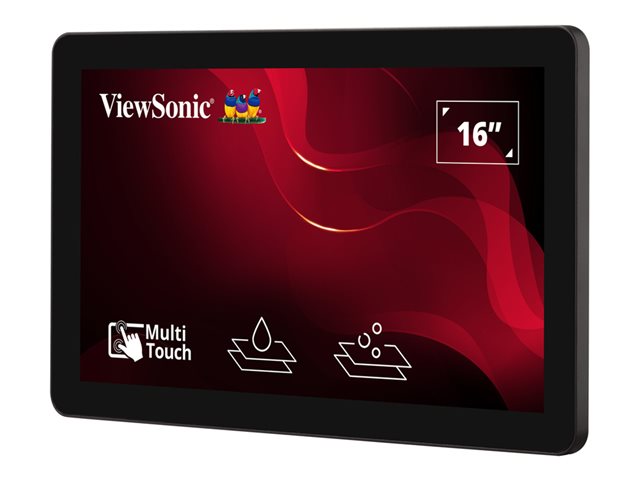

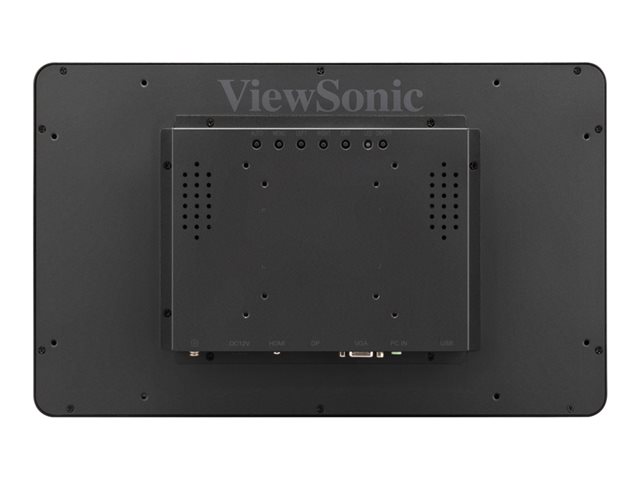

The ViewSonic XF1630 is a versatile 15.6-inch open frame LCD monitor that delivers visual performance in various environments. With a native resolution of 1920 x 1080 and a pixel pitch of 0.18 mm, this monitor provides clear images, supported by an image brightness of 187 cd/m² and a contrast ratio of 800:1. The display features 10-point multi-touch technology, enabling interactive applications, making it suitable for kiosks, point-of-sale systems, and more. Its 24/7 operating mode ensures consistent performance, while the 7H hard coating enhances durability against scratches. With multiple connectivity options including HDMI, VGA, and DisplayPort, the XF1630 allows easy integration with various devices, meeting diverse user needs.


Features Summary

  • High-resolution display
    Features a native resolution of 1920 x 1080, delivering sharp visuals ideal for presentations and digital signage.
  • Interactive touch capability
    Equipped with projected capacitive touch technology, allowing for 10-point multi-touch functionality that enhances user interaction.
  • Robust operating features
    Designed for 24/7 operation, ensuring reliability for continuous use in various applications.
  • Comprehensive connectivity
    Includes multiple interfaces like HDMI, VGA, and DisplayPort, enabling easy connections to various devices.
  • Long-lasting performance
    Backlit by LEDs with a life expectancy of up to 30,000 hours, ensuring minimal maintenance and usability.

Specification Summary

Product Description
ViewSonic XF1630 - LCD monitor - Full HD (1080p) - 15.6"
Device Type
LCD monitor - 15.6" - touchscreen
Energy Label QR Code URL
Https://eprel.ec.europa.eu/qr/2192246
Energy Class
Class B
Features
Touch-screen
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Pixel Pitch
0.18 mm
Brightness
187 cd/m²
Contrast Ratio
800:1
Response Time
30 ms
Colour Support
262,000 colours
Colour Gamut
45% NTSC
Input Connectors
HDMI, VGA, DisplayPort
Screen Coating
7H Hard Coating
Voltage
AC 100-240 V / DC 12 V
Dimensions (WxDxH)
39.08 cm x 3.5 cm x 24.11 cm
Compliant Standards
CB, FCC, RoHS, IP65

Specifications

EAN / GTIN:
766907029932
General
Display Type
LCD monitor / TFT active matrix
Energy Label QR Code URL
Https://eprel.ec.europa.eu/qr/2192246
Energy Class
Class B
Diagonal Size
15.6"
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Pixel Pitch
0.18 mm
Brightness
187 cd/m²
Contrast Ratio
800:1
Colour Support
262,000 colours
Colour Gamut
45% NTSC
Response Time
30 ms
Horizontal Viewing Angle
170
Vertical Viewing Angle
170
Screen Coating
7H Hard Coating
Features
Projected Capacitive Touch (P-CAP) technology, 24/7 operating mode, 3 mm glass thickness
Dimensions (WxDxH)
39.08 cm x 3.5 cm x 24.11 cm
Audio
Type
Speakers
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
HDMI ¦ DisplayPort ¦ USB-B (touchscreen) ¦ Audio line-out (mini-jack) ¦ VGA
Mechanical
VESA Mounting Interface
100 x 100 mm, 75 x 75 mm
Miscellaneous
Features
VESA interface support
Cables Included
1 x HDMI cable ¦ 1 x USB-A to USB-B cable
Backlight Life
30,000 hours
Compliant Standards
CB, FCC, RoHS, IP65
Power
Input Voltage
AC 100-240 V / DC 12 V
Power Consumption SDR (On mode)
6 kWh/1000h
Power Consumption (Typical)
7.14 Watt
Power Consumption (Max)
9 Watt
Power Consumption Stand by
1.69 Watt
Software / System Requirements
OS Required
Apple MacOS, Windows
Dimensions & Weight (Shipping)
Shipping Width
46.5 cm
Shipping Depth
13 cm
Shipping Height
33.5 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% RH
