Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The ProSAFE M6100 Switch Series consists of Gigabit access layer and 10 Gigabit distribution layer switches in NETGEAR modular chassis switch product line. The M6100 switch series offers high-quality, high-density chassis alternative to stackable switches in campus LAN and midsize organizations demanding networks. With more than 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy, the M6100 series delivers world-class resiliency and scalability. Ultimately, operating software and system management features take the complexity out of delivering L2/L3/L4 rich services for enterprise edge and SMB core deployments.
Features Summary
- Chassis Standards Redefined
The new ProSAFE M6100 Chassis series is set to shake up how SMBs deploy high performance, highly resilient, fully redundant and future proof switched networks from the Core to the Edge - without hurting or exhausting IT budgets. The NETGEAR LAN Access and Aggregation Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class. - All in one solution
Designed for use at the center of a small to mid-sized organization, or as an aggregate or access solution in a larger campus or mid-sized enterprise branch network, the application scenarios for the M6100 are both wide and diverse. - Distributed fabric, passive backplane
NO single point of failure with management and power backup and distributed link aggregation across multiple chassis arrangements. - 480Gbps inter-module backplane performance
No performance compromise. With up to 10 x performance of fixed stackable solutions with similar port counts, value performance ratios are unrivaled. - Gigabit and 10G blades offering deployment flexibility for today and tomorrow's needs
Decide on the port count and speeds you need, from 144 Gigabit ports through to 72 10 Gigabit ports, or a combination of both.
Specification Summary
Product Description

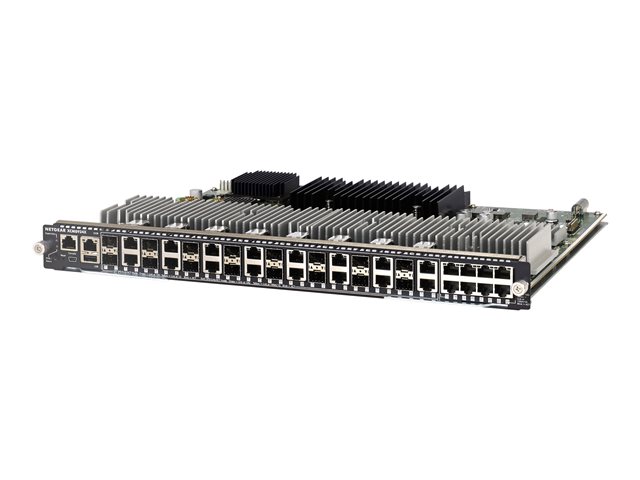

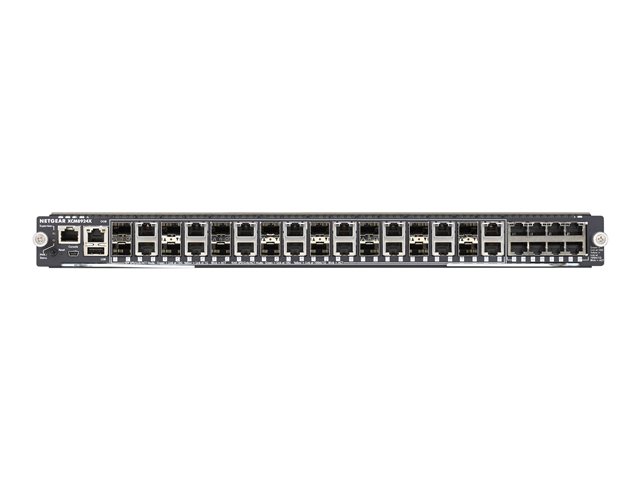

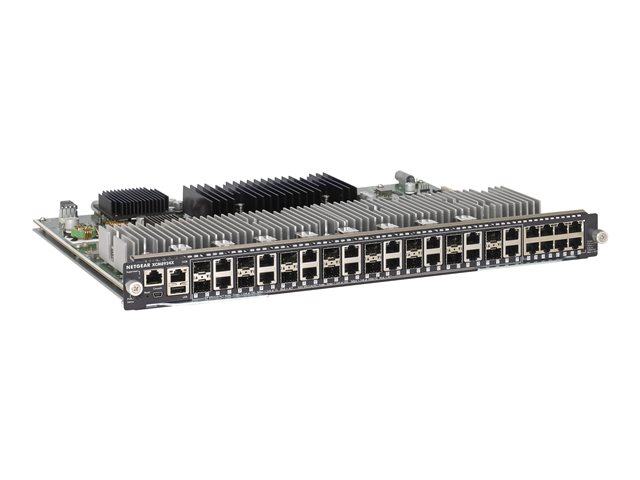

NETGEAR XCM8924X - switch - plug-in module
Enclosure Type
Plug-in module
Subtype
10 Gigabit Ethernet
Ports
24 x 100/1000/10000 + 16 x shared 10 Gigabit SFP+
Features
72MB packet buffer
Dimensions (WxDxH)
48.26 cm x 32.35 cm x 4.05 cm
Manufacturer Warranty
NETGEAR lifetime warranty
