NETGEAR M6100-44G3-POE+ - Starter Kit - switch - 4

Images Manuals

Images for illustrative purposes

NETGEAR M6100-44G3-POE+

View all NETGEAR Network Switches - Visit the NETGEAR Store (XCM8903SK-10000S) - (ECE3307292)

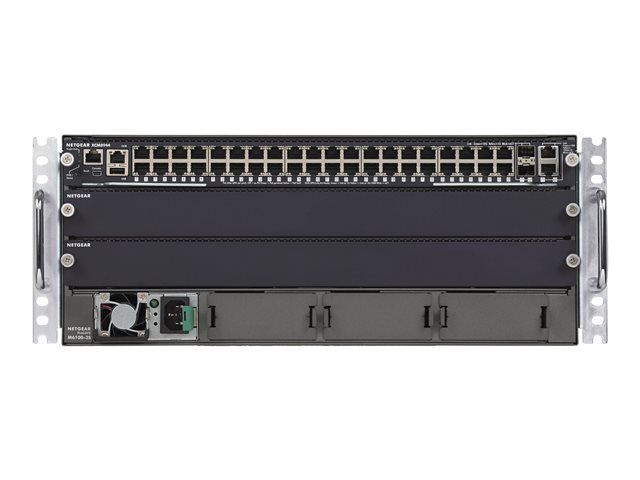

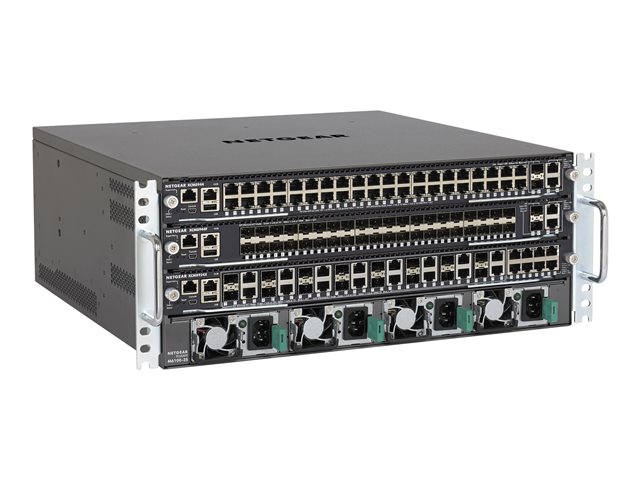

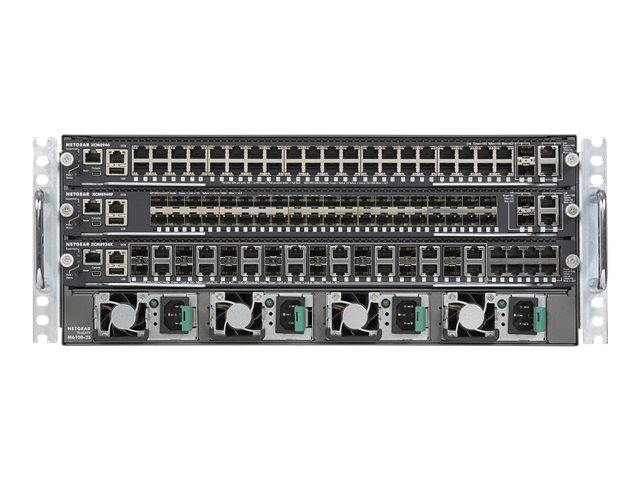

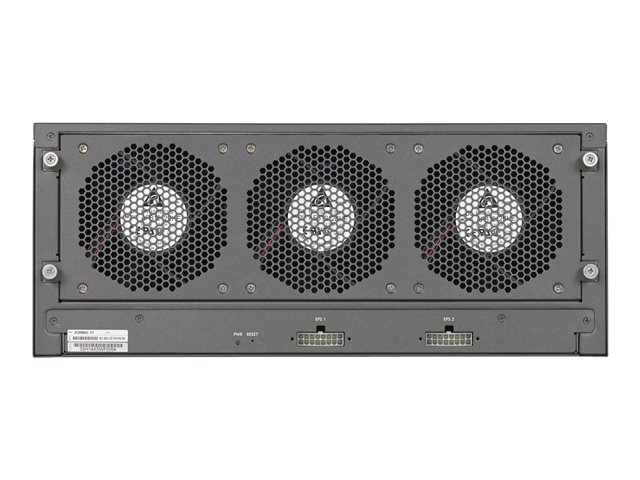

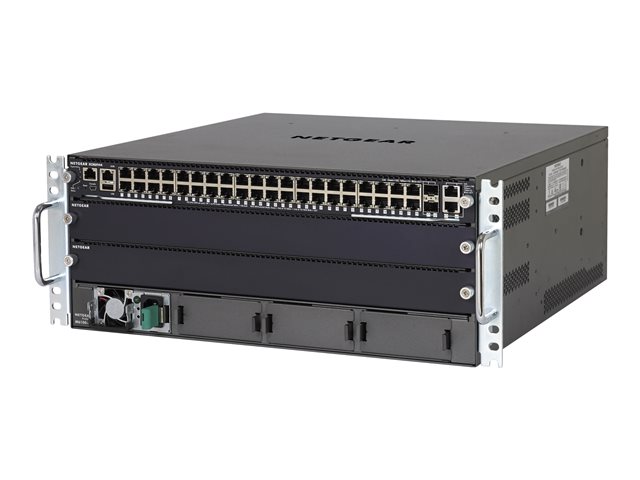

M6100-44G3-POE+ Chassis Starter Kit Bundle (1x XCM8903S Base Chassis, 1x XCM8944 Blade, 1x XCM89P Daughter Card, 1xAPS1000W PSU, 1x AFT603 Fan Tray)

Robust security
High capacity networking
Efficient power management
Advanced networking features
Flexible connectivity options

FREE Delivery on orders over €250

0 Available to Ship
Restock 08-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€3946.11 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ProSAFE M6100 Switch Series consists of Gigabit access layer and 10 Gigabit distribution layer switches in NETGEAR modular chassis switch product line. The M6100 switch series offers high-quality, high-density chassis alternative to stackable switches in campus LAN and midsize organizations demanding networks. With more than 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy, the M6100 series delivers world-class resiliency and scalability. Ultimately, operating software and system management features take the complexity out of delivering L2/L3/L4 rich services for enterprise edge and SMB core deployments.

Specification Summary

Product Description

NETGEAR M6100-44G3-POE+ - Starter Kit - switch - 44 ports - Managed - rack-mountable

Device Type

Switch - 44 ports - L4 - Managed

Enclosure Type

Rack-mountable 4U

Subtype

Gigabit Ethernet

Ports

40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

Capacity

Virtual interfaces (VLANs): 4000 ¦ Static routes: 512 ¦ RIP routes: 512 ¦ OSPF routes: 12000 ¦ BGP routes: 12000 ¦ ARP entries: 8000 ¦ IPv4 forwarding table entries: 1536 ¦ IPv6 forwarding table entries: 512

MAC Address Table Size

32000 entries

Jumbo Frame Support

12KB

Routing Protocol

OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, PIM-SMv6, BGP for IPv6, PIM-DMv6

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI

Features

BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, WFQ, WRED, sFlow, STP support, RSTP support, PVST, MSTP support, DCBX support, priority-based flow control, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, DWRR, LLDP support, DHCP relay, RSPAN, PVRST, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, MVRP, SPQ, CoS, tagged VLAN, GARP, IGMP proxy, ToS, DSCP support, MLD proxy, FIP

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz

Power

AC 120/230 V (50/60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

43.2 cm x 44.16 cm x 17.59 cm

Manufacturer Warranty

NETGEAR lifetime warranty

Specifications

EAN / GTIN:

014013307292

General

Device Type

Switch - 44 ports - L4 - Managed

Enclosure Type

Rack-mountable 4U

Subtype

Gigabit Ethernet

Ports

40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

Capacity

MAC Address Table Size

32000 entries

Jumbo Frame Support

12KB

Routing Protocol

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI

Encryption Algorithm

AES, TLS 1.0, SSL 3.0

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Compliant Standards

Processor

1: 800 MHz

RAM

1 GB

Flash Memory

64 MB

Status Indicators

Port transmission speed, power, status, link/activity, supervisor

Expansion / Connectivity

Interfaces

40 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x management (mini-USB) ¦ 1 x USB Type A

Expansion Slots

3 (total) / 2 (free) x Expansion Slot

Installed Modules Qty (Max)

1 (installed) / 3 (max)

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Optional

Power Redundancy Scheme

N+1

Power Provided

1000 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

80 PLUS Certification

80 PLUS

Features

Redundant Power System (RPS) connector

Miscellaneous

Included Accessories

Fan tray

Rack Mounting Kit

Included

Compliant Standards

CISPR 22 Class A, cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A

Dimensions & Weight

Width

43.2 cm

Depth

44.16 cm

Height

17.59 cm

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days ¦ Technical support - e-mail consulting - 90 days ¦ Technical support - web support - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 90% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C

Humidity Range Storage

0 - 95% (non-condensing)
