(**REFURBISHED**) Cisco Catalyst 3560CX-12PC-S - s

Images Manuals

Images for illustrative purposes

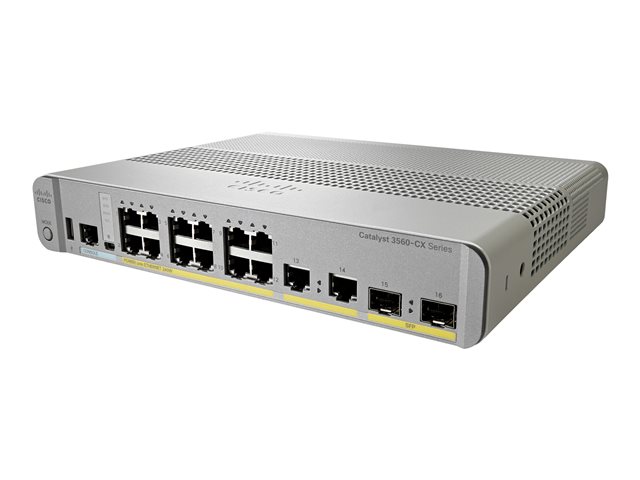

(REFURBISHED) Cisco Catalyst 3560CX-12PC-S

Name: (**REFURBISHED**) Cisco Catalyst 3560CX-12PC-S
Brand: CISCO
SKU: ECE5574035
Price: 1239.75 EUR
Availability: OutOfStock

View all CISCO Network Switches - Visit the CISCO Store (WS-C3560CX12PCS-RF) - (ECE5574035)

Model: Cisco Catalyst

(**REFURBISHED**) Cisco Catalyst 3560CX-12PC-S - Switch - Managed - 12 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - desktop, rack-mountable, DIN rail mountable, wall-mountable - PoE+ (240 W) - remanufactured

Embrace amazing IoT possibilities with PoE
Security and operational simplicity

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€1746.44~~

€1239.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

An effective work environment encourages collaboration. That often means tearing down office walls to create open workspaces. With their quiet, fan-less design, the switches create many possibilities for designing workspaces. They can reside nearly anywhere outside your wiring closet. Install them in carpeted areas such as offices, conference rooms, classrooms, and retail stores for quick, flexible connections. Rearrange rooms and floors without changing your cabling infrastructure. Consolidate cabling for big savings. Rather than running multiple Ethernet cables from endpoints like IP phones and Wi-Fi access points to a wiring closet, you just connect devices over a few feet of cabling to a nearby 3560-CX switch. Then connect the compact switch to the wiring closet with a single Ethernet or fiber cable. Using this setup, a 200-room hotel using compact switches in guest rooms can eliminate up to 30 kilometers of cables.

Features Summary

Embrace amazing IoT possibilities with PoE
The Cisco Catalyst 3560-CX switches enable you to bring sensors, LED lights, building controllers, and other IoT devices onto the network using Power over Ethernet (PoE). The many features and controls offered by these PoE switches make them run more efficiently and reliably. For example, Cisco Perpetual PoE continues powering endpoints even during a switch boot, maximizing uptime. So there's no need for backup power. The switches provide up to 240 watts of power for PoE devices - twice the capacity of current switches.
Security and operational simplicity
For simplified management, these switches have the option to run in Cisco Instant Access mode. Instant Access provides a single point of operation and management for your campus networks. And they support Cisco Plug and Play (PnP) technology, which automates network device deployments.

Specification Summary

Product Description

Cisco Catalyst 3560CX-12PC-S - switch - 12 ports - Managed - rack-mountable

Device Type

Switch - 12 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

12 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

240 W

Performance

Forwarding performance: 16 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps

Capacity

Virtual interfaces (VLANs): 1023

Jumbo Frame Support

9018 bytes

Routing Protocol

RIP-1, RIP-2, static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI

Features

BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, STP support, DHCP snooping, PAgP support, ACL support, QoS, fanless, SRR, MAC Address Notification, RSPAN, Energy Efficient Ethernet, MVR, CoS, WTD

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

26.9 cm x 23.8 cm x 4.44 cm

Weight

2.31 kg

Pricing Type

Refurbished

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

882658920301

General

Device Type

Switch - 12 ports - Managed

Enclosure Type

Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U

Subtype

Gigabit Ethernet

Ports

12 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

240 W

Performance

Forwarding performance: 16 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps

Capacity

Virtual interfaces (VLANs): 1023

Jumbo Frame Support

9018 bytes

Routing Protocol

RIP-1, RIP-2, static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Compliant Standards

RAM

512 MB

Flash Memory

128 MB

Status Indicators

Port status, port transmission speed, port duplex mode, system, link/activity

Expansion / Connectivity

Interfaces

12 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B management ¦ 1 x USB Type A ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x SFP uplink

Power

Power Device

Internal power supply

Power Provided

300 watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

23.5 watt

80 PLUS Certification

80 PLUS Silver

Miscellaneous

Rack Mounting Kit

Optional

MTBF

553,140 hours

Compliant Standards

GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1

Pricing Type

Refurbished

Software / System Requirements

Software Included

Cisco IOS IP Base

Dimensions & Weight

Width

26.9 cm

Depth

23.8 cm

Height

4.44 cm

Weight

2.31 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-25 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 95% (non-condensing)
