Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Advantech WISE-6610 is a robust and versatile gateway designed for Internet of Things (IoT) applications. With a capacity to support up to 100 nodes, it provides efficient connectivity using both wireless and wired technologies. The device operates in harsh environments with a temperature range of -40°C to 75°C and a humidity range of 10 - 95%, making it suitable for various industrial applications. Equipped with advanced security features like SSL and IKEv2 encryption algorithms, the WISE-6610 ensures secure data transmission. The device complies with several standards, including RoHS and IP30, emphasizing its reliability and environmental safety. Networking support encompasses multiple protocols and features, including dynamic DNS, DHCP server, and Quality of Service (QoS), facilitating seamless integration into existing systems and networks.


Specification Summary

Product Description

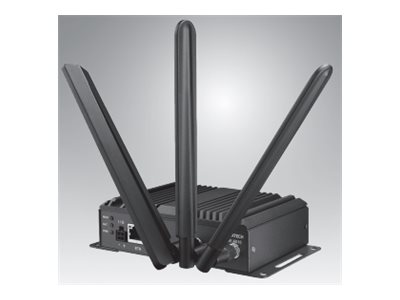

Advantech WISE-6610 - gateway - LoRaWAN
Device Type
Gateway
Form Factor
Wall / DIN rail mountable
Data Link Protocol
Ethernet, Fast Ethernet, LoRaWAN
Frequency Band
868 MHz
Performance
LTE downlink bandwidth: 150 Mbps ¦ LTE uplink bandwidth: 50 Mbps
Capacity
Nodes: 100
Mobile Broadband Access
Yes
Generation
4G, 3G
Mobile Communication Protocol
LTE CAT-M1
Mobile Band
LTE B1/B20/B3/B7/B8
Dimensions (WxDxH)
15 cm x 8.3 cm x 3.75 cm
Weight
500 g
Manufacturer Warranty
5-year warranty

Specifications

General
Device Type
Gateway
Width
15 cm
Depth
8.3 cm
Height
3.75 cm
Weight
500 g
Networking
Form Factor
Wall / DIN rail mountable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, LoRaWAN
Network / Transport Protocol
DHCP, DNS, NTP, SMTP, SMTPS, PPPoE, SFTP, L2TP, PPTP, IPSec
Routing Protocol
VRRP, IGMP, BGP, OSPF, RIP, GRE
Remote Management Protocol
MQTT, SNMP 1, SNMP 2c, SNMP 3, SSH, HTTPS
Frequency Band
868 MHz
Performance
LTE downlink bandwidth: 150 Mbps ¦ LTE uplink bandwidth: 50 Mbps
Capacity
Nodes: 100
Status Indicators
Power, data, WAN, LAN
Features
Auto-uplink (auto MDI/MDI-X), 1.5 KV Magnetic Isolation, reset button, DHCP server, NAT support, PAT support, dynamic DNS client, DNS proxy, VLAN support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NTP client, NTP server, Point-to-Point Protocol (PPP), port forwarding, host port routing, DMZ support, firewall protection, port filtering, IP address filtering, MAC address filtering, OpenVPN client, OpenVPN server, P2P support
Encryption Algorithm
SSL, IKEv1, IKEv2
Aerial
Antenna
External detachable
Antenna Qty
3
Communications
Mobile Broadband Access
Yes
Generation
4G, 3G
Mobile Communication Protocol
LTE CAT-M1
Mobile Band
LTE B1/B20/B3/B7/B8
Supported Flash Memory Cards
microSD
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
LTE Cat M1, LoRaWAN
Expansion / Connectivity
Expansion Slots
2 (total) / 2 (free) x Mini SIM card
Interfaces
1 x 10/100Base-T - RJ-45 ¦ 3 x aerial - RP-SMA ¦ 1 x digital input
Miscellaneous
Compliant Standards
IP30, EN 61000-4-2 Level 3, EN 61000-4-3 Level 3, EN 61000-4-4 Level 3, EN 61000-4-5 Level 3, EN 61000-4-6 Level 3, EN 61000-4-12 Level 3, EN 61000-4-11, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-32, FCC, RED, NCC, RoHS, Directive 2002/95/EC
Power
Power Device
External power adapter (not included)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 95%
