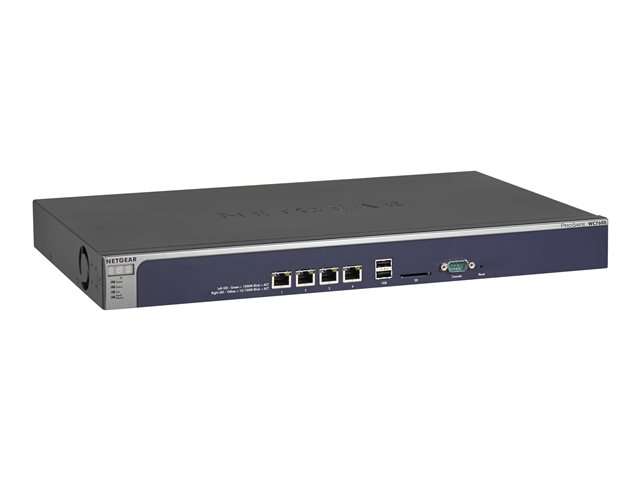

Device Type
Wireless network management device
Bundled with

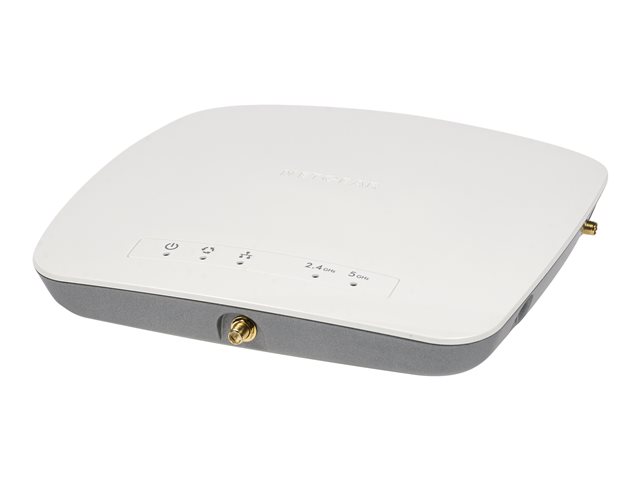

10 x NETGEAR ProSafe Business 3 x 3 Dual Band Wireless-AC Access Point WAC730 and 1x WC10APL license for 10 Access Point management
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, PPP
Network / Transport Protocol
TCP/IP, UDP/IP, ICMP/IP, IPSec, BOOTP, DHCP
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, HTTP, TFTP, SSH
Capacity
Manageable access points: 10 ¦ Maximum number of access points: 15 ¦ BSSIDs: 144 ¦ Concurrent stations: 2000 ¦ Profile groups: 9 ¦ Profiles: 128 ¦ Security profile groups per profile group: 9 ¦ Detectable rogue access points: 512
Features
Auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, IPv6 support, Wi-Fi Multimedia (WMM) support, event log, Access Control List (ACL) support, Quality of Service (QoS), IPv4 support, rogue access point detection, Management Information Base (MIB), rate limit
Encryption Algorithm
DES, Triple DES, RC4, AES, IKE, SSL, TKIP, WPA, PKI, AES-CCMP, AES-CCM, WPA2-PSK, WPA2-Enterprise, AES-CBC, TLS 1.1, WEP
Authentication Method
RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS, LDAP, Active Directory
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.11ac
Interfaces
4 x 1000Base-T - RJ-45 ¦ 1 x console - DB-9 ¦ 1 x USB 2.0 - Type A
Voltage Required
AC 100/230 V
Power Consumption Operational
13 watt
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90%
