Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The WAX610D is truly the next generation of wireless (Wi-Fi 6) AP, especially for businesses looking to strike the right balance between performance and budget. It embodies the full range of Wi-Fi 6 technologies including UL / DL, OFDMA, MU-MIMO, and 1024 QAM, which enables the ultrafast speed of 2975 Mbps. The WAX610D 4x4 (5 GHz) + 2x2 (2.4 GHz) dual-optimized antenna design boasts the effective solution to ensure that it provides smooth and consistently fast service to each client at all times whether it is wall-mounted or ceiling-mounted.

The WAX610D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also, it's efficient on power. The WAX610D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the Wi-Fi 6 technology.


Specification Summary

Product Description

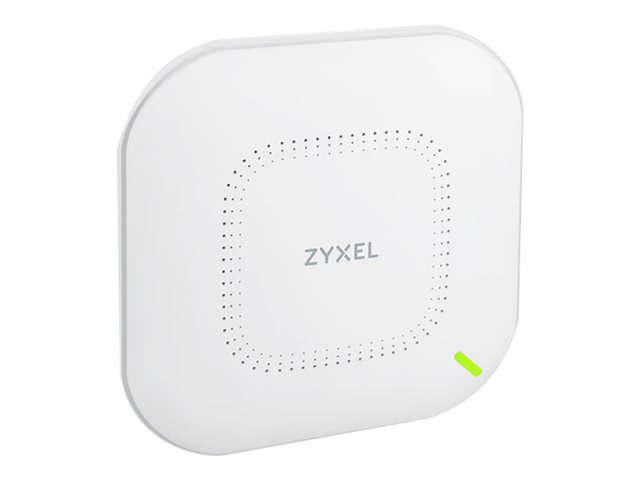

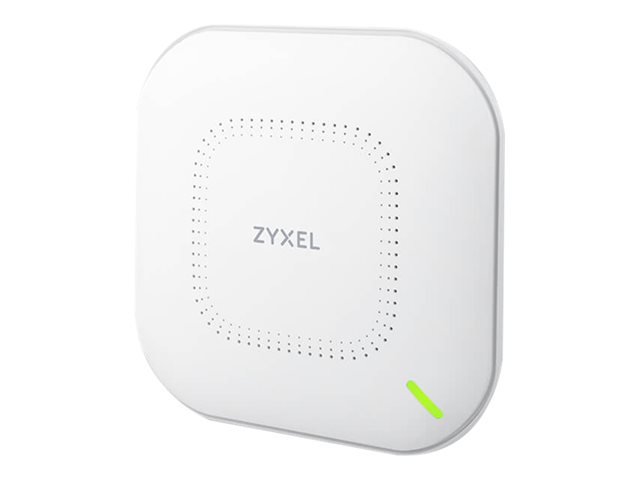

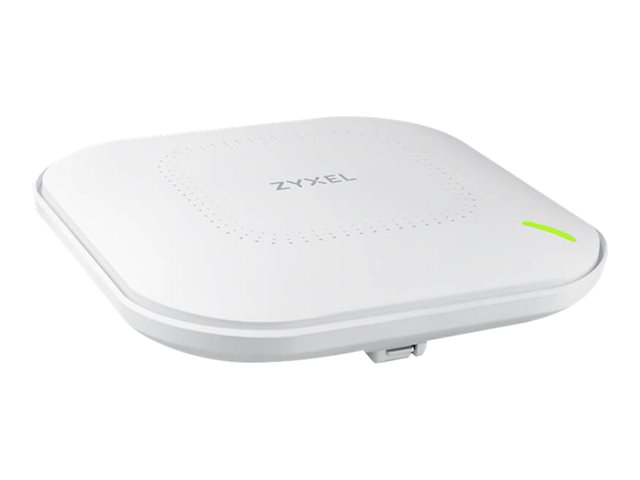

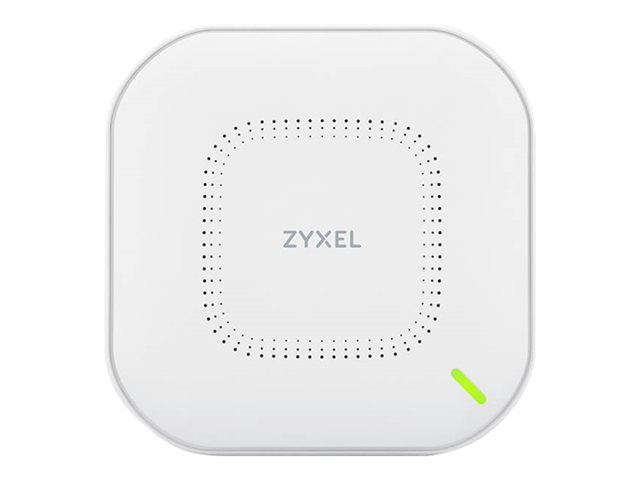

Zyxel WAX610D - radio access point - Wi-Fi 6
Device Type
Radio access point
Form Factor
External
Localisation
Europe
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax
Frequency Band
2.4 GHz, 5 GHz
Included Accessories
Mounting screws, mounting plate
Power Over Ethernet (PoE) Supported
PoE
Dimensions (WxDxH)
18 cm x 18 cm x 3.9 cm
Weight
545 g

Specifications

EAN / GTIN:
4718937612970
General
Device Type
Radio access point
Width
18 cm
Depth
18 cm
Height
3.9 cm
Weight
545 g
Localisation
Europe
Networking
Form Factor
External
Connectivity Technology
Wireless
Line Coding Format
OFDMA
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax
Remote Management Protocol
SNMP, CLI
Frequency Band
2.4 GHz, 5 GHz
Features
Load balancing, VLAN support, DiffServ support, manageable, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, surge protection, Wi-Fi Multimedia (WMM) support, rogue access point detection, MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), band steering, Fast Roaming, Dynamic Channel Selection (DCS), Wireless Mesh support
Encryption Algorithm
WPA, WPA2, WEP, WPA3, WPA3-Enterprise, WPA2-Personal
Authentication Method
RADIUS, Extensible Authentication Protocol (EAP)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Aerial
Antenna
Internal
Expansion / Connectivity
Interfaces
1 x 1/2.5GBase-T (PoE) - RJ-45 - 19 W ¦ 1 x 1000Base-T (uplink) - RJ-45
Miscellaneous
Included Accessories
Mounting screws, mounting plate
MTBF
329,004 hours
Compliant Standards
EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17
Power
Power Over Ethernet (PoE) Supported
PoE
Power Device
External power adapter
Dimensions & Weight (Shipping)
Shipping Width
22.9 cm
Shipping Depth
21.6 cm
Shipping Height
6.4 cm
Shipping Weight
780 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
