EAN / GTIN:
4897098685259
Device Type
Wireless router - 3-port switch (integrated)
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band
2.4 GHz / 5 GHz
Performance
Maximum data rate (5 GHz): 1201 Mbps ¦ Maximum data rate (2.4 GHz): 574 Mbps
Capacity
Maximum number of accounts: up to 8 ¦ IPSec VPN tunnels: 16
Network / Transport Protocol
PPTP, IPSec, IPoA, IPoE, FTP, DHCP, DNS, HTTP, IPv4, IPv6, OpenVPN
Routing Protocol
RIP-1, RIP-2, IGMP, static IP routing
Remote Management Protocol
HTTP, HTTPS, TR-069, TR-111, DHCP, TR-181, TR-143
Encryption Algorithm
SSL, WPA, WPA2, WPS, WPA3
Authentication Method
Radio Service Set ID (SSID)
Features
NAT support, VLAN support, ALG support, MAC address filtering, parental control, WMM support, TFTP support, ACL support, QoS, virtual server support, DHCP server, Samba support, Multiple SSID support, reset button, port triggering, DHCP relay, SPIF, 3G/4G USB Dongle Support, IP-MAC binding, DNS relay, DHCP client, VoIP support, DDoS, MU-MIMO technology, system log, beamforming technology, network diagnostics, Wireless Scheduler, dual band, DMZ support, ATF, DynDNS, WPS button, EasyMesh, Guest Network, Address Reservation, Service Filtering, Wi-Fi on/off button, configuration backup/update/restore default via Web
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Line Coding Format
1024 QAM, OFDMA
Framing Format
ANSI T1.413i2
Digital Signaling Protocol
ADSL, VDSL, ADSL2, ADSL2+, VDSL2
Protocols & Specifications
ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5, ITU G.993.2, ITU G.995.1, ITU G.998.4, ITU G.993.5
Max Transfer Rate
350 Mbps
Telephony Interfaces
1 phone (FXS)
IP Telephony Features
Call forwarding, voicemail, Do-not-disturb (DND) support, call blocking, call rules, logs

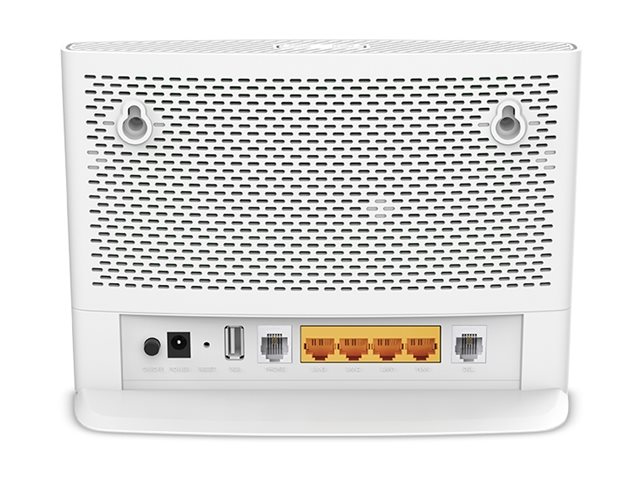

Interfaces
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 ¦ Phone line: 1 x FXS ¦ USB 2.0: 1 x
Power Device
External power adapter
Included Accessories
ADSL splitter
Cables Included
1 x network cable ¦ 1 x RJ-11 cable
Software / System Requirements
OS Required
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
