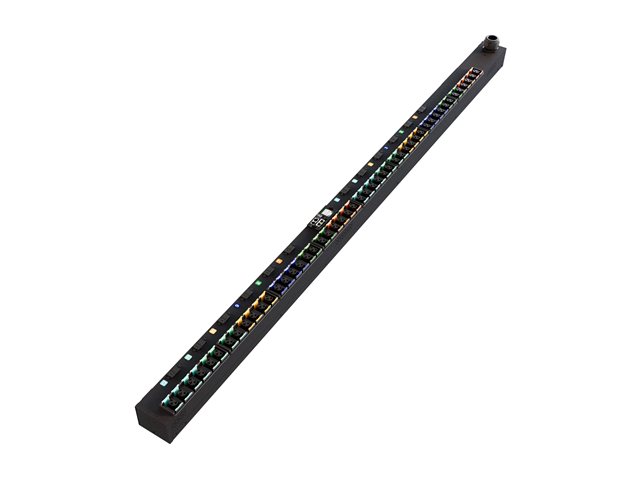

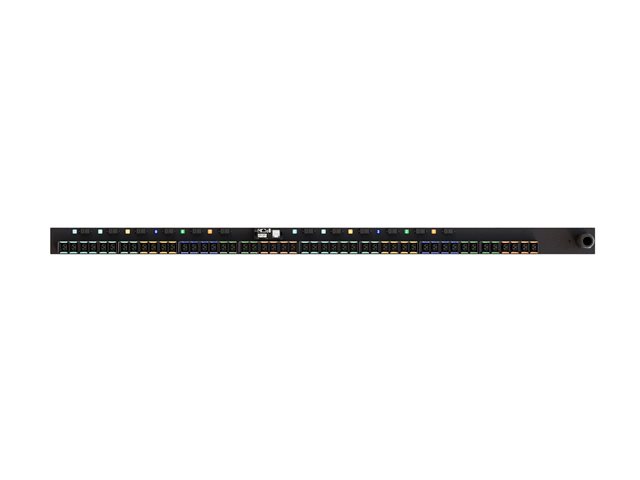

Device Type
Power distribution unit - rack-mountable
Input Voltage
AC 200-240/346-415 V
Frequency Provided
50/60 Hz
Input Connectors
1 x power IEC 60309 3P+N+E
Power Output Connectors Details
36 x power IEC 60320 C13/C19
Output Voltage
AC 240 V 50/60 Hz
Max Electric Current
63 A
Remote Management Interface
Ethernet 10/100/1000, RS-232, USB
Remote Management Protocol
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x USB ¦ 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x sensor - RJ-12
Cables Included
Power cable 3 m
Rack Mounting Kit
Included
Features
Vertical mount, upgradeable, monitored, Interchangeable Monitoring Device (IMD) module, circuit/breaker current monitoring, daisy chain functionality, 12 x 20A single pole magnetic breakers, 10kAIC breaker, breaker/switch combination, touch screen LCD display, LED indicators, splash-proof plug, colour-coded labels, banks of 6 style, hard reboot button, IP reset button
Compliant Standards
IP44, UL/CUL 62368-1, UKCA, IEC 62368-1, EN 55032, EN 55035, RoHS, RCM, FCC Part 15 A, China RoHS, ANSI C12.1, IEC 62053-21
Service & Support
Limited warranty - 5 years with product registration (within 120 days of purchase) ¦ Limited warranty - 3 years
Max Operating Temperature
60 °C
