Geist Monitored Unit Level DU05M4B1-30CF17-2S02A9K

Images Manuals

Geist Monitored Unit Level DU05M4B1-30CF17-2S02A9K00-S-A

Images for illustrative purposes

Geist Monitored Unit Level DU05M4B1-30CF17-2S02A9K00-S-A

View all VERTIV Uncategorised - Visit the VERTIV Store (VP4UV0A2) - (MMECL55046)

Geist Monitored Unit Level DU05M4B1-30CF17-2S02A9K00-S-A - power distribution unit - 22 kW

Efficient power distribution
Robust circuit protection
Advanced monitoring capabilities
Versatile remote management
Compliance with standards

FREE Delivery on orders over €250

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED.

5 Available to Ship
Order within 12Hrs 19Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€2175.24~~

€1629.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

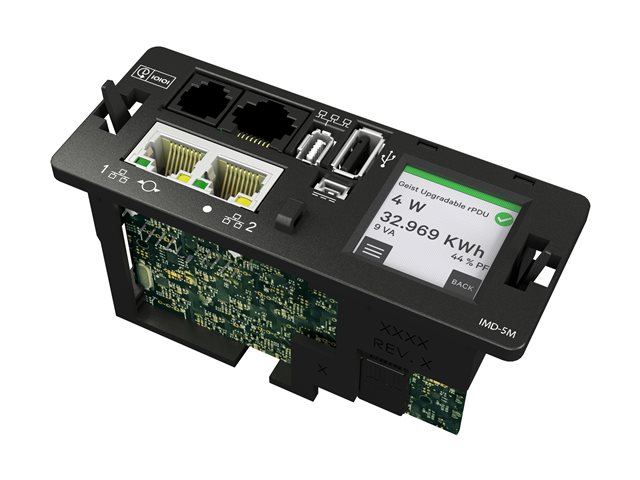

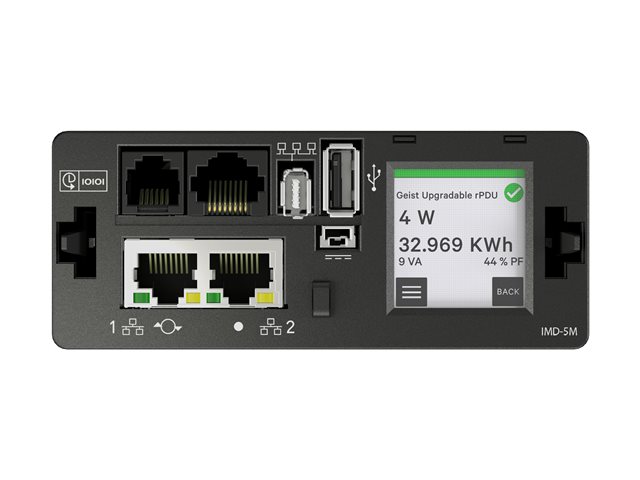

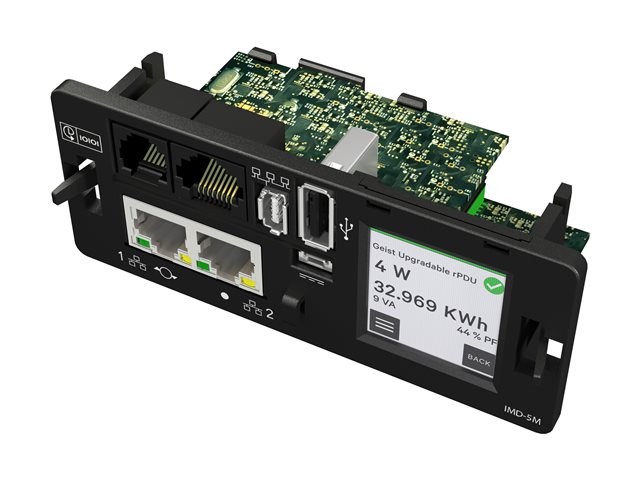

The Vertiv Geist VP4UV0A2 is a versatile rack power distribution unit with a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.

Features Summary

Efficient power distribution
This power distribution unit features 30 output connectors, providing ample options for distributing power across multiple devices while ensuring reliable performance.
Robust circuit protection
Incorporating circuit breakers, this unit safeguards connected equipment against overload and short-circuit events, enhancing the overall safety of the power management system.
Advanced monitoring capabilities
Equipped with internal RMS voltage and current sensors, this unit allows real-time monitoring of electrical parameters to facilitate proactive management of power usage.
Versatile remote management
Support for numerous remote management protocols, including SNMP and HTTP, enables efficient system monitoring and control, allowing users to manage their power distribution remotely.
Compliance with standards
This unit adheres to various industry standards such as UL and RoHS, ensuring it meets essential safety and environmental regulations.

Specification Summary

Product Description

Geist Monitored Unit Level DU05M4B1-30CF17-2S02A9K00-S-A - power distribution unit - 22 kW

Device Type

Power distribution unit

Rack Size

Input Wiring

3-phase / 1-phase

Input Voltage

AC 240/415 V

Power Capacity

22 kW

Input Connectors

1 x universal inlet

Output connectors

30 x power IEC 60320 C13/C19

Networking

Ethernet 10/100/1000, USB, RS-232

Remote Management Protocol

DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON

Colour

Black powder coat

Dimensions (WxDxH)

5.1 cm x 6.4 cm x 168.2 cm

Manufacturer Warranty

5-year warranty

Specifications

EAN / GTIN:

4061471343924

General

Device Type

Power distribution unit

Height (Rack Units)

Colour

Black powder coat

Power Device

Input Voltage

AC 240/415 V

Input Wiring

3-phase / 1-phase

Frequency Required

50/60 Hz

Input Connectors

1 x universal inlet

Power Output Connectors Details

30 x power IEC 60320 C13/C19

Max Electric Current

63 A

Power Capacity

22 kW

Circuit Protection

Circuit breaker

Networking

Remote Management Interface

Ethernet 10/100/1000, USB, RS-232

Remote Management Protocol

DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON

Expansion / Connectivity

Interfaces

2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB

Miscellaneous

Cables Included

Power cable 3 m

Features

Vertical orientation, breaker/switch combination, LED display, circuit/breaker current monitoring, IP reset button, hard reboot button, internal RMS current sensor, internal RMS voltage sensor, 6 x 16A double pole magnetic breakers

Compliant Standards

RoHS, UKCA, FCC Part 15 A, C-UL, UL, UL 62368-1

Manufacturer Warranty

Service & Support

Limited hardware warranty - 5 years with product registration (within 120 days of purchase) ¦ Limited warranty - 3 years

Environmental Parameters

Max Operating Temperature

60 °C

Dimensions & Weight

Width

5.1 cm

Depth
