Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Vision's vision flat-panel mount - wall range is flexible and includes everything you need to get the display on the wall. The VFM-W8X4V fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 400 mm tall apart. It has a simple design for price-sensitive applications.


Features Summary

  • SWL 60kg
    Vision engineered the cost down by using less material, but it can still support displays weighing up to 60 kg / 132.28 lb.
  • For 47-75" displays
    Fits most displays from 47-75" subject to VESA pattern and weight limit.
  • Flexible
    A proven design allows fast fixing. Slotted holes on the horizontal part allow easy fixing to stud walls, and side-to-side adjustment.
  • Secure
    Once in place locking strips slide up to prevent the assembly being lifted off the bracket by opportunistic thieves.
  • Non-tilt
    Strength comes from a simpler non-tilting design.

Specification Summary

Product Description

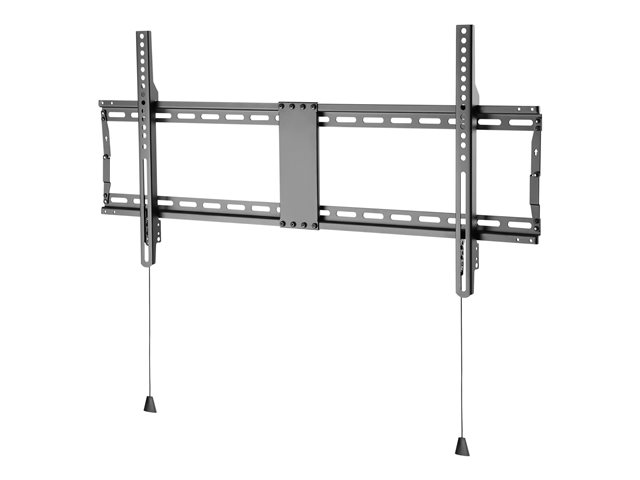

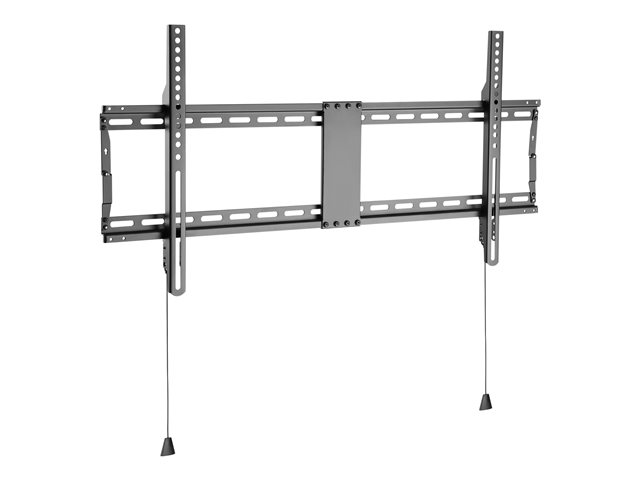

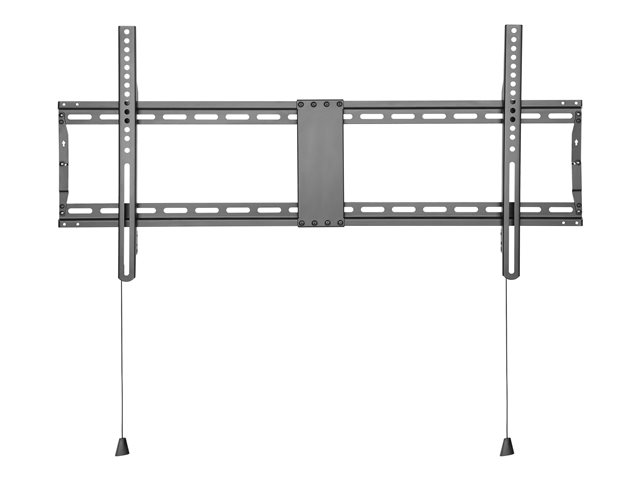

Vision VFM-W8X4V/2 mounting kit - for flat panel - black
Product Type
Mounting kit - lockable
Mounting Components
Wall mount

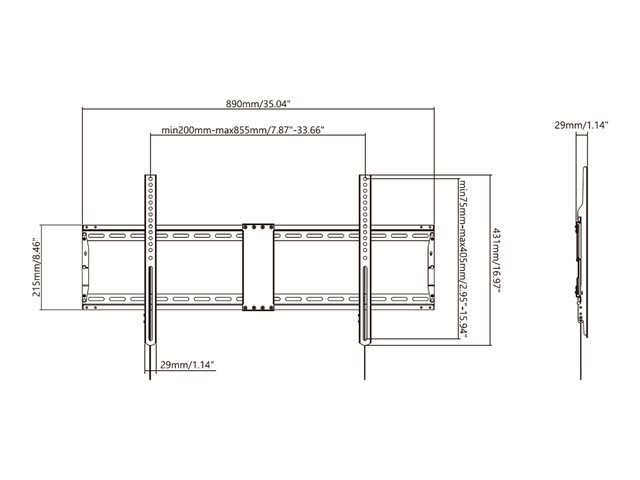

Dimensions (WxDxH)
89 cm x 2.9 cm x 43.1 cm
Weight
2.21 kg
Recommended Use
Flat panel
Recommended Display Size
47"-75"
VESA Mounting Interface
200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm
Max Load Weight
60 kg
Material
Cold-rolled steel
Colour
Black
Package Content
4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, 4 x M8x50 screws
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
6333313000004
General
Width
89 cm
Depth
2.9 cm
Height
43.1 cm
Weight
2.21 kg
Material
Cold-rolled steel
Colour
Black
Package Content
4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, 4 x M8x50 screws
AV Furniture
Type
Mounting kit
Mounting Components
Wall mount
Recommended Use
Flat panel
VESA Mounting Interface
200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 700 x 400 mm, 800 x 400 mm
Lockable
Yes
Recommended Display Size
47"-75"
Max Load Weight
60 kg
Lock Type
Padlock (not included)
Assembly Required
Partial
Finish
Powder coated
Dimensions & Weight Details
Shipping Dimensions (WxDxH) / Weight
45 cm x 8.7 cm x 7.5 cm / 2.5 kg
Manufacturer Warranty
Service & Support
Limited warranty - return - lifetime - depot
