Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.This wall mount is designed by Vision's engineering team for professional AV installers. It's a no-compromise solution: very strong, fast to install and highly adjustable.
Features Summary
- Designed for professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing leveling adjustment after fixing. - Latches securely

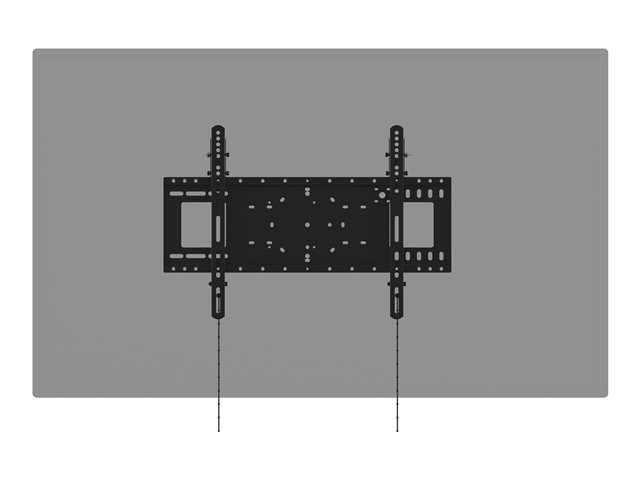

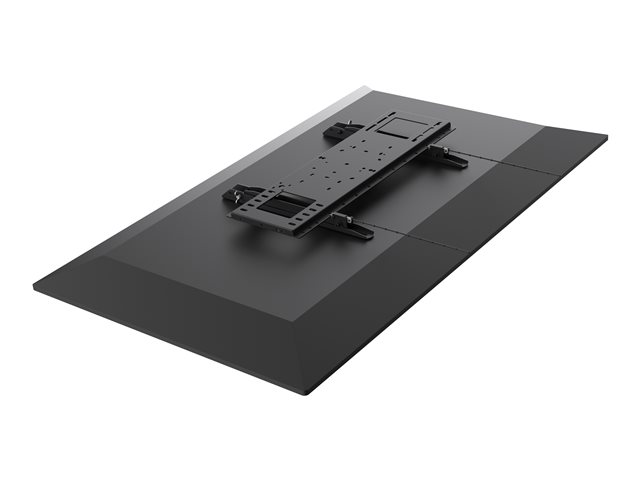

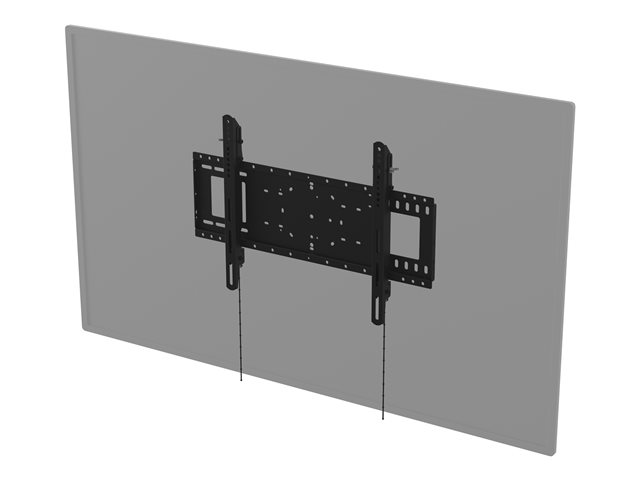

The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display. - Side by side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
Specification Summary
Product Description

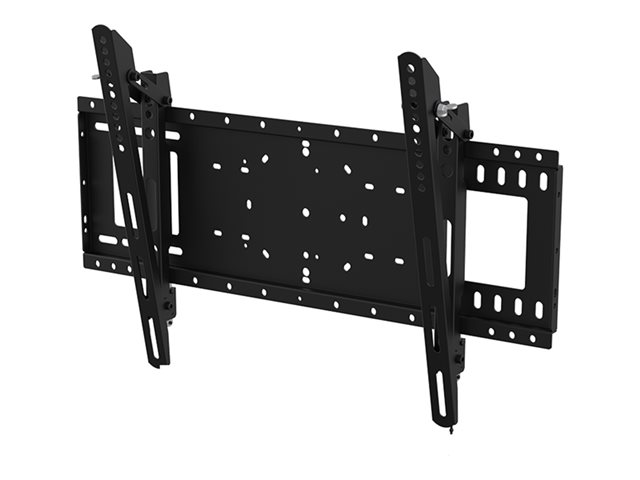

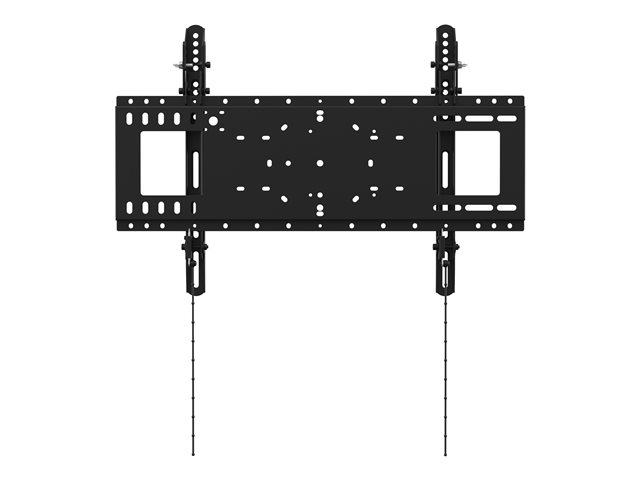

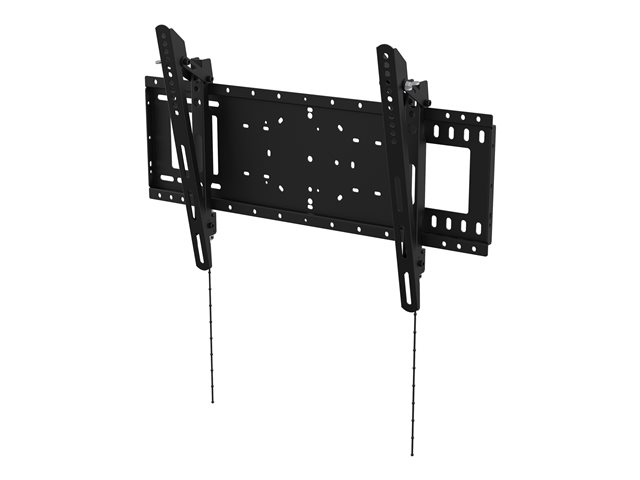

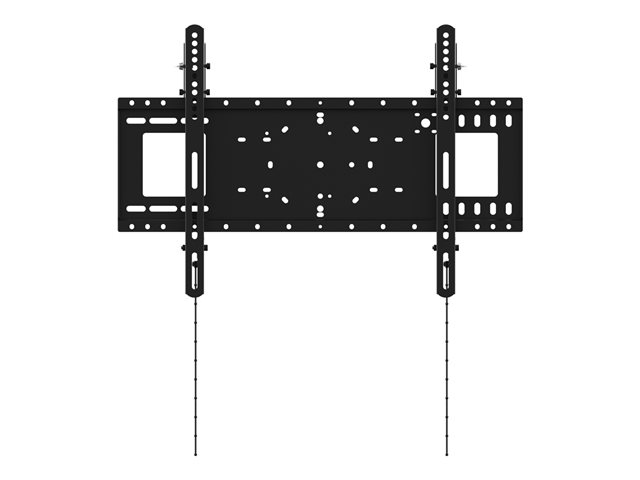

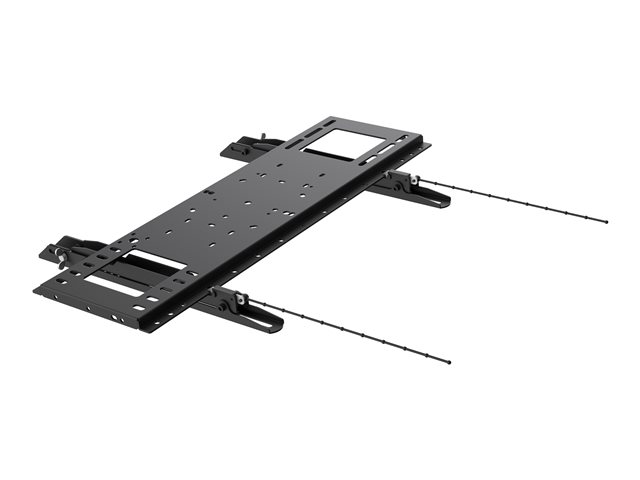

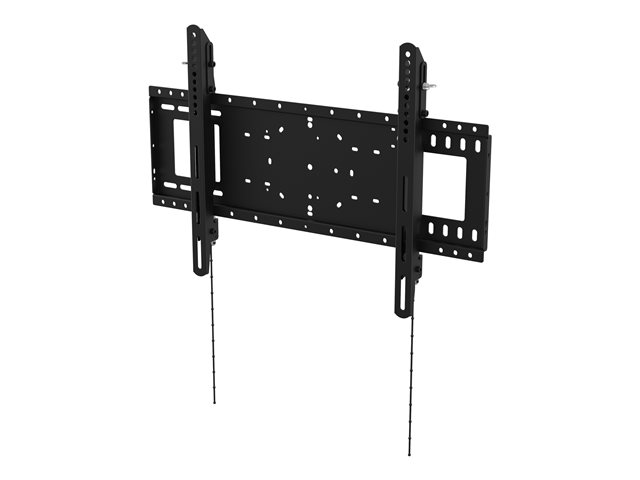

Vision VFM-W6X4T bracket - tilt - for flat panel - black
Product Type
Bracket (tilt) - wall-mountable

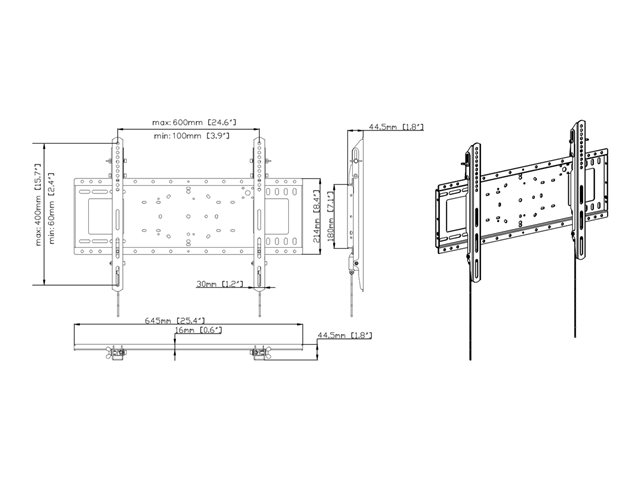

Dimensions (WxDxH)
64.5 cm x 4.45 cm x 43.5 cm
Adjustments
Levelling, tilt
Recommended Use
Flat panel
Recommended Display Size
37"-75"
VESA Mounting Interface
200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 300 x 300 mm, 600 x 300 mm, 500 x 400 mm, 500 x 500 mm, 500 x 300 mm, 300 x 400 mm
Material
Cold-rolled steel
Package Content
4 x M6x16 screws, 4 x M6x25 screws, 4 x M5x16 screws, 4 x M8x16 screws, 4 x M8x35 screws, 2 x M8x45 screws
Manufacturer Warranty
Limited lifetime warranty
