Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.Vision's Vision Flat-panel Mount - Wall range is flexible and includes everything you need to get the display on the wall. The VFM-4X4V fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 wide x 400 mm tall apart. It has a simple design for price-sensitive applications.
Features Summary
- SWL 60kg
Vision engineered the cost down by using less material, but it can still support displays weighing up to 60 kg / 132 lb. - Everything included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display. - For 32-55" displays
Fits most displays from 32-55" subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount. - Meets ADA regulations
The thin design holds the display just 30 mm / 1.2" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating. - Flexible
A proven design allows fast fixing. Slotted holes on the horizontal part allow easy fixing to stud walls, and side-to-side adjustment. - Secure
Once in place locking strips slide up to prevent the assembly being lifted off the bracket by opportunistic thieves. - Non-tilt
Strength comes from a simpler non-tilting design.
Specification Summary
Product Description
Vision mounting kit - fixed - for LCD display - black
Product Type
Mounting kit (fixed) - lockable
Mounting Components
Wall mount

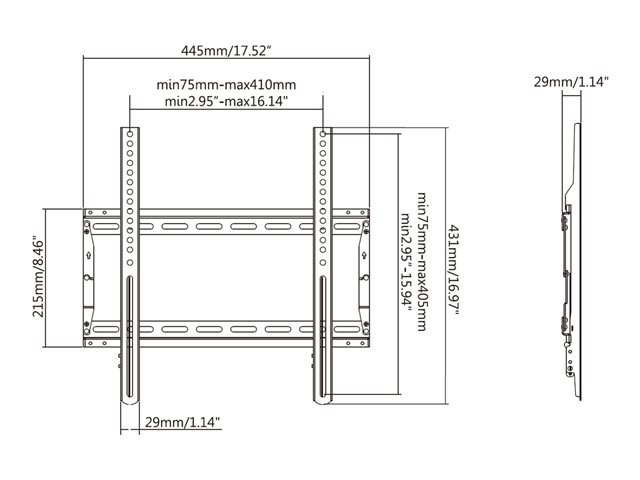

Dimensions (WxDxH)
44.5 cm x 2.9 cm x 43.1 cm
Recommended Use
LCD display
Recommended Display Size
32"-65"
VESA Mounting Interface
200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm
Material
Cold-rolled steel
Package Content
4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, 4 x M8x50 screws
Manufacturer Warranty
Limited lifetime warranty
