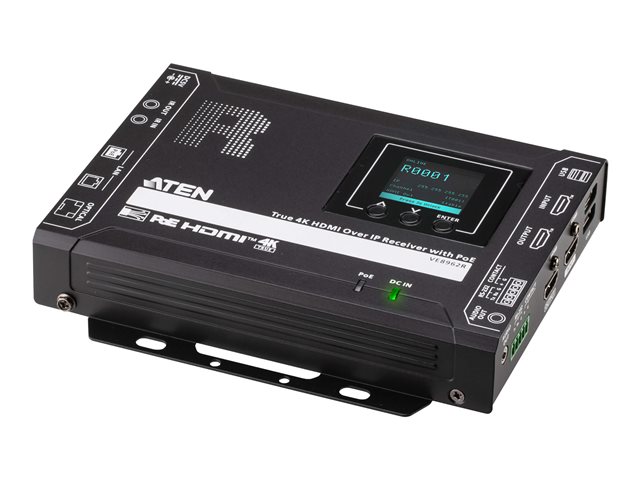

Device Type
Video/audio/infrared/USB/serial extender (receiver)
Form Factor
Rack-mountable
Built-in Devices
LCM display
Connectivity Technology
Wired
Remote Management Protocol
Telnet, CLI, SSH, HTTPS
Max Resolution
4096 x 2160 / 3840 x 2160 @ 60 Hz
Max Transfer Distance
10 km
Features
4:4:4 chroma subsampling support, metal housing, bi-directional IR, LPCM 7.1 support, 8KV/15KV ESD Protector, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD Master Audio support, EDID mode, video wall support
Compliant Standards
HDCP 2.3, HDCP 2.2, IEEE 802.3at
Interfaces
2 x network - RJ-45 female ¦ 1 x HDMI input female ¦ 1 x HDMI output female ¦ 1 x IR input - mini jack female ¦ 1 x audio line-out - mini jack female ¦ 1 x IR output - mini jack female ¦ 1 x network - SFP+ female ¦ 1 x RS-232 - 3 pin terminal block ¦ 2 x USB 2.0 - Type A female ¦ 1 x contact input - 2 pin terminal block
Compliant Standards
AES-256
Power Over Ethernet (PoE)
PoE+
Power Device
External power adapter / power injector
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% (non-condensing)
