ATEN VE1833 - video/audio/infrared/USB/serial exte

Images Manuals

Images for illustrative purposes

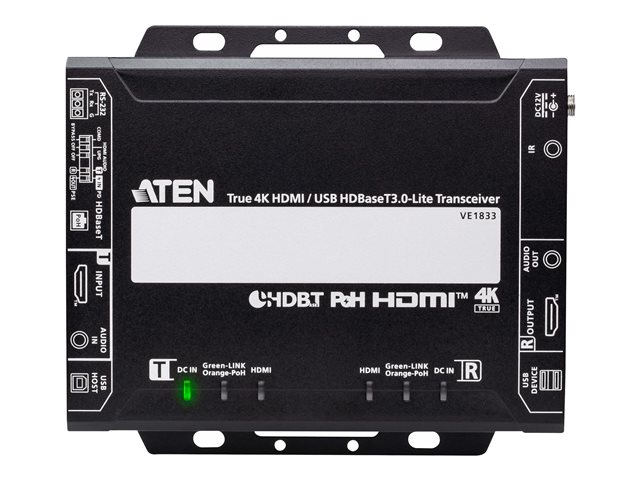

ATEN VE1833

View all ATEN Repeaters | Tranceivers - Visit the ATEN Store (VE1833-AT-E) - (ECE11868421)

VE1833 - Video/audio/infrared/USB/serial extender - HDBaseT 3.0, USB 2.0, HDMI, RS-232 - up to 40 m

Reliable connectivity
High resolution support
Durable design
Advanced video features
Flexible installation options

FREE Delivery on orders over €250

0 Available to Ship
Restock 26-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€569.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ATEN VE1833 is a versatile video/audio/infrared/USB/serial extender featuring a robust design that ensures reliable connectivity for various applications. With support for resolutions up to 4096 x 2160, this device allows for seamless video transmission, making it suitable for both home and professional use. The extender boasts a data transfer rate of 18 Gbps, ensuring high-quality audio and video performance. Equipped with multiple connection types including HDMI input and output, RS-232, and a 3-pin terminal block, it offers flexibility in setup and integration with existing systems.

Built with a durable metal housing, the VE1833 is designed for longevity and stability. With firmware upgrade options, the device stays compatible with future technology updates. The support for HDR, Deep Color, and Dolby Vision elevates the viewing experience, while the bidirectional capabilities and Power over Ethernet (PoE) functionality enhance operational efficiency in any environment.

Specification Summary

Product Description

ATEN VE1833 - video/audio/infrared/USB/serial extender - HDBaseT 3.0, USB 2.0, HDMI, RS-232

Device Type

Video/audio/infrared/USB/serial extender

Form Factor

External

Data Transfer Rate

18 Gbps

Data Link Protocol

HDBaseT 3.0, USB 2.0, HDMI, RS-232

Max Transfer Distance

40 m

Power Over Ethernet (PoE)

PoH

Dimensions (WxDxH)

12.49 cm x 16.6 cm x 2.9 cm

Weight

640 g

Manufacturer Warranty

3-year warranty

Specifications

General

Device Type

Video/audio/infrared/USB/serial extender

Form Factor

External

Networking

Connectivity Technology

Wired

Data Link Protocol

HDBaseT 3.0, USB 2.0, HDMI, RS-232

Data Transfer Rate

18 Gbps

Max Resolution

4096 x 2160 / 3840 x 2160 @ 60 Hz

Max Video Bandwidth

600 MHz

Max Transfer Distance

40 m

Status Indicators

HDBT, HDMI

Features

4K resolution support, 4:4:4 chroma subsampling support, HDR support, HDR+ support, Dolby Vision support, bidirectional, 3D support, Deep Colour support, firmware upgradable, 8KV/15KV ESD Protector, metal housing

Compliant Standards

HDCP 2.2, HDCP 2.3, USB 2.0

Expansion / Connectivity

Interfaces

1 x HDMI input - 19 pin HDMI Type A female ¦ 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x audio line-in - mini jack female ¦ 1 x audio line-out - mini jack female ¦ 1 x HDBaseT - RJ-45 ¦ 1 x RS-232 (control) - 3 pin terminal block ¦ 2 x USB 2.0 - Type A female ¦ 1 x USB 2.0 - Type B female ¦ 1 x IR - mini jack female

Miscellaneous

Included Accessories

Power adapter, RS-232 terminal block

Cables Included

Power cable

Power

Power Over Ethernet (PoE)

PoH

Power Device

External power adapter

Dimensions & Weight

Width
