ATEN - video/audio/infrared/serial extender - HDBa

Images Manuals

Images for illustrative purposes

ATEN

View all ATEN Repeaters | Tranceivers - Visit the ATEN Store (VE1833) - (ECE12971256)

Video/audio/infrared/serial extender - HDBaseT 3.0, HDBaseT Lite - over CAT 6a - up to 40 m

Versatile connectivity
Enhanced visual quality
Robust protection
Easy installation

FREE Delivery on orders over €250

0 Available to Ship
Restock 26-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€589.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

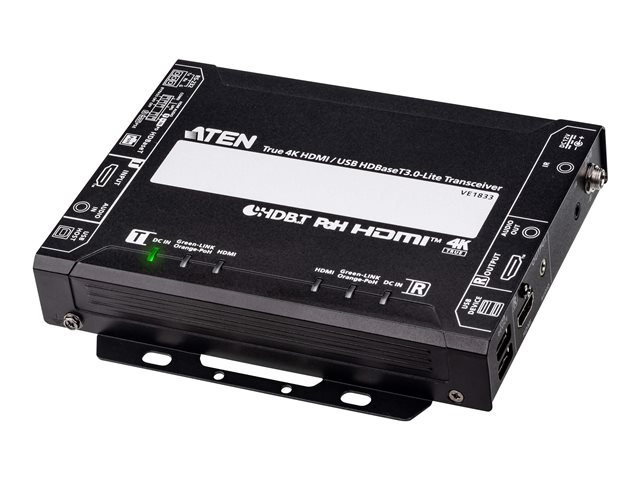

The ATEN VE1833 is a video/audio/infrared/serial extender that offers connectivity for a variety of devices. It supports a maximum video resolution of 4096 x 2160 and bandwidth of 18 Gbps, ensuring clear visuals with HDR and Dolby Vision support. Built with a rack-mountable design, it is suitable for professional settings where space and organization matter. The VE1833 includes multiple connectors such as HDMI input/output, USB 2.0, and RS-232, allowing for integration into existing setups.

Designed for reliability, the VE1833 operates within a temperature range from 0°C to 40°C and can function effectively in environments with 0 - 80% humidity. It features bi-directional capabilities for IR and power over HDBaseT, along with ESD protection for durability. The device also supports firmware upgrades to maintain performance. This connectivity solution enhances multimedia experiences in various applications.

Specification Summary

Product Description

ATEN - video/audio/infrared/serial extender - HDBaseT 3.0, HDBaseT Lite

Device Type

Video/audio/infrared/serial extender

Form Factor

Rack-mountable

Data Link Protocol

HDBaseT 3.0, HDBaseT Lite

Transmission Medium

CAT 6a

Max Transfer Distance

40 m

Dimensions (WxDxH)

12.49 cm x 16.6 cm x 2.9 cm

Weight

640 g

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4710469349829

General

Device Type

Video/audio/infrared/serial extender

Form Factor

Rack-mountable

Networking

Connectivity Technology

Wired

Data Link Protocol

HDBaseT 3.0, HDBaseT Lite

Max Resolution

4096 x 2160 / 3840 x 2160 @ 60 Hz

Max Video Bandwidth

600 MHz

Max Transfer Distance

40 m

Status Indicators

Power, link, HDMI input, HDMI output

Features

Bi-directional RS-232, 4:4:4 chroma subsampling support, bi-directional power over HDBaseT (PoH), Dolby Vision support, HDMI audio support, HDR support, HDR+ support, 3D support, Deep Colour support, firmware upgradable, 8KV/15KV ESD Protector, 18 Gbps bandwidth, metal housing, bi-directional IR

Compliant Standards

HDCP 2.3, HDCP 2.2

Expansion / Connectivity

Interfaces

1 x HDMI output - Type A female ¦ 1 x HDMI input - Type A female ¦ 1 x HDBaseT - RJ-45 female ¦ 1 x audio line-out - mini jack female ¦ 1 x audio line-in - mini jack female ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x IR - mini jack female ¦ 1 x USB host - Type B female ¦ 2 x USB 2.0 - Type A

Miscellaneous

Included Accessories

Power cable, RS-232 terminal block

Compliant Standards

Plug and Play

Power

Power Device

External power adapter

Dimensions & Weight

Width

12.49 cm

Depth
