Startech - Extender Kit - short-haul modem - 10Mb

Images Manuals

Images for illustrative purposes

Startech

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (VDSL-LAN-EXTENDER-EU) - (ECE12260559)

Startech - Extender Kit - short-haul modem - 100Mb LAN, Ethernet over VDSL2 - 10Base-T, 100Base-TX - 4 ports - up to 1 km - TAA Compliant

Extend Network Connectivity
Thoughtful Design
Versatile Applications

FREE Delivery on orders over €250

4 Available to Ship
Order within 17Hrs 8Mins for: FREE Delivery (8 Jun or 9 Jun)

€449.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity. The Long-Range LAN Extender can be mounted on a wall using the included hardware or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension. This product is backed for 2-years and free lifetime 24/5 multi-lingual technical assistance.

Features Summary

Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design
The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications

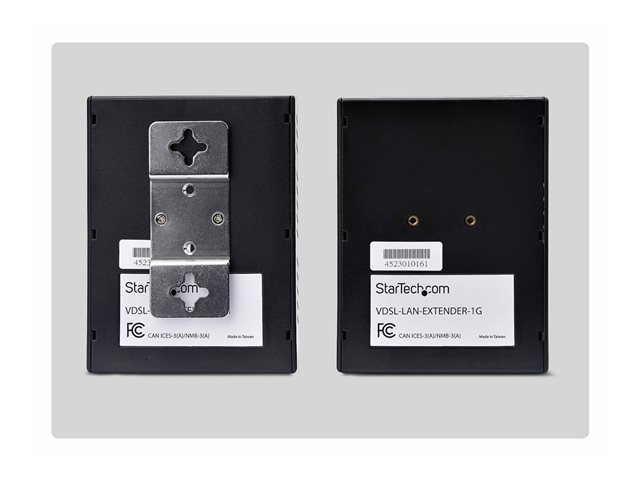

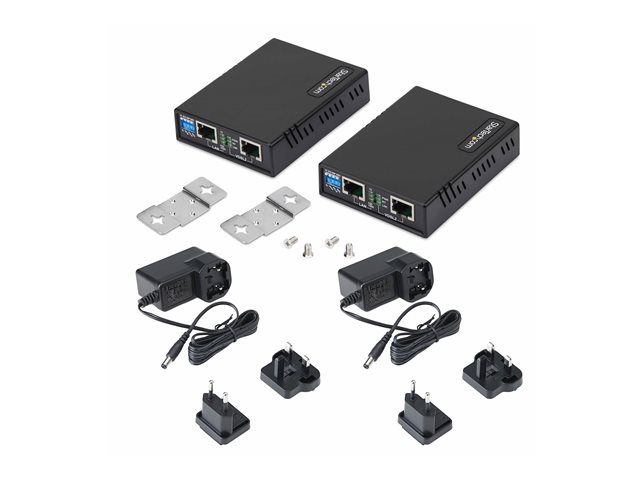

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.

Specification Summary

Product Description

Startech - Extender Kit - short-haul modem - 10Mb LAN, 100Mb LAN, Ethernet over VDSL2 - TAA Compliant

Device Type

Short-haul modem

Ports Qty

Form Factor

Surface / wall mountable

Localisation

Europe

Cabling Type

10Base-T, 100Base-TX

Data Transfer Rate

300 Gbps

Frequency Band

30 MHz

Data Link Protocol

10Mb LAN, 100Mb LAN, Ethernet over VDSL2

Max Transfer Distance

1 km

Power

DC 12 V

Dimensions (WxDxH)

7.2 cm

Weight

110 g

TAA Compliant

Yes

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030916936

General

Device Type

Short-haul modem

Form Factor

Surface / wall mountable

Colour

Black

Localisation

Europe

Networking

Ports Qty

Connectivity Technology

Wired

Cabling Type

10Base-T, 100Base-TX

Data Link Protocol

10Mb LAN, 100Mb LAN, Ethernet over VDSL2

Data Transfer Rate

300 Gbps

Frequency Band

30 MHz

Max Transfer Distance

1 km

Status Indicators

Power, status, link/speed, master, remote

Features

Auto-uplink (auto MDI/MDI-X), surge protection, plastic housing, built-in DIP switch, G.INP, VLAN Tagging, VDSL2 profiles 17a, 30a, 35b profiles support

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q

Expansion / Connectivity

Interfaces

2 x Ethernet 10Base-T/100Base-TX (local unit) - RJ-45 female ¦ 2 x Ethernet 10Base-T/100Base-TX (remote unit) - RJ-45 female

Miscellaneous

Included Accessories

2 mounting brackets

MTBF

50,000 hours

Compliant Standards

RoHS, WEEE

TAA Compliant

Yes

Power

Power Device

External power adapter

Installed Qty

Voltage Required

DC 12 V

Power Consumption Operational

3.8 Watt

Dimensions & Weight

Width

7.2 cm

Weight

110 g

Dimensions & Weight (Shipping)

Shipping Width

18 cm

Shipping Depth

15 cm

Shipping Height

13 cm

Shipping Weight

700 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

0 - 95% RH (non-condensing)
