Epson EB-L695SU - 3LCD projector - 802.11a/b/g/n/a

Images Manuals

Images for illustrative purposes

Epson EB-L695SU

View all EPSON LCD Projectors - Visit the EPSON Store (V11HB31140) - (ECE11836082)

EB-L695SU - 3LCD projector - 6200 lumens - WUXGA (1920 x 1200) - 16:10 - 802.11a/b/g/n/ac wireless / LAN/ Miracast - black

Spectacular short throw professional projector
Flexible installation for professional setups
Smart control for seamless experience
Environmentally friendly design
Stream and share easily

FREE Delivery on orders over €250

2 Available to Ship
Order within 2Hrs 37Mins for: FREE Delivery (8 Jun or 9 Jun)

€3805.90 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Designed for compact spaces, the EB-L695SU short-throw offers 6,200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.

Features Summary

Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79–1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.
Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson's EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity 2 and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Stream and share easily
With Apple AirPlay 2 and Miracast connectivity 1 , sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.

Specification Summary

Product Description

Epson EB-L695SU - 3LCD projector - 802.11a/b/g/n/ac wireless / LAN/ Miracast - black

Device Type

3LCD projector

Colour

Black

Built-in Devices

Speaker

Localisation

Philippines

Brightness

6200 lumens

Contrast Ratio

5000000:1 (dynamic)

Resolution

WUXGA (1920 x 1200)

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Bulb type

Laser

Bulb life cycle

Up to 20000 hour(s) - normal mode ¦ Up to 30000 hour(s) - economic mode

Video Input

IEEE 802.11a/b/g/n/ac wireless / LAN/ Miracast

Speakers

Speaker(s) - integrated

Environmental Standards

TCO Certified Projectors 9

Power

AC 100-240 V (50 - 60 Hz)

Power Consumption Operational

336 Watt

Dimensions (WxDxH)

44 cm x 36.2 cm x 15.1 cm

Weight

8.9 kg

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

8715946738017

General

Device Type

3LCD projector

Built-in Devices

Speaker

Networking

802.11a/b/g/n/ac, Ethernet

Enclosure Colour

Black

Localisation

Philippines

Projector

Brightness

6200 lumens

Brightness (Reduced)

4340 lumens

Contrast Ratio

5000000:1 (dynamic)

Image Size

152.4 cm - 1016 cm

Projection Distance

1 m - 11.9 m

Throw Ratio

0.79 - 1.36:1

Digital Zoom Factor

1.7x

Resolution

WUXGA - WUXGA (1920 x 1200)

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Bulb type

Laser

Bulb life cycle

Up to 20000 hour(s) - normal mode ¦ Up to 30000 hour(s) - economic mode

Controls & Adjustments

Keystone correction

Features

Edge blending, Split Screen, PJlink, DICOM Simulation Mode, Direct Power On, Direct Power Off, Dynamic Mode, SNMP support, AMX Control System, document camera compatible, Presentation Mode, Cinema Mode, Natural Mode, 21:9 aspect ratio support, AV mute, screen mirroring, web control, web remote

Lens

Focus Type

Manual

Lens Aperture

F/1.7 - 2.1

Zoom Type

Manual

Keystone Correction Direction

Horizontal, vertical

Vertical Keystone Correction

-50 / +50

Horizontal Keystone Correction

-20 / +20

Video Input

Video Interfaces

HDMI

LAN and Wireless Image Transferring Protocols

IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11a, IEEE 802.11n, NFC (Near Field Communication), Miracast, IEEE 802.11ac

Speakers

Type

Integrated

Output Power / Channel

10 Watt

Expansion / Connectivity

Interfaces

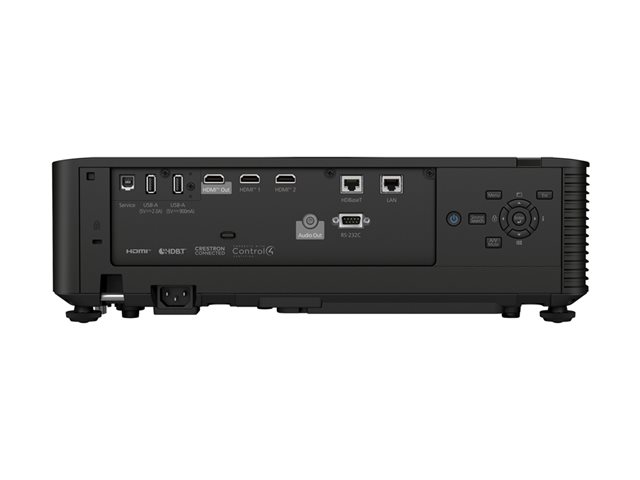

2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B (management) ¦ 1 x serial RS-232C ¦ 1 x network - RJ-45 ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 2 x HDMI - 19 pin HDMI Type A ¦ 1 x HDBaseT ¦ 1 x audio line-out - mini-phone stereo 3.5 mm

Miscellaneous

Included Accessories

Remote control, batteries

Security Features

Security lock slot (cable lock sold separately), password protection, Wireless LAN Lock, padlock

Security Slot Type

Kensington security slot

Compliant Standards

ISO 21118

Environmental Standards

TCO Certified

TCO Certified Projectors 9

Power

Power Source

Voltage Required

AC 100-240 V (50 - 60 Hz)

Power Consumption Operational

336 Watt

Power Consumption Stand by

0.4 Watt

Dimensions & Weight

Width

44 cm

Depth

36.2 cm

Height

15.1 cm

Weight

8.9 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

60 °C

Humidity Range Operating

20 - 80%

Sound Emission

34 dB

Sound Emission (Economic Mode)

25 dB
