Epson EB-685Wi - 3LCD projector - LAN - grey, whit

Images Manuals

Images for illustrative purposes

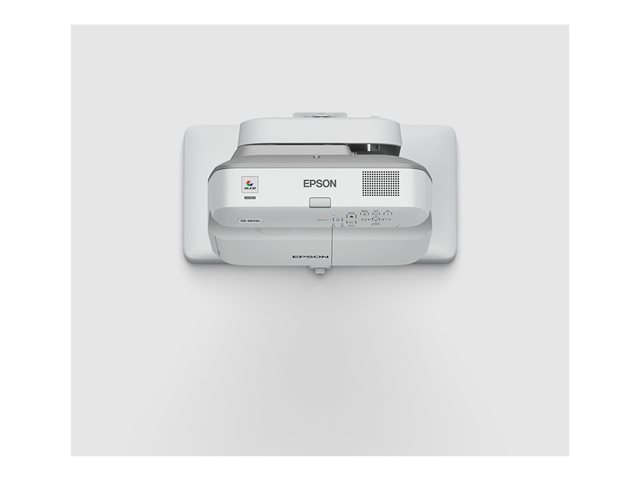

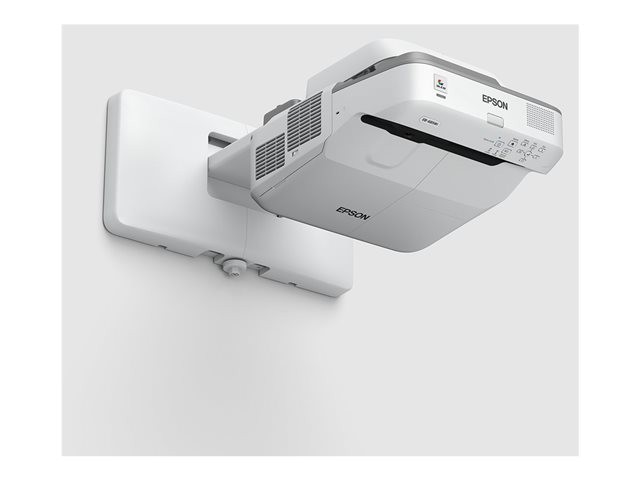

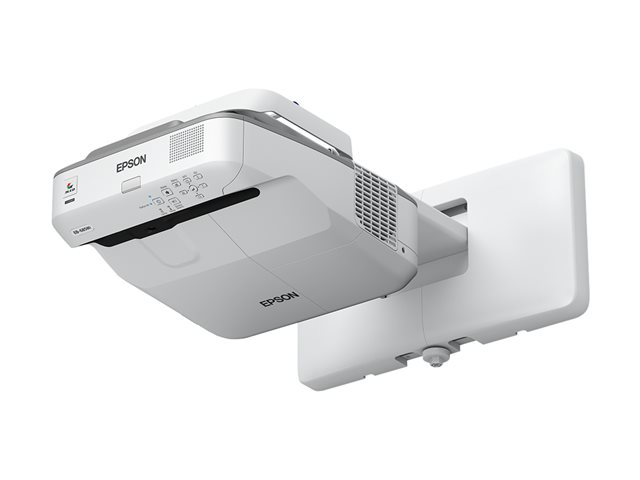

Epson EB-685Wi

View all EPSON LCD Projectors - Visit the EPSON Store (V11H741541) - (ECE12249670)

EB-685Wi - 3LCD projector - 3500 lumens (white) - 3500 lumens (colour) - 16:10 - LAN - grey, white

High-definition visuals
Versatile connectivity
Advanced projection features
Eco-friendly and economical
Easy setup and security

FREE Delivery on orders over €250

3 Available to Ship
Order within 2Hrs 47Mins for: FREE Delivery (8 Jun or 9 Jun)

€1369.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Epson EB-685Wi is an advanced 3LCD projector designed to deliver high-definition visuals and interactive presentations. With a brightness of 3500 lumens and a color support of 1.07 billion colors, it produces vibrant and clear images that can captivate any audience. The projector offers a dynamic contrast ratio of 14,000:1, ensuring rich, detailed visuals across a wide spectrum of lighting conditions.

Its extensive connectivity options, including HDMI, VGA, composite video, and USB 2.0, make it highly versatile and compatible with a broad range of devices. The EB-685Wi is not just powerful but also economical, with a lamp life of up to 10,000 hours in economic mode, reducing maintenance costs over its lifespan. Equipped with advanced features such as automatic brightness adjustment, Blackboard Mode, and Whiteboard Mode, it is an ideal solution for educational settings, corporate environments, and anywhere in between. The inclusion of EPSON 3LCD technology further enhances its performance, delivering consistent, true-to-life images that are essential for effective presentations.

Features Summary

High-definition visuals
With a native resolution of 1280 x 800 and support for 1.07 billion colors, the EB-685Wi delivers high-definition visuals, making it suitable for presentations and multimedia. Its WXGA display resolution abbreviation ensures crisp, clear images that can enhance any presentation.
Versatile connectivity
The EB-685Wi offers a wide range of connectivity options, including HDMI, VGA, composite video, and USB 2.0, making it easy to connect to a variety of devices. Its compatibility with both Mac and PC, along with support for mobile high-definition link (MHL), ensures seamless integration into any setup.
Advanced projection features
Equipped with EPSON 3LCD technology, the projector offers superior image quality with dynamic lamp control and automatic brightness adjustment. Features like Blackboard Mode, Whiteboard Mode, and Split Screen provide flexibility for educational and professional environments, enhancing interactivity and engagement.
Eco-friendly and economical
The projector's lamp life cycle extends up to 10,000 hours in economic mode, reducing the need for frequent replacements and offering a cost-effective solution for schools and businesses. Its dynamic contrast ratio of 14,000:1 ensures vibrant images while conserving energy.
Easy setup and security
With manual focus and both horizontal and vertical keystone correction, setting up the EB-685Wi is straightforward, ensuring a perfect image alignment. Additionally, the included mounting kit and password protection feature provide convenience and security, making it a suitable choice for various settings.

Specification Summary

Product Description

Epson EB-685Wi - 3LCD projector - LAN - grey, white

Device Type

3LCD projector

Colour

Grey, white

Built-in Devices

Speaker, 0.59-inch LCD

Brightness (White)

3500 lumens

Brightness (Colour)

3500 lumens

Contrast Ratio

14000:1 (dynamic)

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Bulb type

250 Watt

Bulb life cycle

Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode

Video Input

LAN

Speakers

Speaker(s) - integrated

Power

AC 100-240 V (50 - 60 Hz)

Power Consumption Operational

354 Watt

Dimensions (WxDxH)

36.7 cm x 40 cm x 14.9 cm

Weight

5.9 kg

Specifications

EAN / GTIN:

8715946747262

General

Device Type

3LCD projector

Built-in Devices

Speaker, 0.59-inch LCD

Networking

Ethernet

Enclosure Colour

Grey, white

Projector

Brightness (White)

3500 lumens

Brightness (Colour)

3500 lumens

Brightness (Reduced)

2900 lumens

Contrast Ratio

14000:1 (dynamic)

Image Size

152 cm - 254 cm

Projection Distance

0.4 m - 0.6 m

Throw Ratio

0.28 - 0.37:1

Digital Zoom Factor

1.35x

Resolution

WXGA

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Max Sync Rate (V x H)

120 Hz

Bulb type

250 Watt

Bulb life cycle

Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode

Controls & Adjustments

Offset

Features

Blackboard Mode, Cinema Mode, Dynamic Mode, Presentation Mode, sRGB Mode, Whiteboard Mode, AMX Control System, Crestron Connected, Control4 Certified, AV mute, Auto Calibration, Automatic Brightness Adjustment, Auto Input Search, CEC compatible, Optional User Logo, Direct Power On, Direct Power Off, document camera compatible, Dynamic Lamp Control, Split Screen

Lens

Focus Type

Manual

Lens Aperture

F/1.6

Keystone Correction Direction

Horizontal, vertical

Vertical Keystone Correction

-3 / +3

Horizontal Keystone Correction

-3 / +3

Video Input

Video Interfaces

VGA, HDMI, composite video, MHL

LAN and Wireless Image Transferring Protocols

Wired LAN

Speakers

Type

Integrated

Output Power / Channel

16 Watt

Expansion / Connectivity

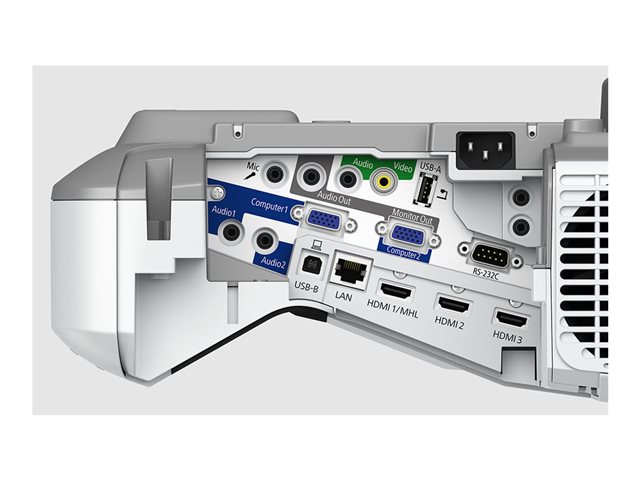

Interfaces

2 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x Mobile High-Definition Link (MHL) / HDMI ¦ 3 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 1 x Sync in ¦ 1 x Sync out

Miscellaneous

Included Accessories

2 x pen tips (teflon), 2 x pen tips, corner markers, pen tray, interactive pens, remote control, battery for remote control, safety wire

Cables Included

1 x USB cable

Mounting Kit

Required

Security Features

Security lock slot (cable lock sold separately), password protection, Wireless LAN security

Security Slot Type

Kensington security slot

Compliant Standards

ISO 21118:2020

Power

Power Source

Voltage Required

AC 100-240 V (50 - 60 Hz)

Power Consumption Operational

354 Watt

Power Consumption Stand by

0.37 Watt

Software / System Requirements

Software Included

Epson Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management Software, Epson iProjection

Dimensions & Weight

Width

36.7 cm

Depth

40 cm

Height

14.9 cm

Weight

5.9 kg

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80%

Sound Emission

35 dBA

Sound Emission (Economic Mode)

30 dBA
