Startech 10-Port Industrial USB 2.0 Hub, Rugged US

Images Manuals

Startech 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport US

Images for illustrative purposes

Startech 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport US

View all STARTECH.COM Hubs - Visit the STARTECH.COM Store (USB210AIND-USB-A-HUB) - (MMECF93011)

Startech 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport USB Hub with Locking Ports - Metal Construction (USB210AIND-USB-A-HUB) -

Rugged Construction
Connect 10 USB Type-A USB Devices
Compatibility

FREE Delivery on orders over €250

25 Available to Ship
Order within 20Hrs 45Mins for: Delivery (13 Aug or 14 Aug)

RRP ~~€69.34~~

€53.97 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

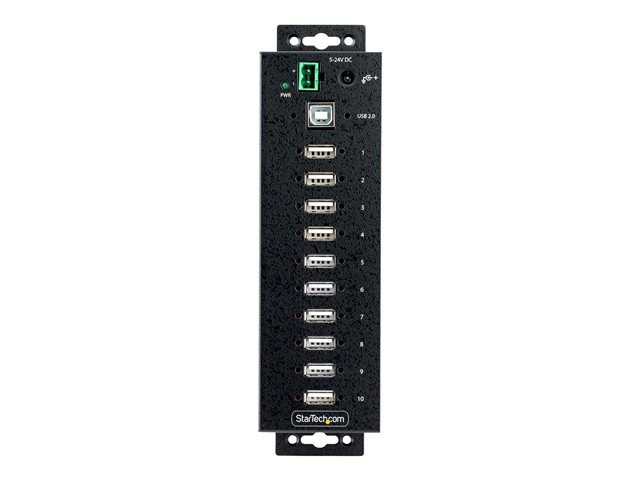

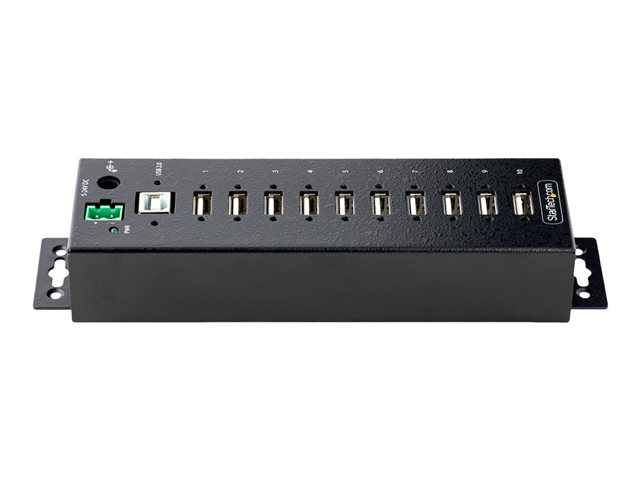

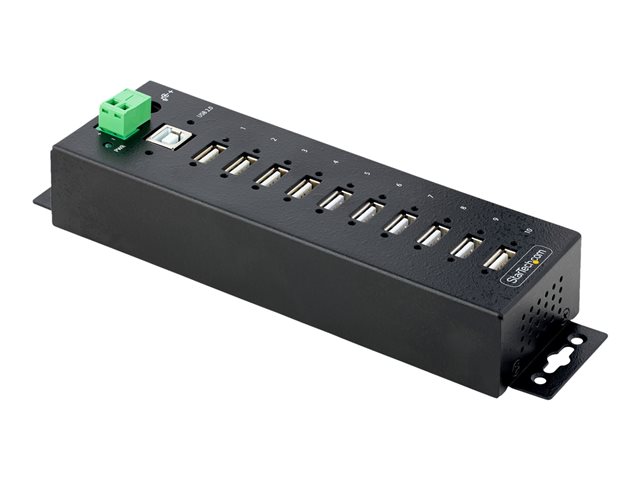

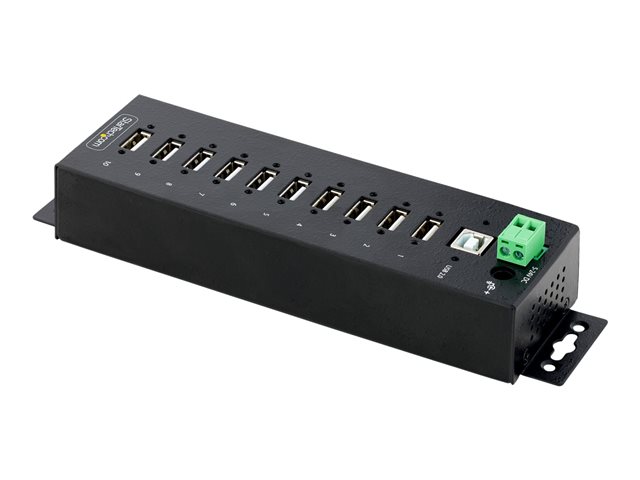

This TAA-compliant 10-port industrial USB 2.0 Hub delivers scalability and protection in harsh industrial environments by providing a high number of USB ports with ESD level 4 protection. The durable metal housing construction is ideal for industrial applications. For power connectivity, the Hub features power redundancy using the DC barrel plug and terminal block port. Finish the installation by mounting the Hub to a DIN rail using the included hardware or on a desk or wall with the built-in mounting brackets.

Specification Summary

Product Description

Device Type

Hub - 10 ports

Subtype

USB

Ports

10 x USB 2.0

Features

8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), steel housing, integrated mounting bracket, lockable ports

Compliant Standards

USB 1.1, USB 2.0

Dimensions (WxDxH)

5.6 cm x 19.8 cm x 3.1 cm

Weight

340 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030894616

General

Device Type

Hub - 10 ports

Enclosure Type

Desktop, DIN rail mountable, wall-mountable

Subtype

USB

Ports

10 x USB 2.0

Features

8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), steel housing, integrated mounting bracket, lockable ports

Compliant Standards

USB 1.1, USB 2.0

Processor

X Terminus Tech FE2.1

Status Indicators

Power

Expansion / Connectivity

Interfaces

10 x USB 2.0 Type A ¦ 1 x USB 2.0 Type B host ¦ 1 x terminal block

Miscellaneous

Colour

Black

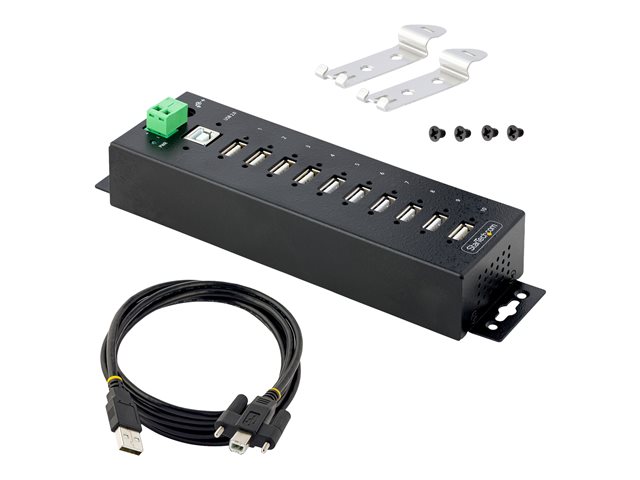

Included Accessories

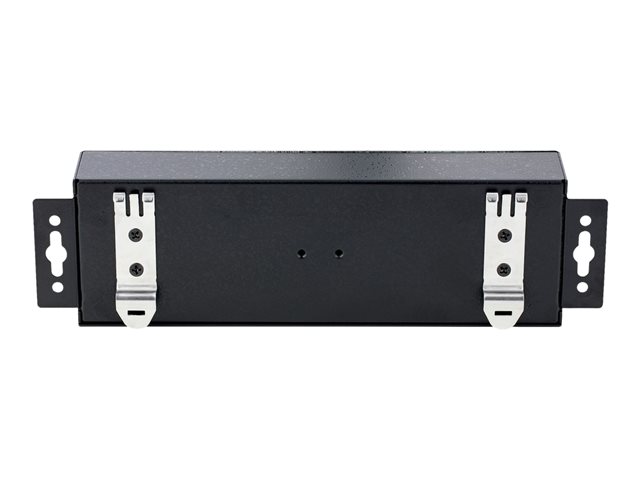

Mounting screws, 2 DIN-rail mounting brackets

Cables Included

1 x USB-B to USB-A screw-lock cable - 1.8 m

Compliant Standards

WEEE, RCM

TAA Compliant

Yes

Dimensions & Weight

Width

5.6 cm

Depth

19.8 cm

Height

3.1 cm

Weight

340 g

Dimensions & Weight (Shipping)

Shipping Width

16.8 cm

Shipping Depth

24.5 cm

Shipping Height

5.5 cm

Shipping Weight

600 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years ¦ Technical support - assistance - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95% RH

Min Storage Temperature

-20 °C

Max Storage Temperature

75 °C
