Device Type

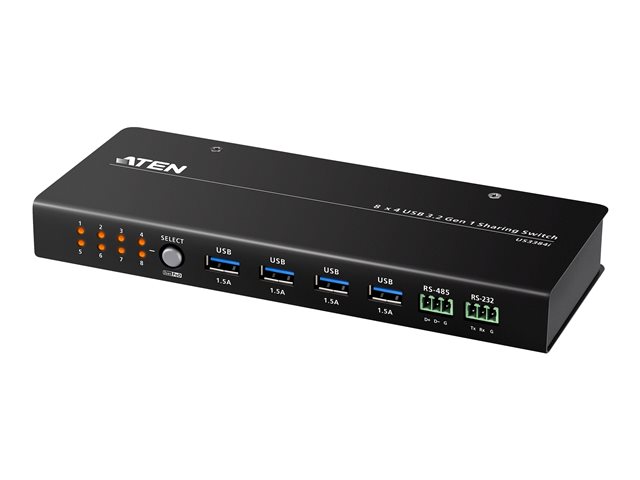

USB peripheral sharing switch - 8 x 4
Enclosure Type
Desktop, wall-mountable
Performance
Data transfer rate: 5 Gbps
Features
Power on detection, push button, LED status indicators, Remote Port Selector, metal housing, hot-pluggable, over-voltage protection
Compliant Standards
USB 3.2 Gen 1
Status Indicators
Port status
Interfaces
4 x USB 3.2 Gen 1 Type A ¦ 8 x USB 3.2 Gen 1 Type B ¦ 1 x serial (RS-232) terminal block ¦ 1 x serial (RS-485) terminal block
Voltage Required
DC 9 - 24 V
Included Accessories
Foot pad set, terminal block adapter set, mounting kit, power adapter
Cables Included
8 x USB 3.2 Gen 1 Type A to Type B cable - 1.2 m
Compliant Standards
Plug and Play
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 80% RH (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
