Eaton Tripp Lite Series USB-C Dock, Triple Display

Images Manuals

Images for illustrative purposes

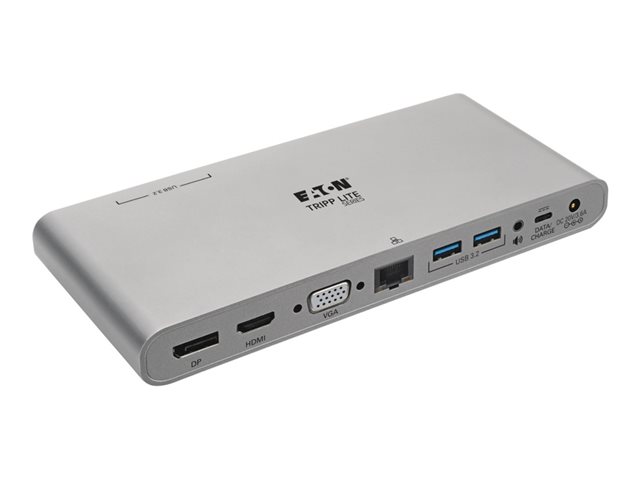

Eaton Tripp Lite Series USB-C Dock, Triple Display

View all Tripp Lite Docking | Replicator - Visit the Tripp Lite Store (U442-DOCK4-INT) - (ECE7747914)

Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.2 Gen 1, USB-A/USB-C Hub, GbE, 100W PD Charging, International Power Cables - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - VGA, HDMI, DP - 1GbE

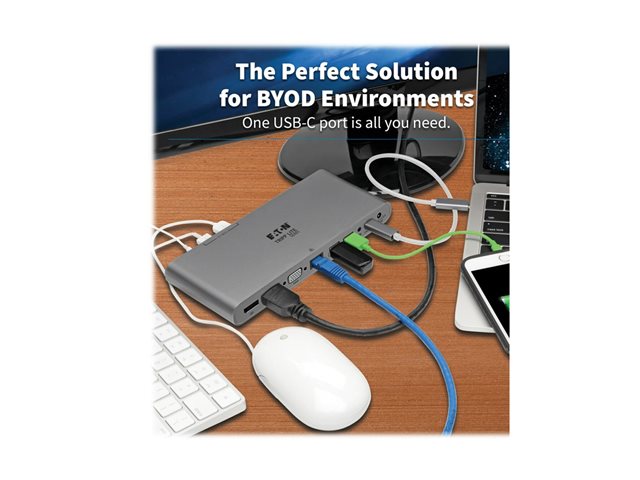

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Workstation
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
Transmits Crystal-Clear 4K Video and Digital Audio
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

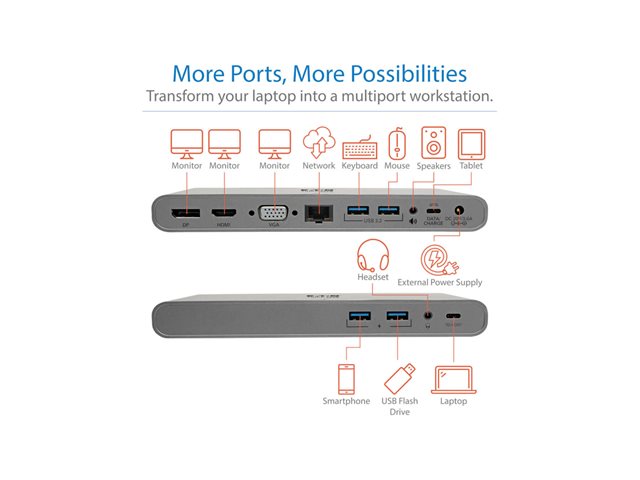

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
View More
Accesses a Wired Gigabit Ethernet Network
Connects Speakers, Microphone and Other Audio Equipment
Ready to Use Right Out of the Package

FREE Delivery on orders over €250

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€182.09 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.x (5Gbps), USB-A/C Hub Ports, GbE, 100W PD Charging, EU/UK Power Supply.

Specification Summary

Product Description

Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.2 Gen 1, USB-A/USB-C Hub, GbE, 100W PD Charging, International Power Cables - docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - VGA, HDMI, DP - 1GbE

Product Type

Docking station

Docking Interface

USB-C 3.2 Gen 1 / Thunderbolt 3

Video Interfaces

VGA, HDMI, DP

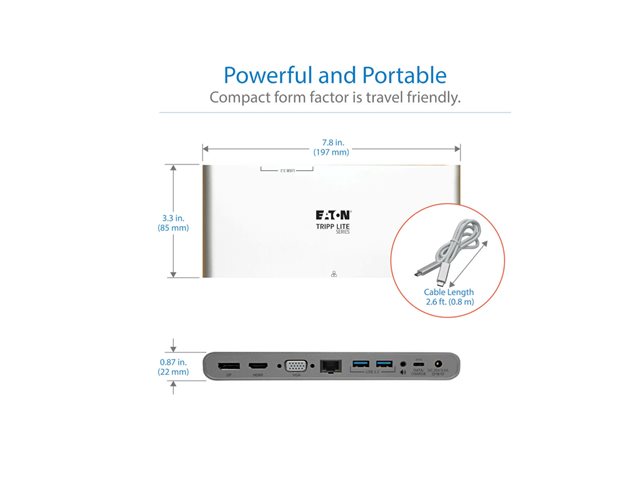

Dimensions (WxDxH)

19.8 cm x 8.38 cm x 2.21 cm

Weight

426 g

Colour

Silver

Networking

Gigabit Ethernet

Power

Power adapter AC 100-240 V (50/60 Hz)

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0037332273062

General

Product Type

Docking station

Width

19.8 cm

Depth

8.38 cm

Height

2.21 cm

Weight

426 g

Enclosure Colour

Silver

Video

Max Resolution Details

3840 x 2160 - 30 Hz

Networking

Data Link Protocol

Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az

Expansion / Connectivity

Interfaces

1 x audio / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x video - VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x network - 1000Base-T - RJ-45 ¦ 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 1 x USB-C 3.2 Gen 1 with Power Delivery 3.0 (100 W) - 24 pin USB-C ¦ 1 x headset - input / output - mini-phone stereo 3.5 mm ¦ 1 x USB-C / Thunderbolt 3 - 24 pin USB-C

Miscellaneous

Cables Included

1 x USB-C cable - external - 80 cm

Features

Full duplex support, suspend mode support, auto MDIX support, remote wakeup support, box package, 4:4:4 chroma subsampling, 36-bit True Colour

Compliant Standards

GS, LPS, TUV, WEEE, cUL, RoHS, REACH, FCC, HDCP 1.4, DisplayPort 1.2

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V (50/60 Hz)

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

19.6 cm

Shipping Depth

12.4 cm

Shipping Height

5.6 cm

Shipping Weight

1.32 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C
