ALOGIC USB-C Super Dock - docking station - USB-C

Images Manuals

Images for illustrative purposes

ALOGIC USB-C Super Dock

View all ALOGIC Docking | Replicator - Visit the ALOGIC Store (U2CSH-SGR) - (MMECF51865)

USB-C Super Dock - docking station - USB-C / Thunderbolt 3 - 2 x HDMI - 1GbE

Universal compatibility
Compact and portable design

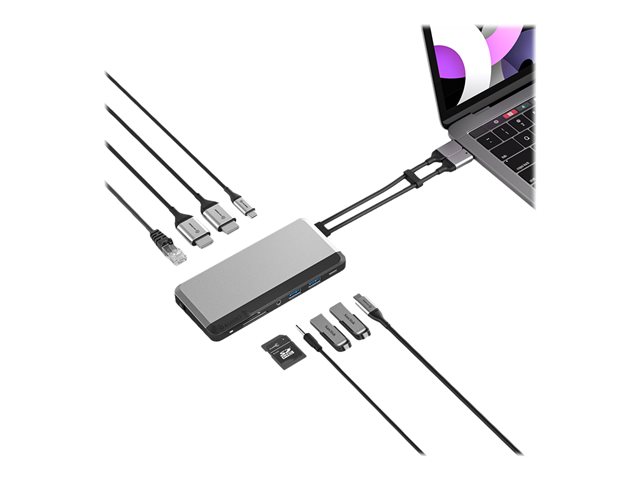

Comprehensive connectivity

FREE Delivery on orders over €250

15 Available to Ship
Order within 2 Days 23Hrs 1Mins for: Delivery (12 Aug or 13 Aug)

€99.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

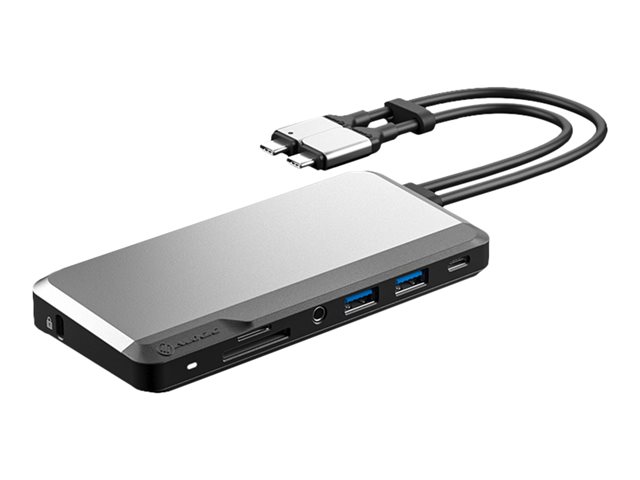

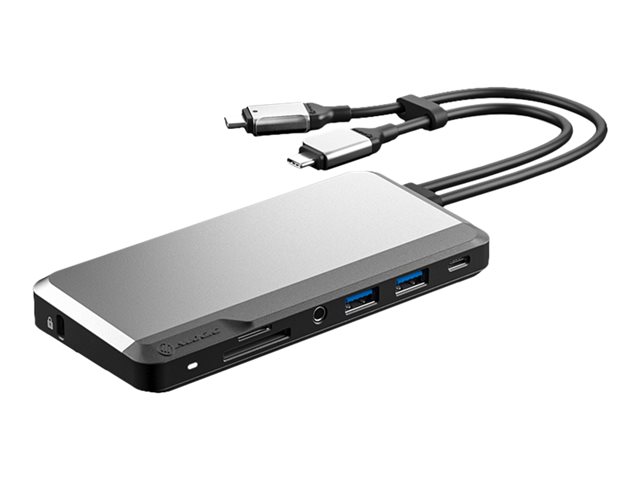

The Super Dock features twin upstream USB-C cables to provide support for a wide range of computers. The twin USB-C cables are designed for ultimate flexibility and universal compatibility across all USB-C devices. The two USB-C connectors are magnetic and can be connected or detached as required giving the flexibility to use the dock with any USB-C (or Thunderbolt 3) enabled device.

Of the two upstream USB-C cables on the Super Dock, one is a primary and the other a secondary connection. When used with Windows computers, the dock will operate with only the primary cable connected and will power a dual monitor setup and other connected accessories. Both the primary and secondary cables can be used with Windows computers enabled with dual USB-C outputs for the best performance and resolution support.

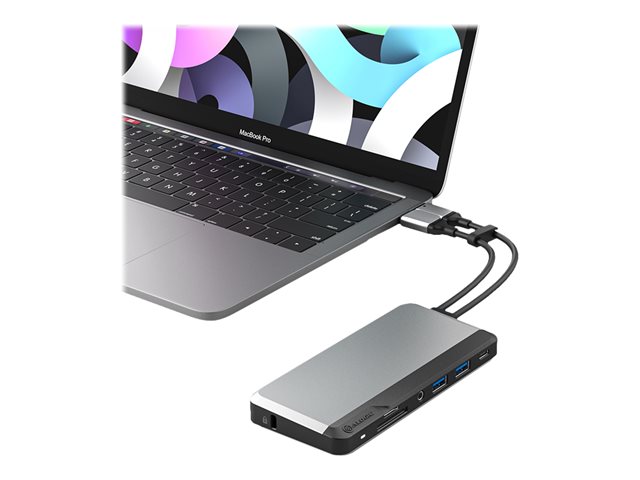

The dock is designed to be a natural extension of your Macbook Pro/Air. The twin magnetic connectors are especially designed to match the dual USB-C (Thunderbolt 3) outputs on the Macbook Pro/Air. The dock performs at its best with support for dual 4K displays and all other accessories with Macs when both the USB-C connectors are plugged in.

Specification Summary

Product Description

ALOGIC USB-C Super Dock - docking station - USB-C / Thunderbolt 3 - 2 x HDMI - 1GbE

Product Type

Docking station

Docking Interface

USB-C / Thunderbolt 3

Video Interfaces

2 x HDMI

Dimensions (WxDxH)

13.8 cm x 6.2 cm x 1.6 cm

Weight

150 g

Colour

Space grey

Networking

Gigabit Ethernet

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

9350784019905

General

Product Type

Docking station

Width

13.8 cm

Depth

6.2 cm

Height

1.6 cm

Weight

150 g

Enclosure Colour

Space grey

Video

Max Resolution Details

3840 x 2160 - 60 Hz (HDMI only)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD

Interfaces

1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 1 (data only) - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A

Miscellaneous

Features

Aluminum enclosure, dual display support, 100W power delivery, USB port with passthrough

System Requirements

OS Required

Apple MacOS, Google Chrome OS, Windows 10

Manufacturer Warranty

Service & Support

Limited warranty - 2 years
