AOC U27U3CV - Graphic Pro Series - LED monitor - 4

Images Manuals

Images for illustrative purposes

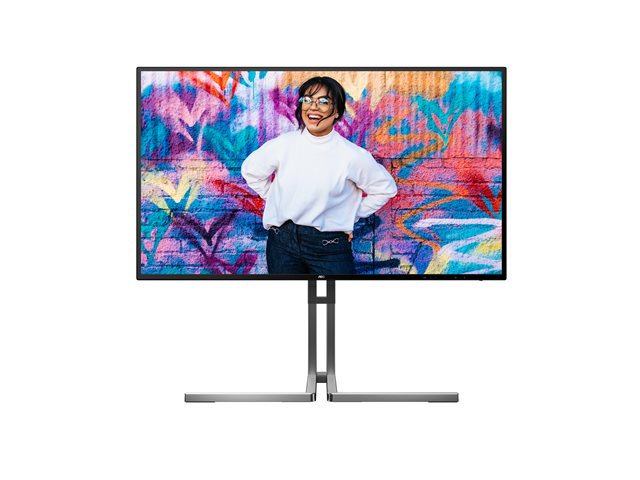

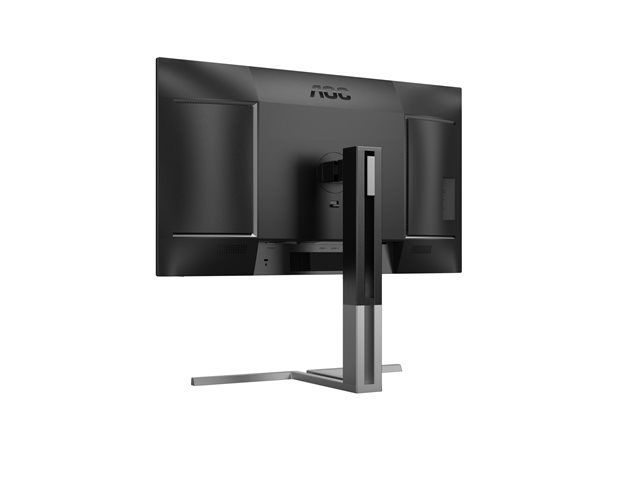

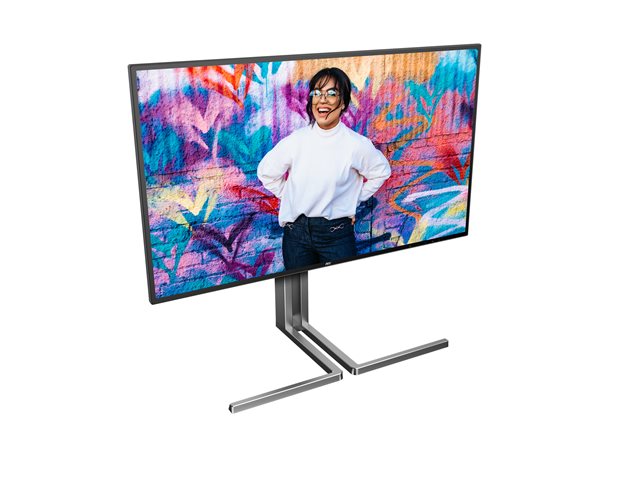

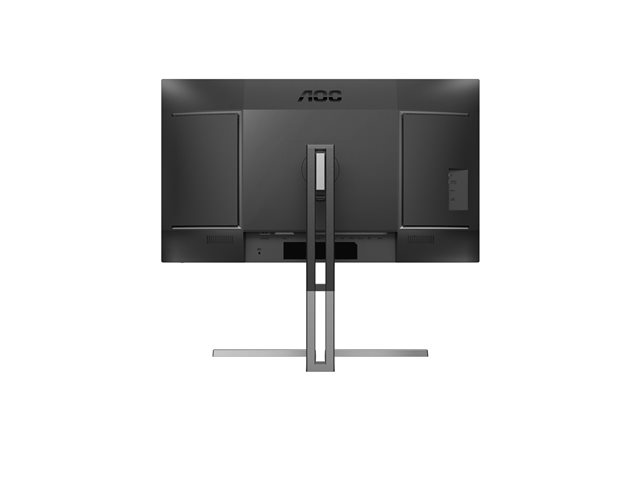

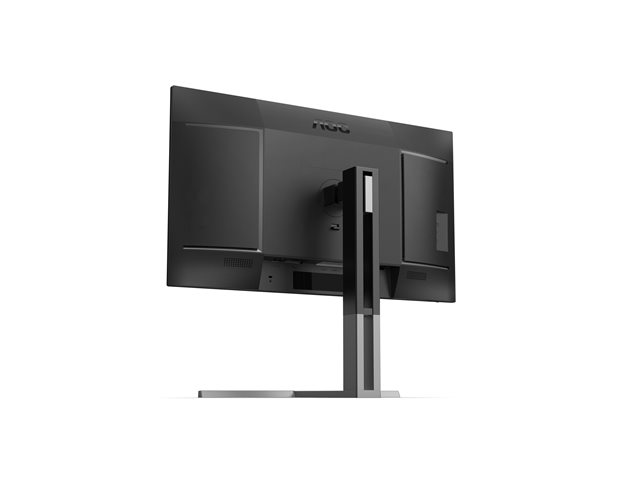

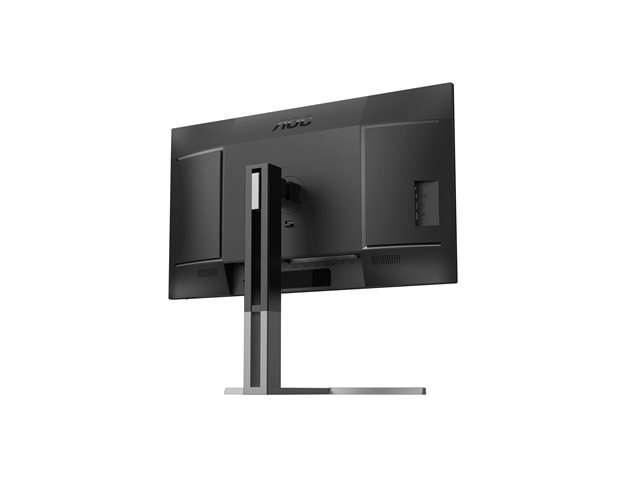

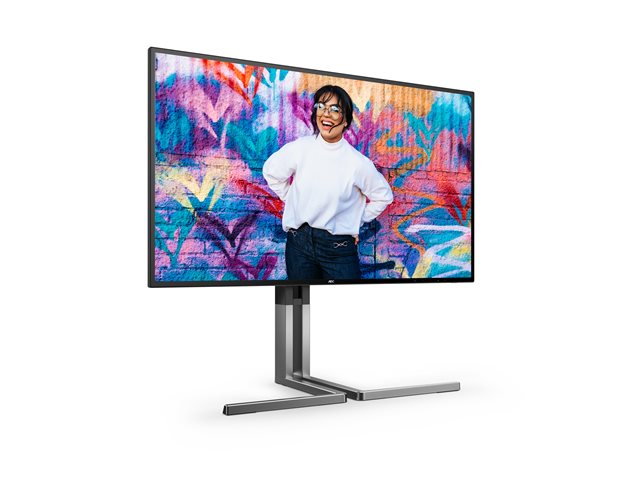

AOC U27U3CV

View all AOC Monitors - Visit the AOC Store (U27U3CV) - (MMECL24716)

U27U3CV - Graphic Pro Series - LED monitor - 4K - 27" - HDR

Graphic Pro
UHD (4K) Resolution
Red Dot Winner 2023
Vesa Certified DisplayHDR 400
USB-C Docking
Calman Ready
View More
Nano IPS
Power Delivery 90W
Delta E<2

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

14 Available to Ship
Order within 10Hrs 4Mins for: FREE Delivery (8 Jun or 9 Jun)

€489.75 Incl Vat

Bulk Pricing from €482.41

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The AOC Graphic Pro U27U3CV delivers exceptional colour accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 colour space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise colour rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals.

Specification Summary

Product Description

AOC U27U3CV - Graphic Pro Series - LED monitor - 4K - 27" - HDR

Device Type

LED-backlit LCD monitor - 27"

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/1910095

Energy Class

Class F

Power Consumption (On mode)

26 W

Adaptive-Sync Technology

AMD Adaptive-Sync

Features

KVM Switch, Gigabit Ethernet network adapter, USB 3.2 Gen 2/USB-C hub, USB PD 96 Watt

Panel Type

Nano IPS

Aspect Ratio

16:9

Native Resolution

4K 3840 x 2160 at 60 Hz

Pixel Pitch

0.1554 mm

Brightness

350 cd/m²

Contrast Ratio

1300:1 / 50000000:1 (dynamic)

HDR Capable

DisplayHDR 400

Response Time

4 ms (grey-to-grey)

Colour Support

1.07 billion colours (8-bit + FRC)

Colour Gamut

135.2% sRGB (CIE 1931), 130.3% sRGB (CIE 1976), 99.7% DCI-P3 (CIE 1931), 103.8% DCI-P3 (CIE 1976), 100.2% Adobe RGB (CIE 1931), 111.6% Adobe RGB (CIE 1976), 95.8% NTSC (CIE 1931), 113.6% NTSC (CIE 1976)

Input Connectors

2xHDMI, DisplayPort, 2xUSB-C

Built-in Ethernet

Yes

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Screen Coating

Anti-glare, 3H Hard Coating, Haze 25%

Voltage

AC 100-240 V (50/60 Hz)

Colour

Black

Dimensions (WxDxH) - with stand (lowest position)

61.27 cm x 23.84 cm x 40.13 cm

Weight

6.54 kg

Environmental Standards

TCO Certified Displays 9

Compliant Standards

Plug and Play, DDC/CI, halogen-free, EPA, USB Power Delivery 3.0

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4038986182072

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/1910095

Energy Class

Class F

Energy Class (HDR)

Class G

Diagonal Size

27"

Adaptive-Sync Technology

AMD Adaptive-Sync

Built-in Devices

KVM Switch, Gigabit Ethernet network adapter, USB 3.2 Gen 2/USB-C hub

USB Power Delivery

96 Watt

Panel Type

Nano IPS

Aspect Ratio

16:9

Native Resolution

4K 3840 x 2160 at 60 Hz

Pixel Pitch

0.1554 mm

Pixel Per Inch

163

Brightness

350 cd/m²

Contrast Ratio

1300:1 / 50000000:1 (dynamic)

HDR Certification

DisplayHDR 400

Colour Support

1.07 billion colours (8-bit + FRC)

Colour Gamut

Response Time

4 ms (grey-to-grey)

Vertical Refresh Rate

40 - 60 Hz

Horizontal Refresh Rate

30 - 140 kHz

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Screen Coating

Anti-glare, 3H Hard Coating, Haze 25%

Backlight Technology

WLED

Features

Picture in picture, picture by picture, Flicker Free technology, Auto Pivot, sRGB Color Space, Delta E<2 calibration, Smart Power technology, Global Dimming, 4-sided frameless

Colour

Black

Dimensions (WxDxH)

61.27 cm x 23.84 cm x 40.13 cm - with stand (lowest position)

Weight

6.54 kg

Audio

Type

Speakers - stereo

Output Power / Channel

3 Watt

Connectivity

Interfaces

2 x HDMI (HDCP 2.2) ¦ DisplayPort 1.4 (HDCP 2.2) ¦ USB-C 3.2 Gen 2 upstream (DisplayPort Alt Mode, data, power up to 96W) ¦ USB-C 3.2 Gen 2 upstream ¦ Network (RJ-45) ¦ USB-C 3.2 Gen 2 downstream (power up to 15W) ¦ 4 x USB 3.2 Gen 2 (Type A) ¦ Audio line-out (mini-jack)

Mechanical

Display Position Adjustments

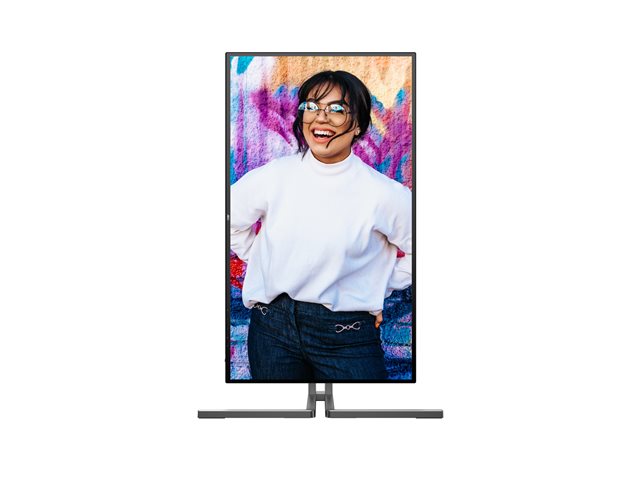

Height, pivot (rotation), swivel, tilt

Tilt Angle

-6.5/+23

Swivel Angle

Rotation Angle

180

Height Adjustment

150 mm

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately), quick release mechanism, 85% post-consumer recycled plastic

Cables Included

1 x HDMI cable - 1.8 m ¦ 1 x DisplayPort cable - 1.8 m ¦ 1 x USB-C to USB-C / USB-A cable - 1.2 m

MTBF

30,000 hour(s)

Compliant Standards

Plug and Play, DDC/CI, halogen-free, EPA, USB Power Delivery 3.0

Security Slot Type

Kensington security slot

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption (On mode)

26 W

Power Consumption SDR (On mode)

26 kWh/1000h

Power Consumption HDR (On mode)

60 kWh/1000h

Power Consumption (Typical)

44 Watt

Power Consumption Stand by

0.3 Watt

Power Consumption (Off Mode)

0.3 Watt

On / Off Switch

Yes

Dimensions & Weight

Dimensions & Weight Details

With stand (lowest position) - width: 61.27 cm - depth: 23.84 cm - height: 40.13 cm - weight: 6.54 kg ¦ With stand (highest position) - width: 61.27 cm - depth: 23.84 cm - height: 54.36 cm - weight: 6.54 kg ¦ Without stand - width: 61.27 cm - depth: 5.125 cm - height: 35.312 cm - weight: 4.85 kg

Dimensions & Weight (Shipping)

Shipping Width

82.5 cm

Shipping Depth

16.2 cm

Shipping Height

48 cm

Shipping Weight

10.2 kg

Sustainability Information

TCO Certified

TCO Certified Displays 9
