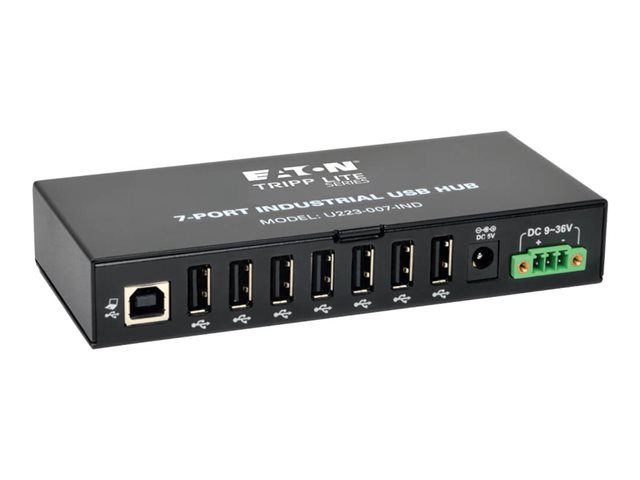

Eaton Tripp Lite series 7-Port Rugged Industrial USB 2.0 Hi-Speed Hub w 15KV ESD Immunity Metal Mountable

Images for illustrative purposes

Eaton Tripp Lite series 7-Port Rugged Industrial USB 2.0 Hi-Speed Hub w 15KV ESD Immunity Metal Mountable

View all EATON Hubs - Visit the EATON Store (U223-007-IND) - (ECE7413177)

Tripp Lite series 7-Port Rugged Industrial USB 2.0 Hi-Speed Hub w 15KV ESD Immunity Metal Mountable - Hub - 7 x USB 2.0 - DIN rail mountable, wall-mountable

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Plug-and-Play Hub Offers Flexible Power and Mounting Options

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€113.12 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

7-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Mountable.

Features Summary

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options

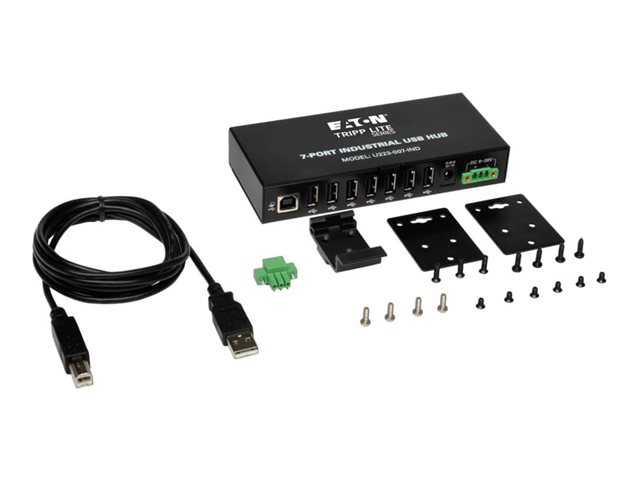

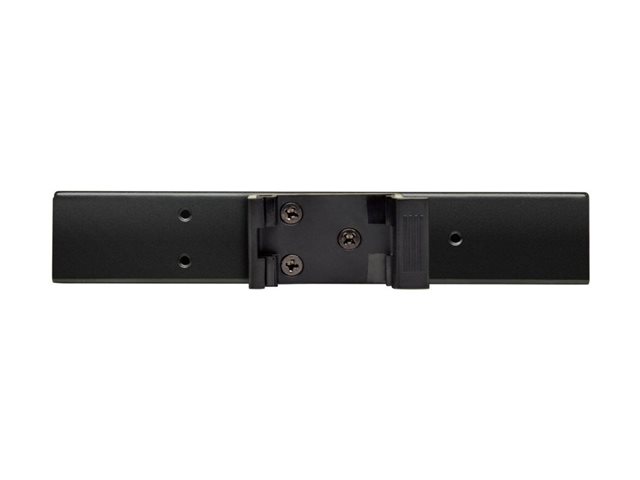

The U223-007-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 5V 3A DC power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Specification Summary

Product Description

Eaton Tripp Lite series 7-Port Rugged Industrial USB 2.0 Hi-Speed Hub w 15KV ESD Immunity Metal Mountable - hub - 7 ports

Device Type

Hub - 7 ports

Subtype

USB

Ports

7 x USB 2.0

Features

USB powered, wall mountable, over-current protection, rugged, DIN rail mountable, metal housing

Compliant Standards

USB 1.1, USB 2.0

Dimensions (WxDxH)

6.36 cm x 14.2 cm x 2.46 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0037332181428

General

Device Type

Hub - 7 ports

Enclosure Type

DIN rail mountable, wall-mountable

Subtype

USB

Ports

7 x USB 2.0

Features

USB powered, wall mountable, over-current protection, rugged, DIN rail mountable, metal housing

Compliant Standards

USB 1.1, USB 2.0

Expansion / Connectivity

Interfaces

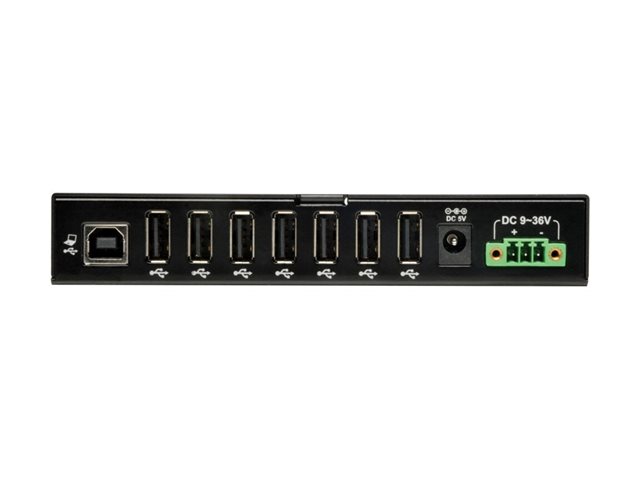

7 x USB 2.0 Type A ¦ 1 x USB 2.0 Type B

Miscellaneous

Included Accessories

3-pin power terminal block

Cables Included

1 x USB cable

Compliant Standards

Plug and Play, FCC Part 15 B, WEEE

Dimensions & Weight

Width

6.36 cm

Depth

14.2 cm

Height

2.46 cm

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%
