Range/Series Overview

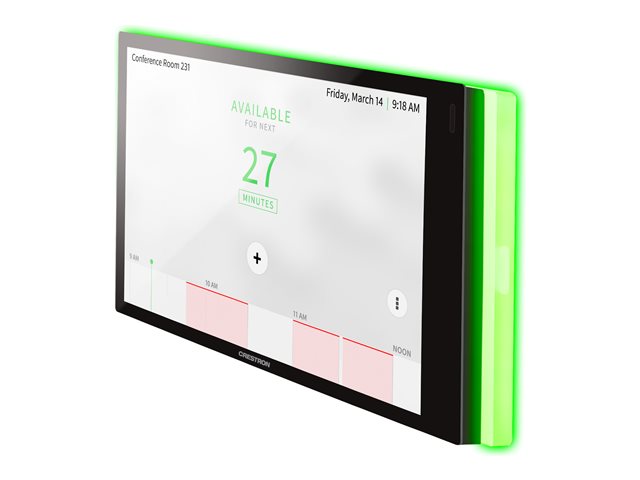

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The Crestron TSW-770-LB is a room availability light bar designed for use with TSW‑770 or TSS‑770 series touch screens. The TSW-770-LB provides a 180° visual indication of a room's availability as part of a complete enterprise room scheduling solution. The TSW-770-LB mounts easily to the rear of the touch screen and illuminates bright green or red to indicate the room availability status, with options for custom color mixing and programming. The TSW-770-LB features a clean, stylish appearance and vivid color illumination that complement any corporate office environment, and it is energy efficient at less than 2 W power consumption.
Features Summary
- Room availability status
For room scheduling applications, the TSW-770-LB simply connects to the touch screen via USB and requires no special programming or configuration. The illumination color is controlled by the room scheduling application, which runs on the touch screen and syncs with the Crestron Fusion software or another room scheduling application. The TSW-770-LB illuminates green when the room is available and red when the room is occupied. It can also blink to indicate an emergency message broadcast from Crestron Fusion. - Custom RGB color mixing
For custom applications, the TSW-770-LB can be configured to illuminate in almost any desired color. The TSW-770-LB features tricolor RGB LEDs that allow for a full spectrum of colors by blending the red, green, and blue elements in 1% increments. Custom RGB color mixing is performed either through the touch screen directly or via custom control system programming. A Crestron control system connected to the touch screen can be programmed to support various functionality, enabling colors to alternate, fade in and out, or blink on and off as desired. - Versatile mounting options
The TSW-770-LB is compatible with various TSW‑70 series mounting solutions to support installations common for room scheduling touch screens.
Specification Summary
Product Description
Crestron TSW-770-LB-B-S - meeting room availability light bar - smooth black
Product Type
Meeting room availability light bar
Dimensions (WxDxH)
17.9 cm x 5.7 cm x 10.6 cm
