Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

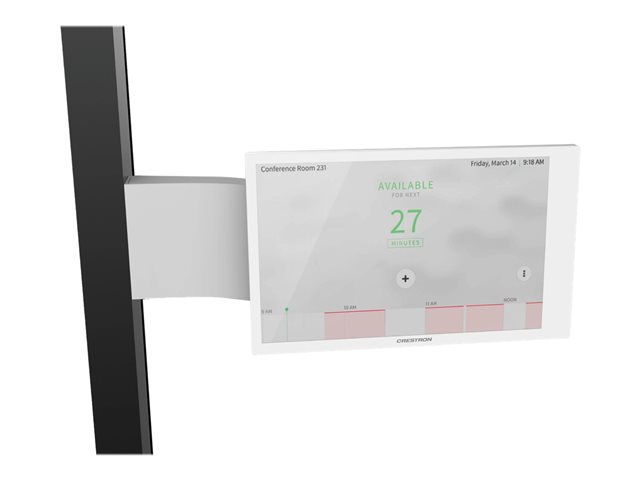

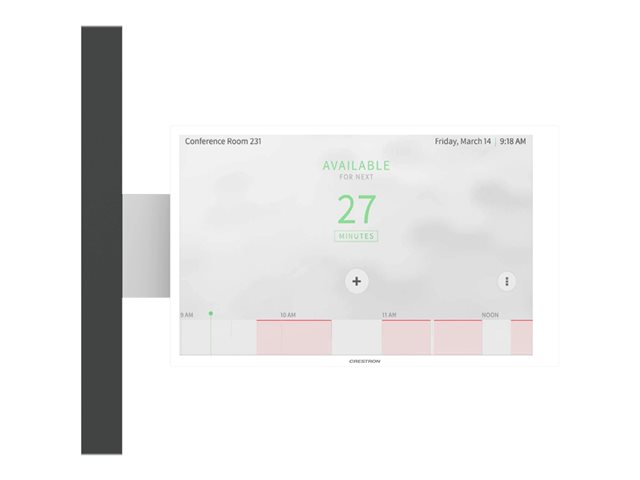

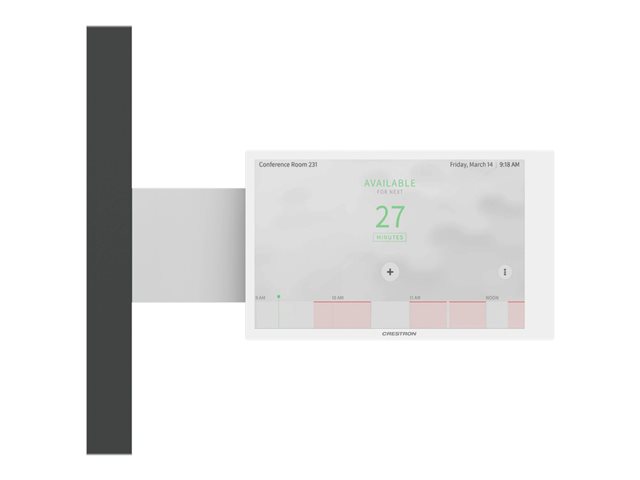

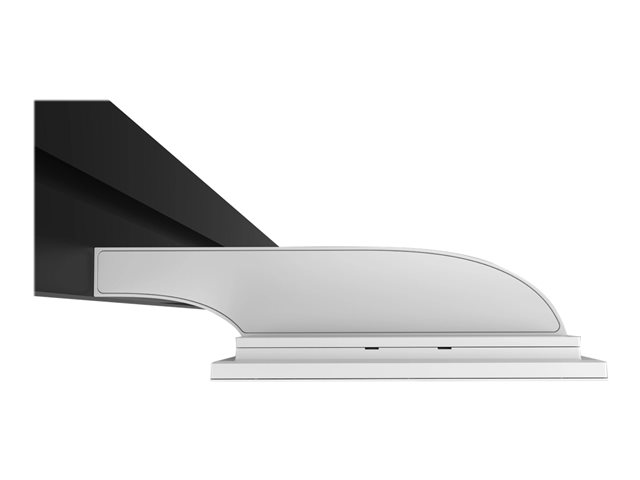

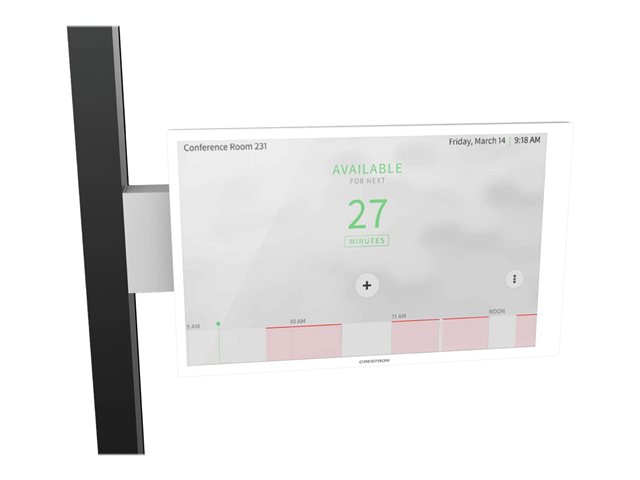

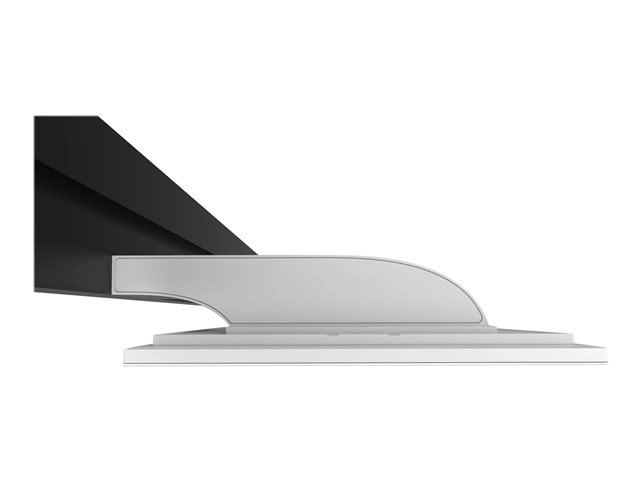

The TSW-770/1070-MUMK permits a TSW-770, TSW-1070, TSS-770, or TSS-1070 series touch screen touch screen to be attached to the mullion of an interior glass wall, window, or partition. The TSW-770/1070-MUMK mounts a compatible touch screen to the left or right of any hollow, metallic vertical mullion. Two mounting brackets are provided that allow the TSW-770/1070-MUMK to be installed in one of two configurations (side mount or front mount). Wiring is run to the touch screen from inside the mullion to create a clean, finished appearance. TAA compliant.
Specification Summary
Product Description
Crestron TSW-770/1070-MUMK-W mounting kit - for touch screen - white
Product Type
Mounting kit - glass-mounted, surface mountable, wall-mountable
Mounting Components
Bracket
Dimensions (WxDxH)
22.8 cm x 4.3 cm x 6.4 cm
Recommended Use
Touch screen
Material
Aluminium, steel
Designed For
Crestron TSW-1070-MSMK-B-S, TSW-1070-MSMK-W-S, TSW-770/1070-MUMK-B; Touch Screen TSW-770-B-S, TSW-770-W-S
