Crestron TSW-1070-LB-W-S

Name: Crestron TSW-1070-LB-W-S
Brand: CRESTRON ELECTRONICS
SKU: ECE9824941
Price: 256.69 EUR
Availability: OutOfStock

View all CRESTRON ELECTRONICS Home Automations - Visit the CRESTRON ELECTRONICS Store (TSW-1070-LB-W-S) - (ECE9824941)

Model: Crestron

Crestron TSW-1070-LB-W-S - Meeting room availability light bar - wired - USB 2.0 - smooth white

Room availability status
Custom RGB color mixing

FREE Delivery on orders over €250

0 Available to Ship
Restock 11-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€413.28~~

€256.69 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

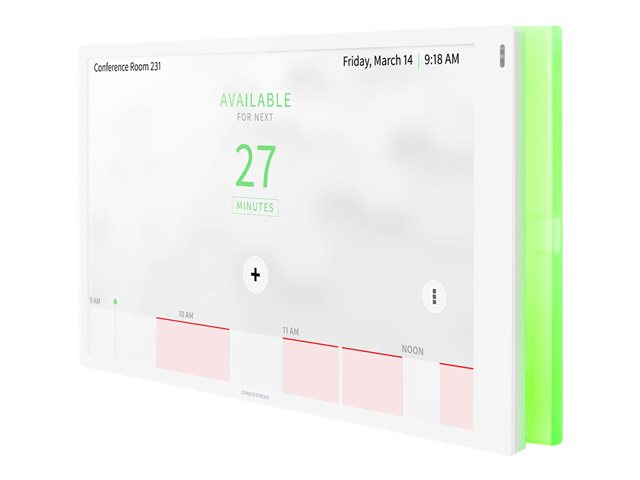

Mounts to a TSW‑1070 or TSS‑1070 series touch screen outside a meeting room to provide a 180° visual indication of the room's availability. Illuminates green if the room is available and red when reserved, with options for custom color mixing and programming.

Features Summary

Room availability status
For room scheduling applications, the TSW-1070-LB simply connects to the touch screen via USB and requires no special programming or configuration. The illumination color is controlled by the room scheduling application, which runs on the touch screen and syncs with the Crestron Fusion software or another room scheduling application. The TSW-1070-LB illuminates green when the room is available and red when the room is occupied. It can also blink to indicate an emergency message broadcast from Crestron Fusion.
Custom RGB color mixing
For custom applications, the TSW-1070-LB can be configured to illuminate in almost any desired color. The TSW-1070-LB features tricolor RGB LEDs that allow for a full spectrum of colors by blending the red, green, and blue elements in 1% increments. Custom RGB color mixing is performed either through the touch screen directly or via custom control system programming. A Crestron control system connected to the touch screen can be programmed to support various functionality, enabling colors to alternate, fade in and out, or blink on and off as desired.

Specification Summary

Product Description

Crestron TSW-1070-LB-W-S - meeting room availability light bar - smooth white

Product Type

Meeting room availability light bar

Connectivity

Wired - USB 2.0

Colour

Smooth white

Manufacturer Warranty

3-year warranty

Dimensions (WxDxH)

25.9 cm x 5.8 cm x 14.8 cm

Designed For

P/N: 6510827

Specifications

EAN / GTIN:

8592978537302

General

Product Type

Meeting room availability light bar

Connectivity Technology

Wired

Interfaces Details

USB 2.0

Features

RGB LED illumination

Miscellaneous

Colour

Smooth white

Warranty

3-year warranty

Compliant Standards

IC, FCC Part 15 Class B

Dimensions & Weight

Width

25.9 cm

Depth

5.8 cm

Height

14.8 cm

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10 - 90% (non-condensing)

Compatibility Information

Designed For

P/N: 6510827
