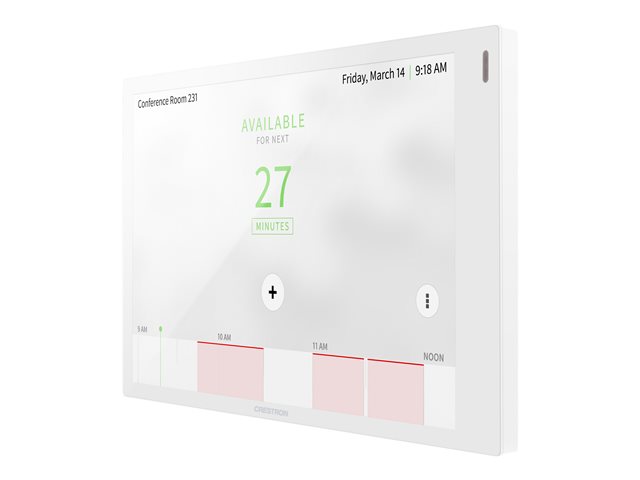

Crestron Room Scheduling Touch Screen TSS-770-W-S

Images Manuals

Images for illustrative purposes

Crestron Room Scheduling Touch Screen TSS-770-W-S

- Visit the CRESTRON ELECTRONICS Store (TSS-770-W-S) - (ECE9738599)

Crestron Room Scheduling Touch Screen TSS-770-W-S - Room manager - wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth white

Functional
Reliable
Secure
Manageable
Cost-effective

FREE Delivery on orders over €250

0 Available to Ship
Restock 12-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€1810.56~~

€1074.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

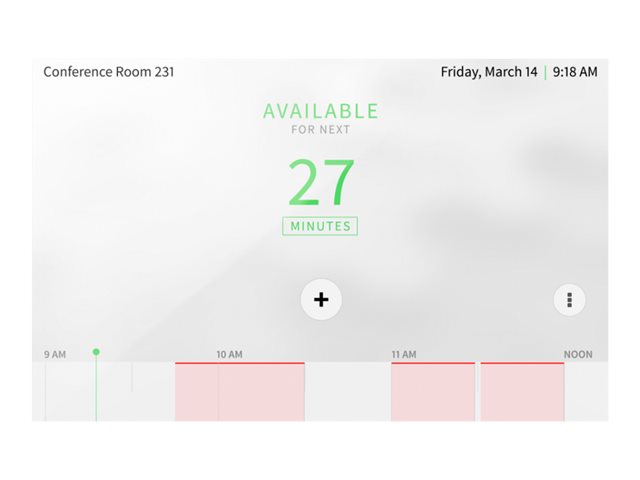

Crestron TSS-770 series touchscreens are designed to enhance and simplify room scheduling across an enterprise. The TSS-770 installs near the entrance of a meeting room or huddle space to provide a clear indication of the room availability and schedule, and it integrates seamlessly with a variety of popular scheduling services.

Features Summary

Functional
The TSS-770 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-770 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi-Fi communications via a local wireless access point (WAP).
Reliable
Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touchscreens are purpose-built for permanent installation and years of reliable 24/7 operation in a commercial environment.
Secure
Crestron touchscreens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.
Manageable
Crestron touchscreens feature cloud-based provisioning and management to streamline the process of configuring and monitoring every touchscreen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
Cost-effective
Crestron touchscreens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-770 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.

Specification Summary

Product Description

Crestron Room Scheduling Touch Screen TSS-770-W-S - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth white

Product Type

Room manager

Integrated Sensors

Proximity sensor

Integrated Components

Speaker, Bluetooth proximity detection beacon

Power Source

PoE

Connectivity

Wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet

Frequency Band

2.4 Ghz, 5 GHz

Input Type

Touch screen

Display

7" - LED - colour

Colour

Smooth white

Dimensions (WxDxH)

17.3 cm x 5.1 cm x 10.6 cm

Specifications

EAN / GTIN:

8592978521059

General

Product Type

Room manager

Integrated Components

Speaker, Bluetooth proximity detection beacon

Integrated Sensors

Proximity sensor

Power Source

PoE

Connectivity Technology

Wireless, wired - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth

Max Range Open Space

15 m

Frequency Band

2.4 Ghz, 5 GHz

Display

7" - LED - colour

Display Resolution

1280 x 800 pixels

Interfaces Details

LAN/power ¦ 2 x USB 2.0

Features

Wall mountable, auto brightness control, capacitive touch screen, reset button, surface mountable, PoE+, cloud managed, auto-negotiation, DHCP support, power over Ethernet (PoE), SSH support, SNMP support, IPv6 support, IPv4 support, half duplex mode, full duplex mode, PoE+

Control Unit

Input Type

Touch screen

Miscellaneous

Included Accessories

Mounting kit

Product Material

Plastic

Colour

Smooth white

Encryption Algorithm

SSL, TLS, 128-bit WEP, 64-bit WEP, WPA, WPA2-PSK, TKIP, AES

Compliant Standards

IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, IC, FCC Part 15 B

Dimensions & Weight

Width

17.3 cm

Depth

5.1 cm

Height

10.6 cm

Weight

400 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 95% (non-condensing)
