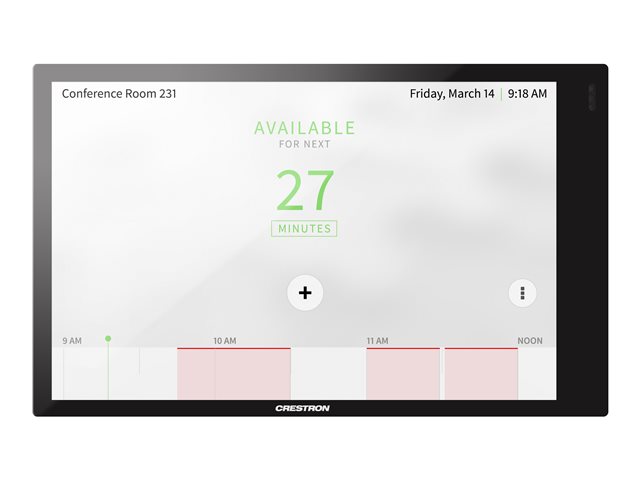

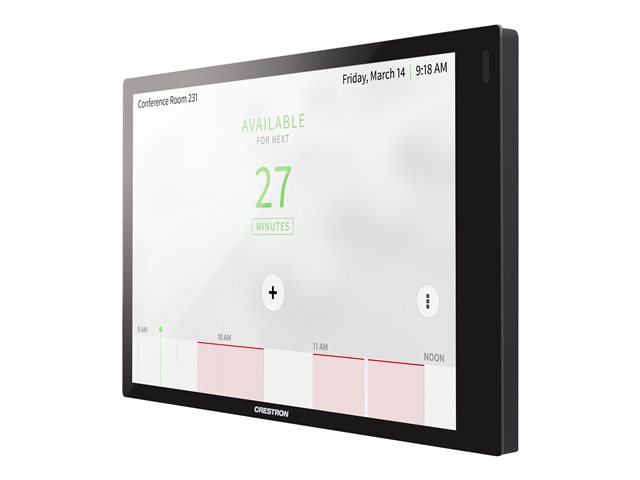

Crestron Room Scheduling Touch Screen TSS-770-B-S

Images Manuals

Images for illustrative purposes

Crestron Room Scheduling Touch Screen TSS-770-B-S

- Visit the CRESTRON ELECTRONICS Store (TSS-770-B-S) - (ECE6759106)

Crestron Room Scheduling Touch Screen TSS-770-B-S - Room manager - wireless, wired - Bluetooth, 802.11a/b/g/n/ac - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth black

Functional
Reliable
Secure
Manageable
Cost-effective

FREE Delivery on orders over €250

0 Available to Ship
Restock 11-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€1810.56~~

€1074.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. The TSS-770 is compatible with Wall-Smart flush wall-mounting accessories.

Specification Summary

Product Description

Crestron Room Scheduling Touch Screen TSS-770-B-S - room manager - Bluetooth, 802.11a/b/g/n/ac - smooth black

Product Type

Room manager wall mount, surface mount

Placing / Mounting

Surface-mounting, wall-mounting

Integrated Components

Speaker, Bluetooth proximity detection beacon

Power Source

PoE

Connectivity

Wireless, wired - Bluetooth, 802.11a/b/g/n/ac - 10/100 Ethernet

Frequency Band

2.4 Ghz, 5 GHz

Input Type

Touch screen

Display

7" - LED - colour - Yes

Colour

Smooth black

Dimensions (WxDxH)

18.5 cm x 5.7 cm x 10.6 cm

Specifications

EAN / GTIN:

8592978371784

General

Product Type

Room manager wall mount, surface mount

Integrated Components

Speaker, Bluetooth proximity detection beacon

Power Source

PoE

Placing / Mounting

Surface-mounting, wall-mounting

Connectivity Technology

Wireless, wired - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Max Range Open Space

15 m

Frequency Band

2.4 Ghz, 5 GHz

Display

7" - LED - colour

Display Resolution

1280 x 800 pixels

Touchscreen

Yes

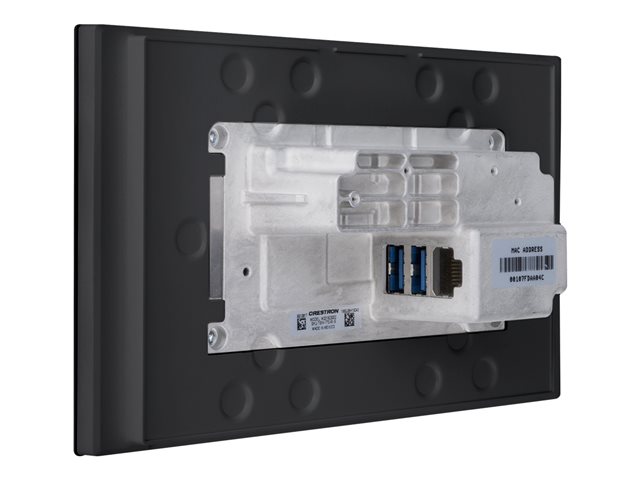

Interfaces Details

LAN/power ¦ 2 x USB 2.0

Features

Reset button, 2-gang, capacitive touch screen, 350 cd/m2 brightness, auto brightness control, 850:1 contrast, PoE+, DHCP support, auto-negotiation, IPv6 support, half duplex mode, full duplex mode, IPv4 support, cloud managed, SNMP support, auto-switching, CIP support, device discovery, UDP support, TCP support

Control Unit

Input Type

Touch screen

Miscellaneous

Included Accessories

Mounting kit

Product Material

Plastic

Colour

Smooth black

Encryption Algorithm

AES, 128-bit WEP, 64-bit WEP, SSL, TLS, TKIP, WPA, WPA2-PSK

Authentication Method

Secure Shell (SSH), Active Directory

Compliant Standards

FCC Part 15 B, IC, IEEE 802.3at, IEEE 802.1x

Dimensions & Weight

Width

18.5 cm

Depth

5.7 cm

Height

10.6 cm

Weight

400 g

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)
