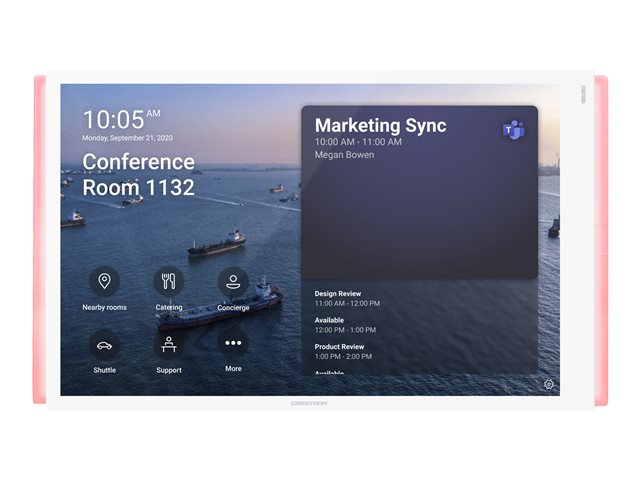

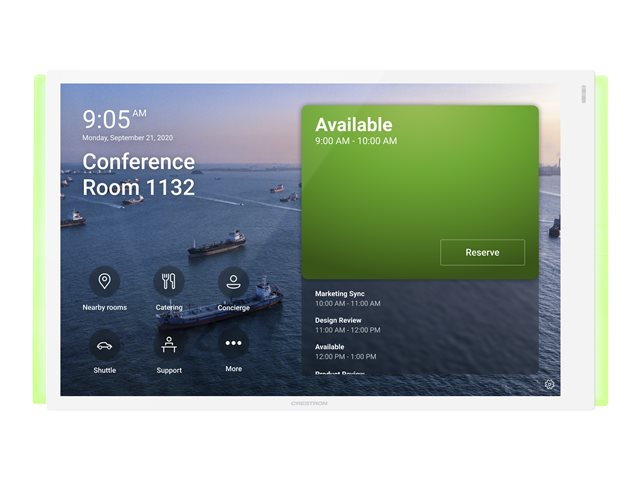

Crestron Room Scheduling Touch Screen TSS-1070-T-W

Images Manuals

Crestron Room Scheduling Touch Screen TSS-1070-T-W-S-LB KIT

Images for illustrative purposes

Crestron Room Scheduling Touch Screen TSS-1070-T-W-S-LB KIT

- Visit the CRESTRON ELECTRONICS Store (TSS-1070-T-W-S-LB KIT) - (ECE6752312)

Crestron Room Scheduling Touch Screen TSS-1070-T-W-S-LB KIT - For Microsoft Teams - room manager - wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth white

Bluetooth beacon
Proximity sensor and brightness controls
Functional
Reliable

FREE Delivery on orders over €250

0 Available to Ship
Restock 19-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€2509.20~~

€1459.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

A stylish and versatile 10.1" wall-mount touch screen designed specifically to run the Microsoft Teams Panels scheduling application. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. Includes one TSW-1070-LB series room availability light bar with the touch screen for a complete room scheduling solution.

Specification Summary

Product Description

Crestron Room Scheduling Touch Screen TSS-1070-T-W-S-LB KIT - for Microsoft Teams - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth white

Product Type

Room manager

Integrated Sensors

Proximity sensor

Integrated Components

Speaker, Bluetooth proximity detection beacon

Power Source

PoE

Package Content

TSW-1070-LB-W-S light bar

Connectivity

Wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet

Frequency Band

2.4 Ghz, 5 GHz

Input Type

Touch screen

Display

10.1" - LED - colour

Colour

Smooth white

Dimensions (WxDxH)

25.9 cm x 5.8 cm x 14.9 cm

Specifications

EAN / GTIN:

8592978328337

General

Product Type

Room manager

Integrated Components

Speaker, Bluetooth proximity detection beacon

Integrated Sensors

Proximity sensor

Power Source

PoE

Package Content

TSW-1070-LB-W-S light bar

Connectivity Technology

Wireless, wired - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth

Max Range Open Space

15 m

Frequency Band

2.4 Ghz, 5 GHz

Display

10.1" - LED - colour

Display Resolution

1920 x 1200 pixels

Interfaces Details

LAN/power ¦ 2 x USB 2.0

Features

Wall mountable, auto brightness control, capacitive touch screen, reset button, surface mountable, 1000:1 contrast, 400 cd/m2 brightness, PoE+, cloud managed, auto-negotiation, DHCP support, power over Ethernet (PoE), SSH support, SNMP support, IPv6 support, IPv4 support, half duplex mode, full duplex mode, PoE+

Control Unit

Input Type

Touch screen

Miscellaneous

Product Material

Plastic

Colour

Smooth white

Encryption Algorithm

SSL, TLS, 128-bit WEP, 64-bit WEP, WPA, WPA2-PSK, TKIP, AES

Compliant Standards

IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, IC, FCC Part 15 B

Dimensions & Weight

Width

25.9 cm

Depth

5.8 cm

Height

14.9 cm

Weight

730 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)
